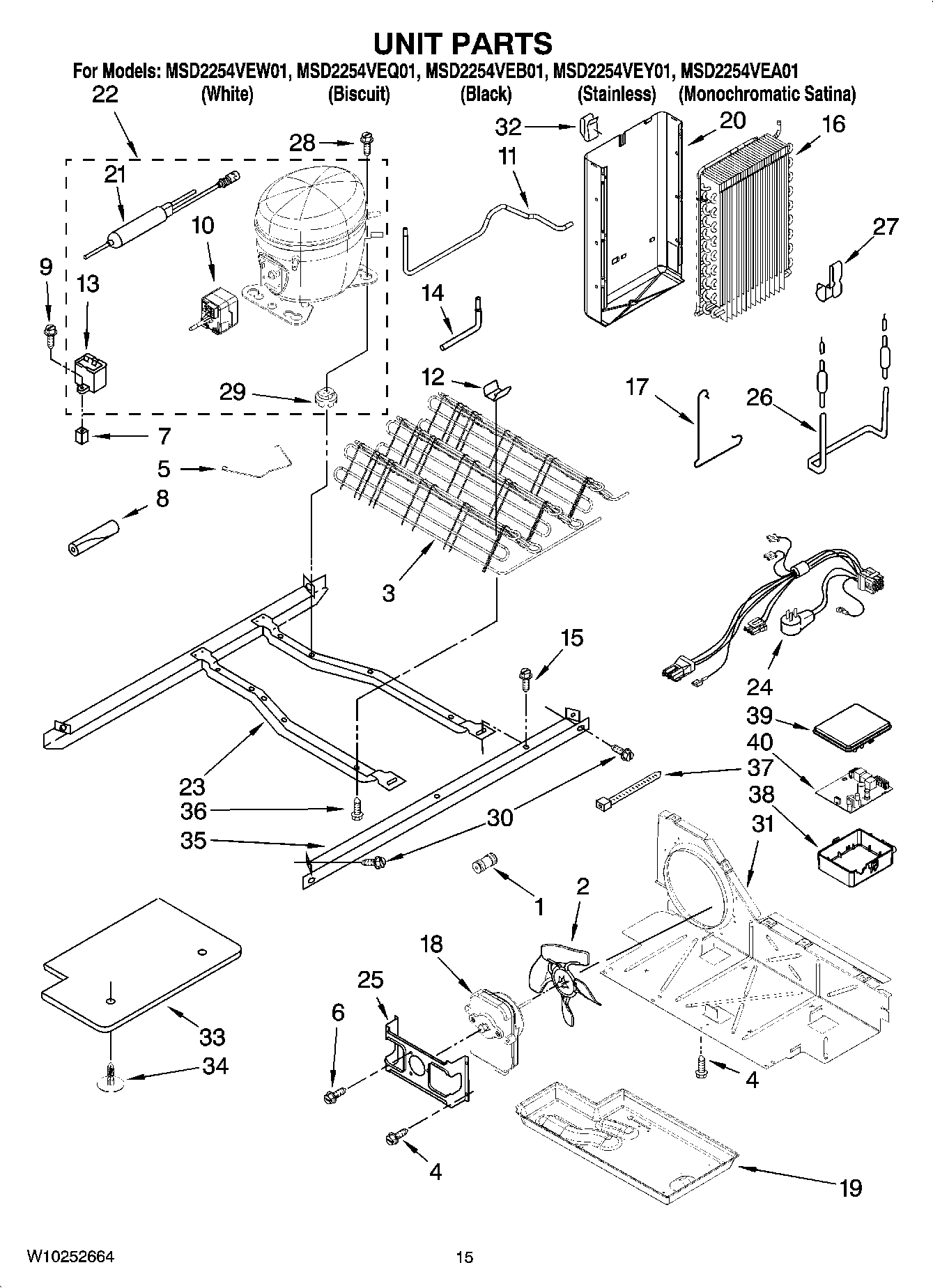

MSD2254VEB01 09 – UNIT PARTS

Products

Position	Product
NI	Valve, Access (1/2``)
NI	Valve, Access (3/4``)
NI	Valve, Access (5/8``)
NI	VALVE, ACCESS (3/8``)
NI	Valve, Access (5/16``)
NI	VALVE, ACCESS (1/4``)
NI	MAY 876764
1	Connector, Water
2	Fan, Blade
3	MAY W10211163
4	Screw (3)
5	MAY W10174384
6	MAY 8533993
7	MAY 509812
8	Sleeve, Pressure Switch Hose
9	MAY 488687
10	Start-Device, Combination (Start Relay and Overload) (Production)
10	Start-Device, Combination (Start Relay and Overload)
11	MAY W10210787
12	MAY 2311725
13	Capacitator (Production)
14	Process Tube
15	MAY 489427
16	MAY 2188822
19	MAY 1105523
20	ASSEMBLY, HEAT SHIELD AND DRAIN PAN
21	Drier
21	Drier
22	MAY 489373
23	Frame, Unit Mounting
24	Harness, Unit
25	MOTOR, CONDENSOR
26	MAY 2188174
27	Clip
28	Compressor (Includes Items 16, 17, 27, & 34) (Also Order 876765 Tube Kit)
29	Grommet (Production)
30	MAY 489340
31	MAY W10163483
32	MAY 2155547
33	UNIT COVER BOTTOM
34	MAY 489396
35	MAY W10196323
36	MAY 8281232
37	MAY 2263990
38	MAY 2326982
39	Box Cover
40	MAY 2322572
