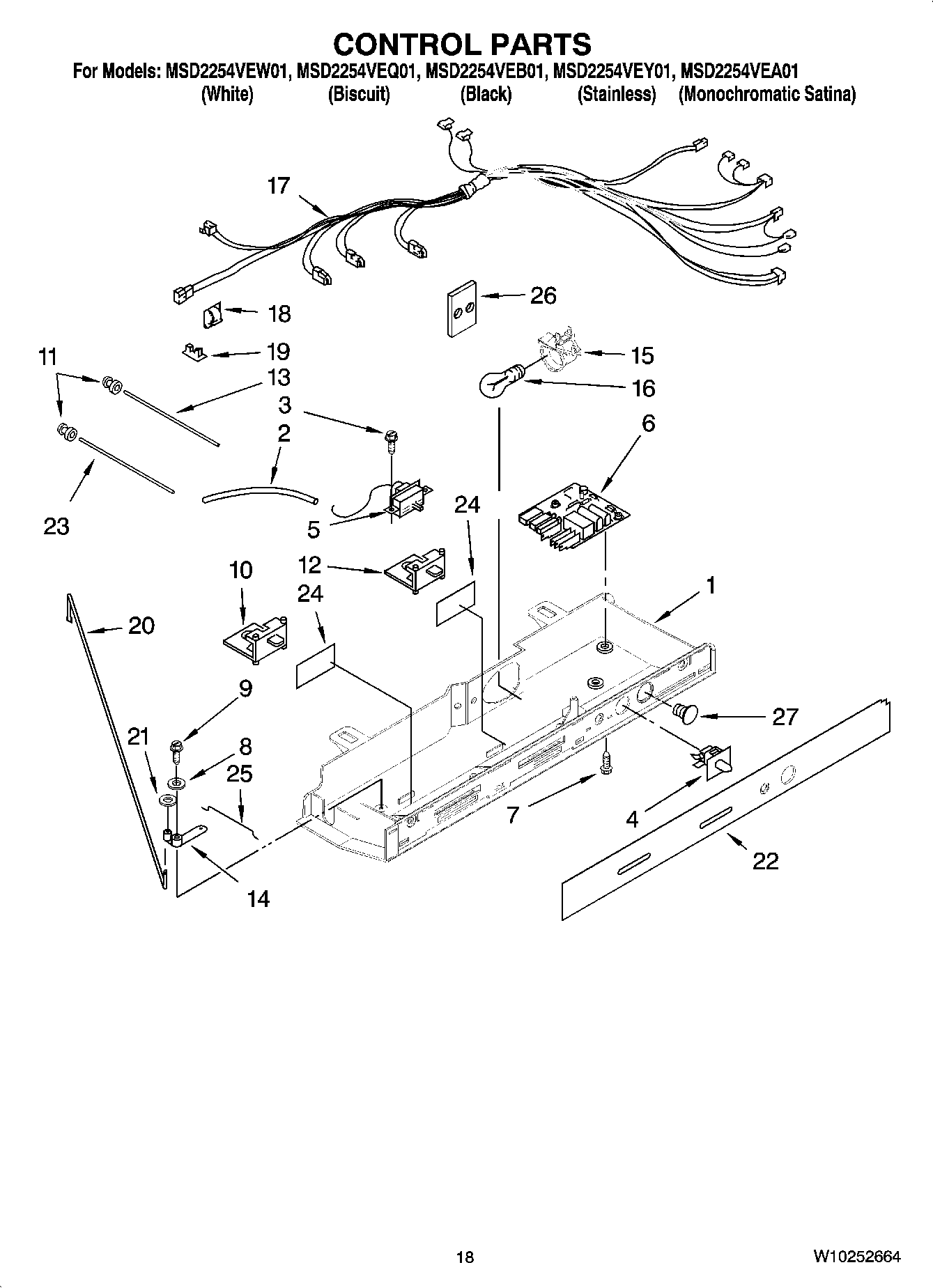

MSD2254VEB01 11 – CONTROL PARTS

MSD2254VEB01 11 – CONTROL PARTS

Written by

in

MSD2254VEB01 11 – CONTROL PARTS

Products

PositionProduct
1MAY 2181738
2TUBE-BARRIER, THERMOSTAT
3Screw (2)
4MAY 2149705
5Thermostat
6Control Board Assembly
7Screw
8Spring Washer
9MAY 627068
10MAY 2181741
11Grommet, Light Bar (4)
12MAY 2161466
13MAY 2179920
14Pivot Arm
15Socket, Light
16MAY W10194422
17MAY 2310533
18MAY 1115374
19Clip-Wiring
20Connecting Rod
21Fastner, Push-On
22MAY W10176424
23LIGHT BAR FC
24MAY 2175513
25CONNECTING ROD, SHORT
26MAY 2172931
27MAY 940014
