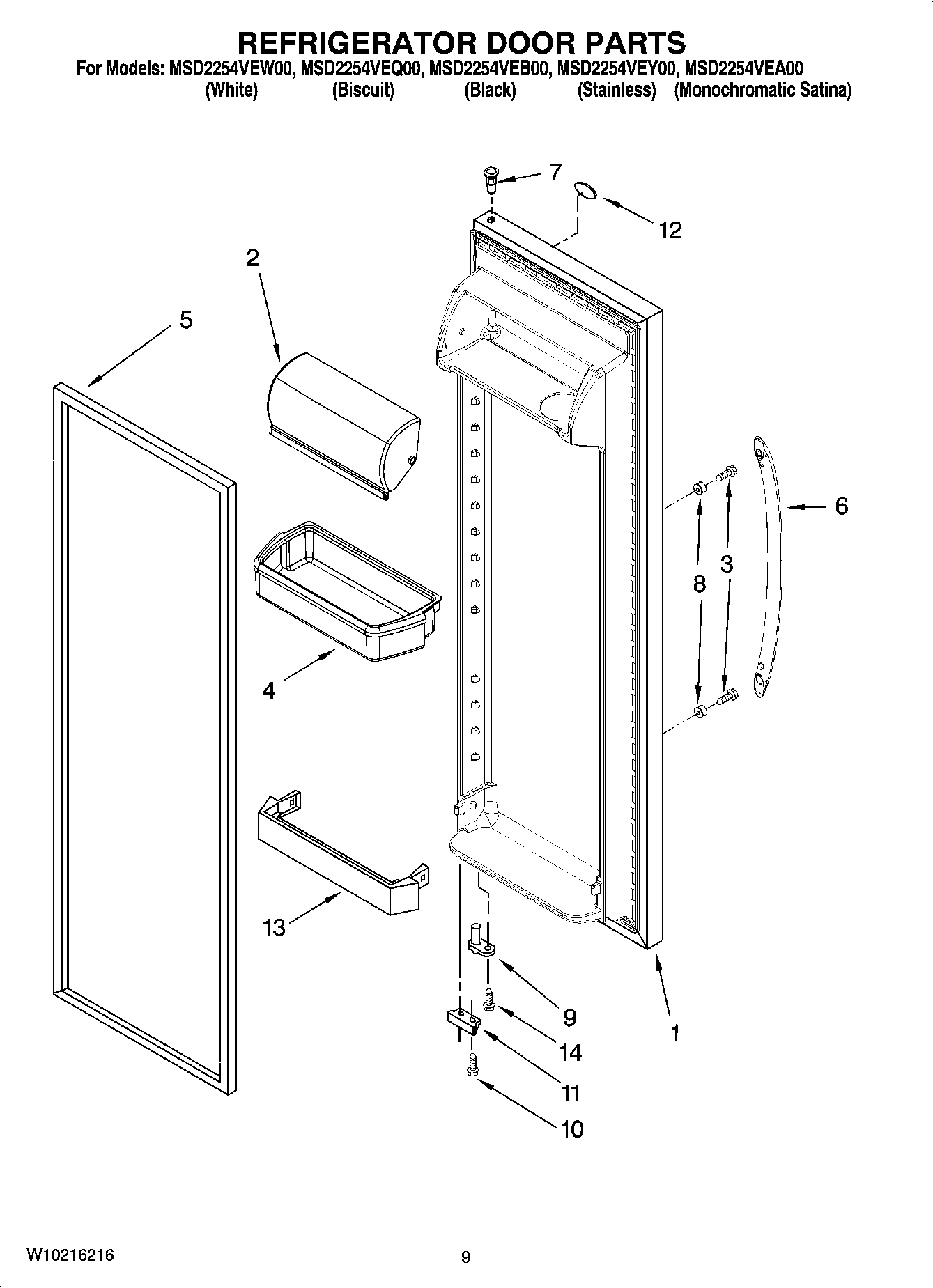

MSD2254VEQ00 06 – REFRIGERATOR DOOR PARTS

MSD2254VEQ00 06 – REFRIGERATOR DOOR PARTS

Written by

in

MSD2254VEQ00 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Item 5) (Stainless)
1MAY W10175181
1MAY W10175180
1MAY W10175179
1MAY W10175178
2Door, Compartment
3Screw
4MAY 2304235
5DOOR GASKET, MAGNETIC (BEIGE)
5MAY 2309653
5Door Gasket, Magnetic (Grey)
6W11690159 Whirlpool Handle
6MAY 67006982
6WP13004701B Whirlpool Refrigerator Handle
613004701W Whirlpool Refrigerator Handle
7MAY 2308091
8Stud
9DOOR CLOSER
10MAY 489420
11MAY 2206629B
11MAY 2206629
12MAY 2324038
13Shelf Bin
14MAY 3400012
