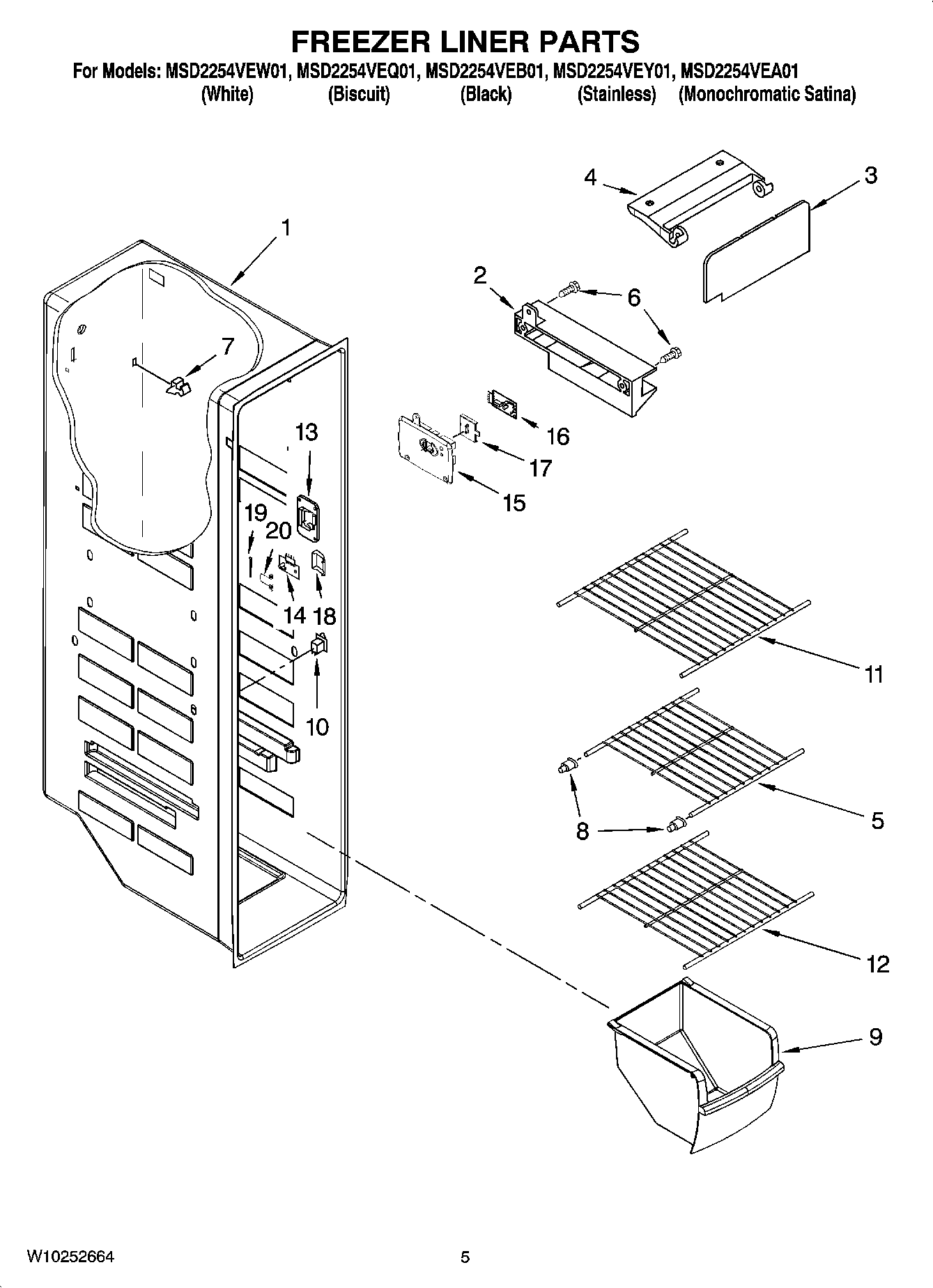

MSD2254VEQ01 04 – FREEZER LINER PARTS

Written by

Products

Position	Product
2	Slide, Ice Maker Mounting (Right Side)
3	MAY W10180062
4	Bracket, Ice Maker Cover
5	Shelf, Wire
6	MAY 489478
7	Clip, Air Duct (2)
8	Cup, Shelf Mount
9	MAY 2309758
10	Switch, Rocker Arm
11	Shelf, Wire
12	MAY 2312040
13	MAY 2198587
14	MAY 2220398
15	MAY W10173569
16	MAY W10193666
17	MAY 2315398
18	MAY 2198633
19	PIN, DOOR
20	SPRING, DOOR
