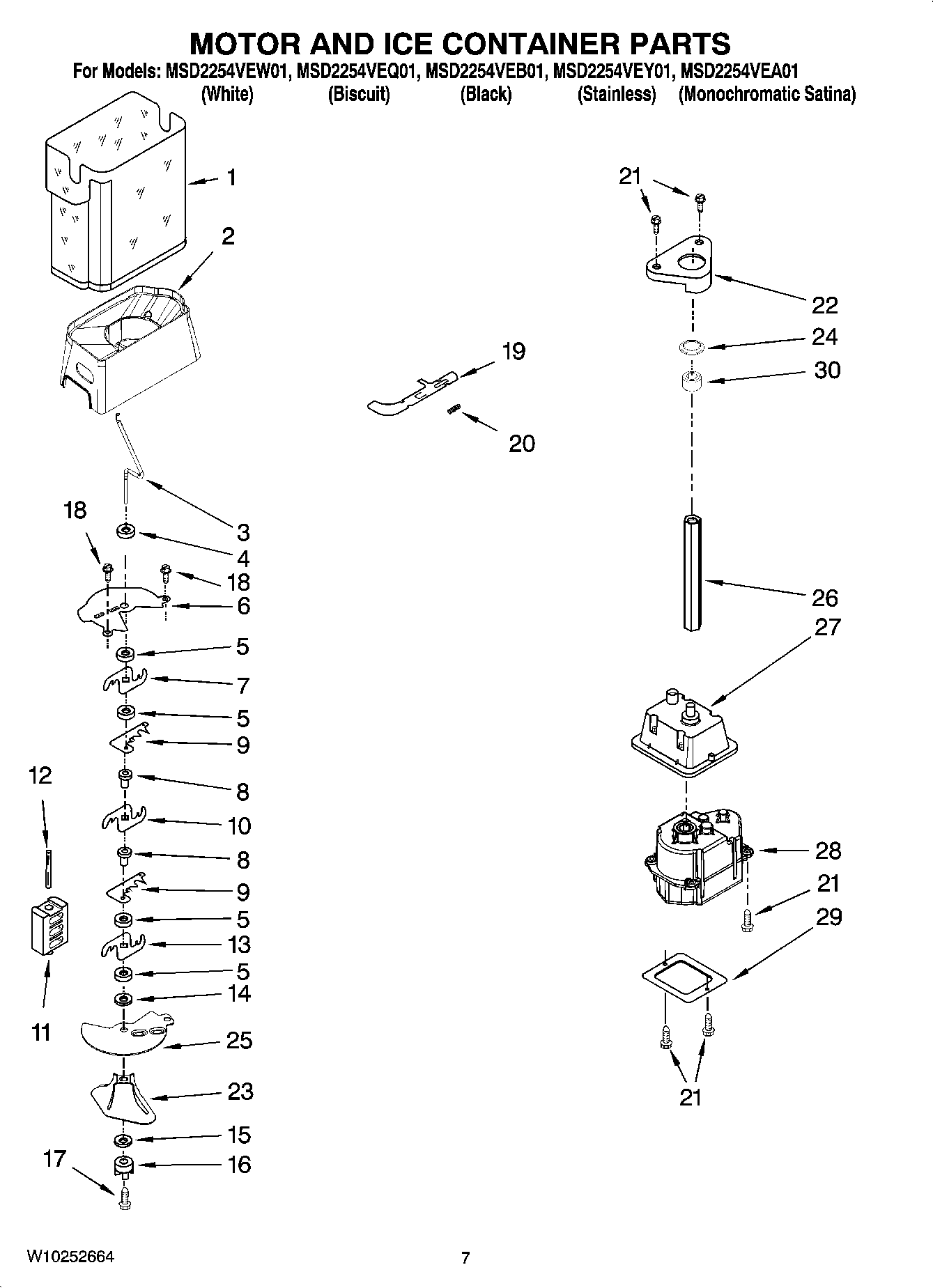

MSD2254VEQ01 05 – MOTOR AND ICE CONTAINER PARTS

Products

Position	Product
1	Ice Bin
2	MAY W10176384
3	MAY 2317247
4	Washer, Auger
5	MAY 1119007
6	MAY 2317248
7	MAY 2257024
8	MAY 1119005
9	MAY 2257020
10	MAY 2257023
11	MAY 2317239
12	MAY 489229
13	MAY 2257022
14	MAY 489235
15	MAY 2198661
16	Coupling, Top
17	MAY 8281164
18	SCREW (STAINLESS)
19	MAY 2317274
20	MAY 2198608
21	Screw
22	MAY 2188919
23	MAY 2317243
24	MAY 2198628
25	Divider Chamber
26	MAY 2188916
27	MAY 2322488
28	MAY 2322580
29	MAY 2212305
30	SLEEVE, COUPLING
100	MAY W10204457
