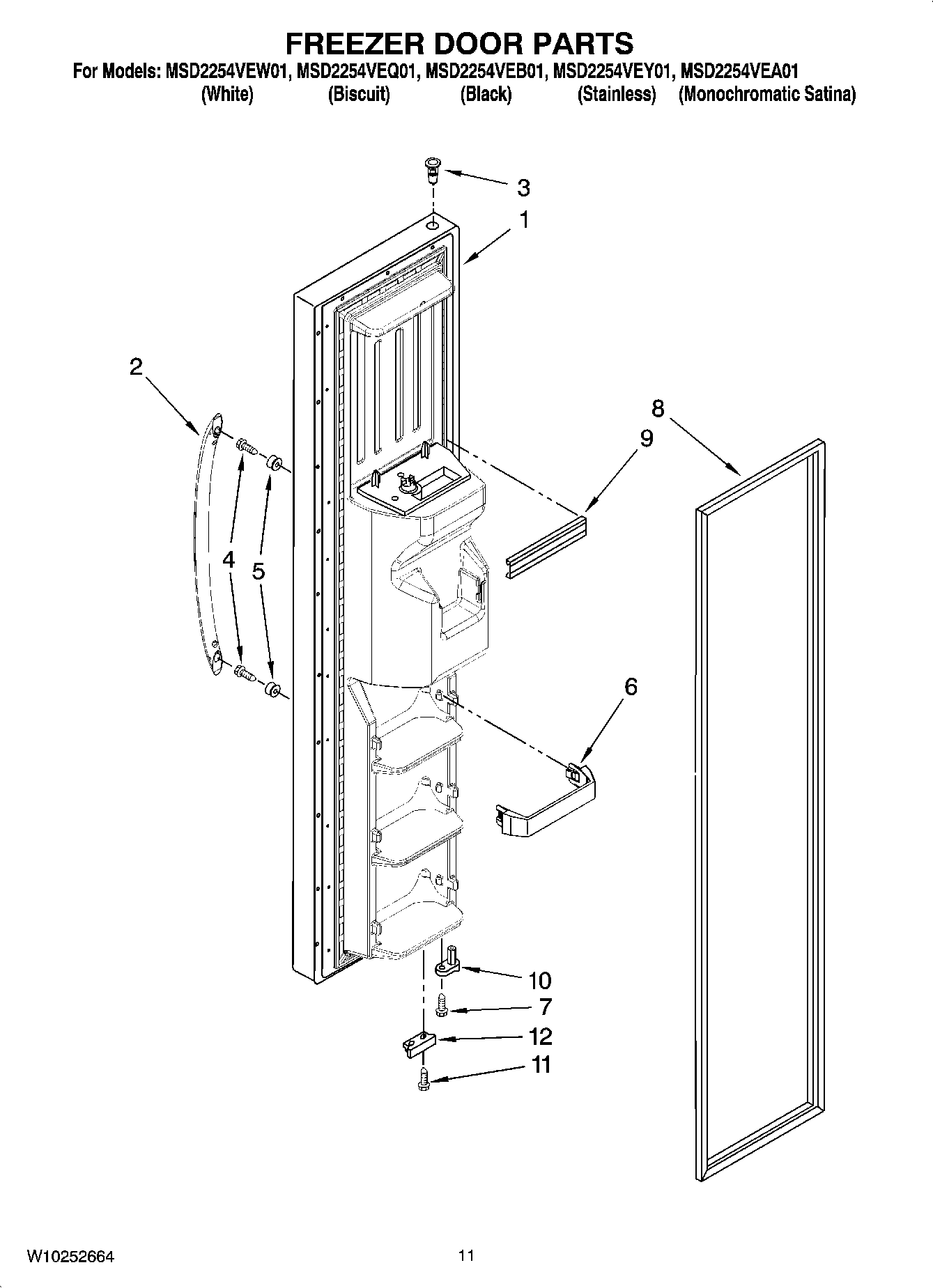

MSD2254VEQ01 07 – FREEZER DOOR PARTS

MSD2254VEQ01 07 – FREEZER DOOR PARTS

Written by

in

MSD2254VEQ01 07 – FREEZER DOOR PARTS

Products

PositionProduct
1MAY W10175198
1MAY W10175200
1MAY W10175199
1MAY W10175196
1MAY W10175197
2WP13004701B Whirlpool Refrigerator Handle
213004701W Whirlpool Refrigerator Handle
2W11690159 Whirlpool Handle
2MAY 67006982
3MAY 2308091
4Screw
5Stud
6TRIM, DOOR
7MAY 3400012
8Door Gasket, Magnetic (Grey)
8MAY 2309654
8DOOR GASKET, MAGNETIC (BEIGE)
9MAY 2212375
10DOOR CLOSER
11MAY 489420
12Bracket, Door Stop (Black)
12Bracket, Door Stop (Chrome)
