MSD2254VEW01 11 – CONTROL PARTS – Aparts

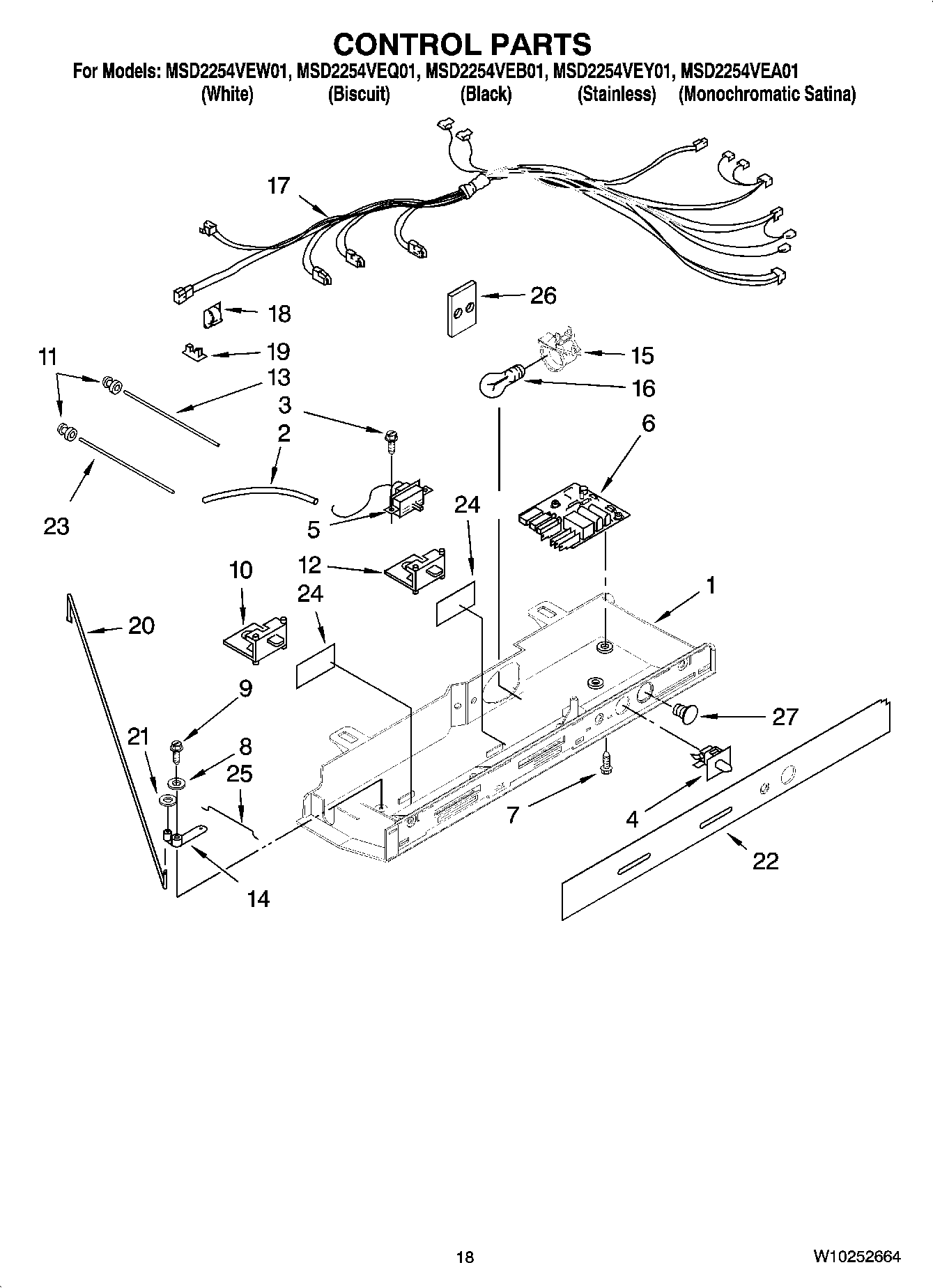

MSD2254VEW01 11 – CONTROL PARTS

Products

Position	Product
1	MAY 2181738
2	TUBE-BARRIER, THERMOSTAT
3	Screw (2)
4	MAY 2149705
5	Thermostat
6	Control Board Assembly
7	Screw
8	Spring Washer
9	MAY 627068
10	MAY 2181741
11	Grommet, Light Bar (4)
12	MAY 2161466
13	MAY 2179920
14	Pivot Arm
15	Socket, Light
16	MAY W10194422
17	MAY 2310533
18	MAY 1115374
19	Clip-Wiring
20	Connecting Rod
21	Fastner, Push-On
22	MAY W10176424
23	LIGHT BAR FC
24	MAY 2175513
25	CONNECTING ROD, SHORT
26	MAY 2172931
27	MAY 940014
