MSD2254VEY00 08 – DISPENSER FRONT PARTS – Aparts

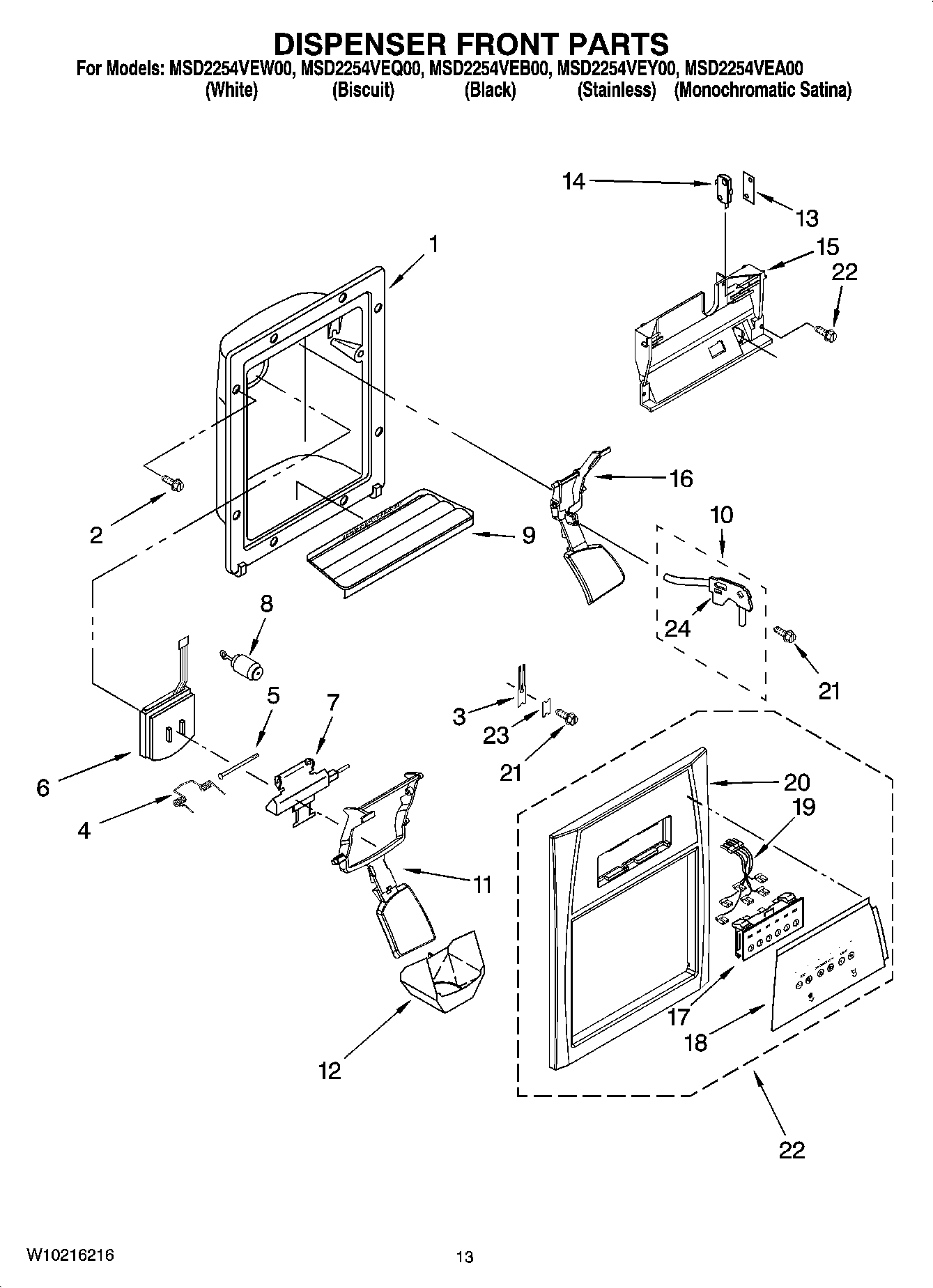

MSD2254VEY00 08 – DISPENSER FRONT PARTS

Products

Position	Product
2	Screw
3	MAY 2194719
4	MAY 2304772
5	MAY 2196195
6	MAY 2180353
7	MAY 2304355
8	MAY 2205686
9	MAY 2206671W
9	MAY 2206671B
9	Grille, Overflow (Nickel)
9	MAY 2206671T
10	MAY 2304317
11	MAY 2203562AP
11	MAY 2203562T
11	Lever, Ice Dispenser (Black)
11	Lever, Ice Dispenser (White)
12	MAY 2180224
13	MAY 625834
14	Switch (4)
15	MAY 2322423
16	MAY 2203561AP
16	MAY 2203561T
16	Lever, Water Dispenser (White)
16	Lever, Water Dispenser (Black)
21	MAY 489000
22	MAY W10170392
22	MAY W10170390
22	MAY W10170389
22	MAY W10170388
22	MAY W10172005
23	MAY 2195051
24	MAY 2304673
