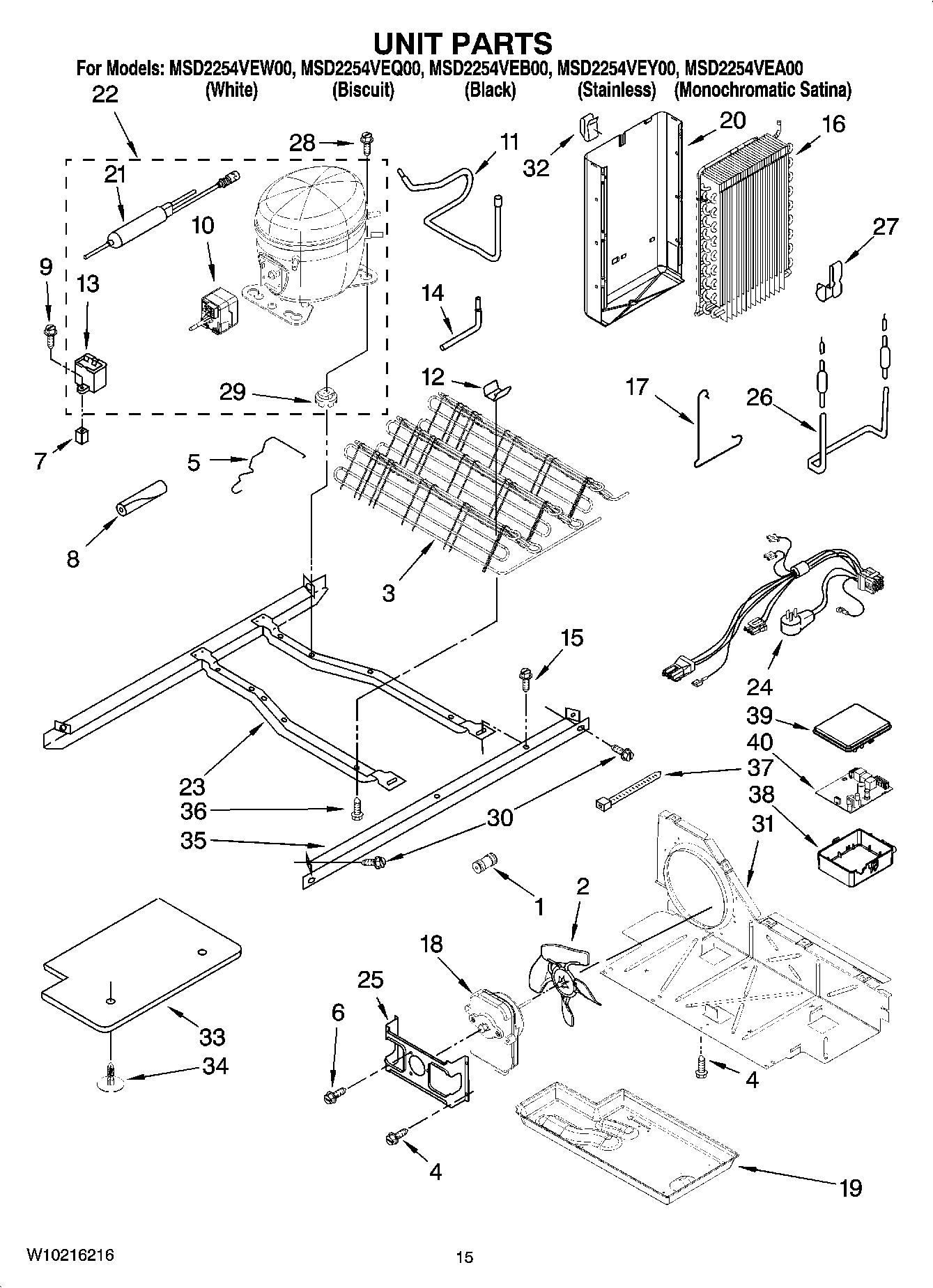

MSD2254VEY00 09 – UNIT PARTSadmin2025-04-26T13:09:17+00:00MSD2254VEY00 09 – UNIT PARTS
Products
| Position | Product |
|---|
| NI | Valve, Access (5/8``) |
| NI | MAY 876764 |
| NI | VALVE, ACCESS (1/4``) |
| NI | Valve, Access (5/16``) |
| NI | VALVE, ACCESS (3/8``) |
| NI | Valve, Access (1/2``) |
| NI | Valve, Access (3/4``) |
| 1 | Connector, Water |
| 2 | Fan, Blade |
| 3 | MAY 2324712 |
| 4 | Screw (3) |
| 5 | MAY 2255199 |
| 6 | MAY 8533993 |
| 7 | MAY 509812 |
| 8 | Sleeve, Pressure Switch Hose |
| 9 | MAY 488687 |
| 10 | START DEVICE, COMBINATION (START RELAY AND OVERLOAD FOR PRODUCTION COMPRESSOR ONLY) (SERVICE) |
| 10 | MAY W10136414 |
| 11 | Tube Suction |
| 12 | MAY 2311725 |
| 13 | CAPACITATOR (SERVICE) |
| 13 | Capacitator (Production) |
| 14 | MAY 2325479 |
| 15 | MAY 489427 |
| 16 | MAY 2188822 |
| 19 | MAY 1105523 |
| 20 | MAY 2217195 |
| 21 | Drier |
| 21 | MAY 2319825 |
| 22 | COMPRESSOR (ALSO ORDER 876765 TUBE KIT) |
| 23 | Frame, Unit Mounting |
| 24 | Harness, Unit |
| 25 | MOTOR, CONDENSOR |
| 26 | MAY 2188174 |
| 27 | Clip |
| 28 | MAY 489373 |
| 29 | Grommet (Production) |
| 30 | MAY 489340 |
| 31 | MAY 2196202 |
| 32 | MAY 2155547 |
| 33 | UNIT COVER BOTTOM |
| 34 | MAY 489396 |
| 35 | MAY 2149718 |
| 36 | MAY 8281232 |
| 37 | MAY 2263990 |
| 38 | MAY 2326982 |
| 39 | Box Cover |
| 40 | MAY 2322572 |
