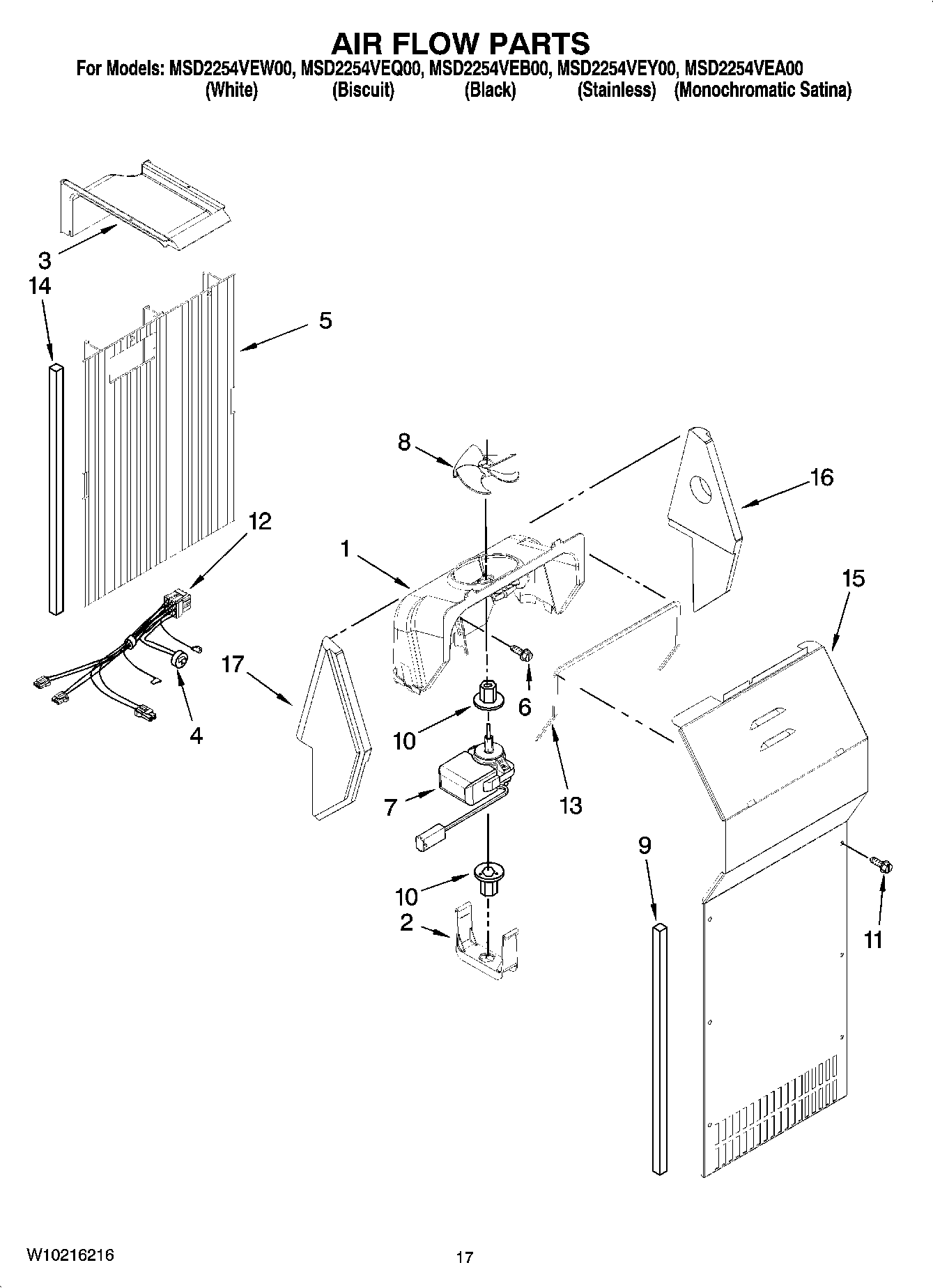

MSD2254VEY00 10 – AIR FLOW PARTS

Products

Position	Product
1	SCROLL, FAN
2	MAY 2155590
3	MAY 2313359
4	MAY 2319914
5	MAY 2312009
6	MAY 489478
7	MAY 2315549
8	Blade, Fan (Evaporator)
9	Gasket
10	GROMMET, MOTOR
11	MAY 8281159
12	Harness, Fan Tube Evaporator (Includes 6)
13	GASKET, SCROLL ASSEMBLY
14	MAY 2203875
15	MAY 2304908
16	SUPPORT, FAN SCROLL (RIGHT HAND)
17	SUPPORT, FAN SCROLL (LEFT HAND)
