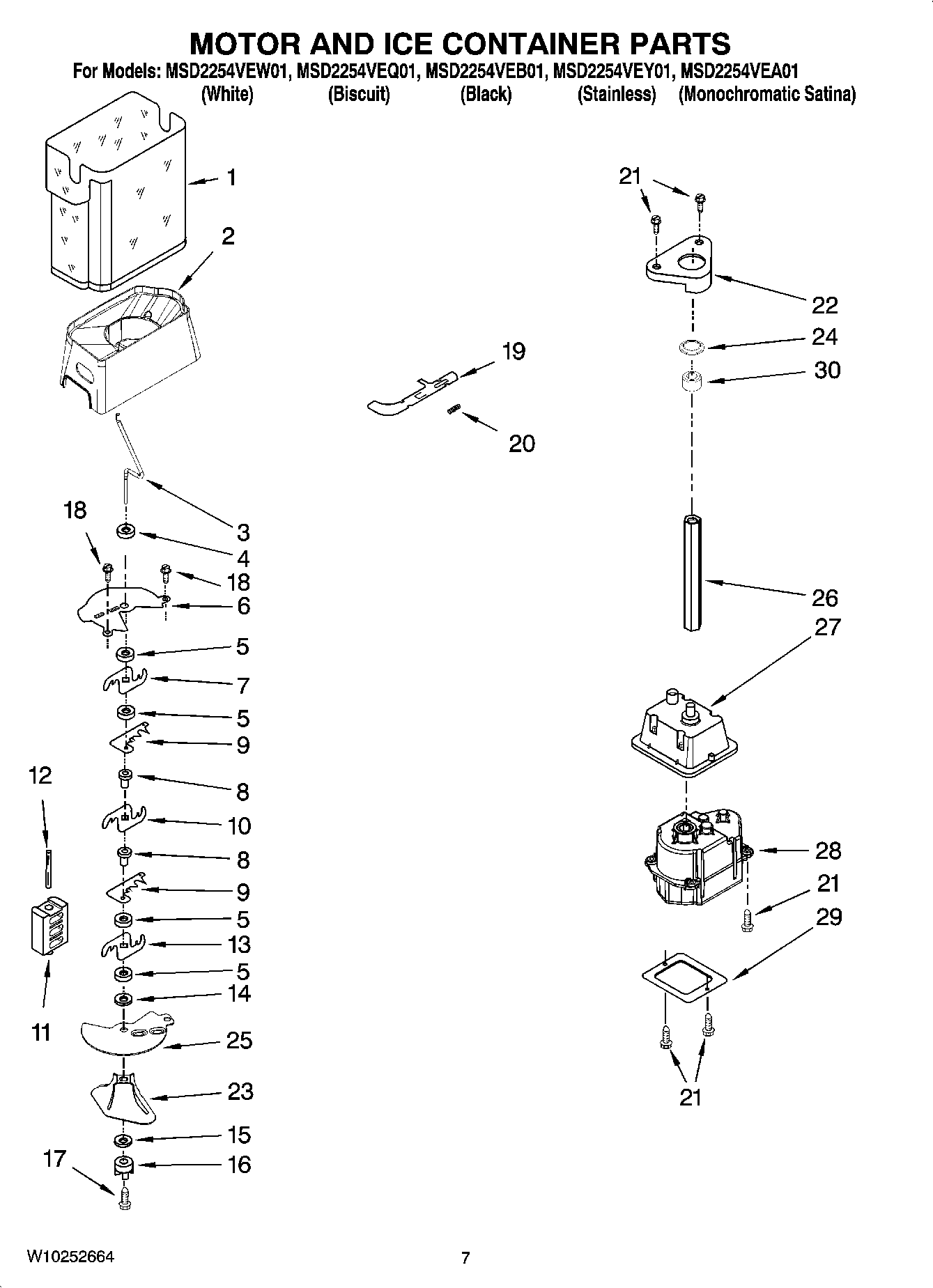

MSD2254VEY01 05 – MOTOR AND ICE CONTAINER PARTS

Products

PositionProduct
1Ice Bin
2MAY W10176384
3MAY 2317247
4Washer, Auger
5MAY 1119007
6MAY 2317248
7MAY 2257024
8MAY 1119005
9MAY 2257020
10MAY 2257023
11MAY 2317239
12MAY 489229
13MAY 2257022
14MAY 489235
15MAY 2198661
16Coupling, Top
17MAY 8281164
18SCREW (STAINLESS)
19MAY 2317274
20MAY 2198608
21Screw
22MAY 2188919
23MAY 2317243
24MAY 2198628
25Divider Chamber
26MAY 2188916
27MAY 2322488
28MAY 2322580
29MAY 2212305
30SLEEVE, COUPLING
100MAY W10204457
