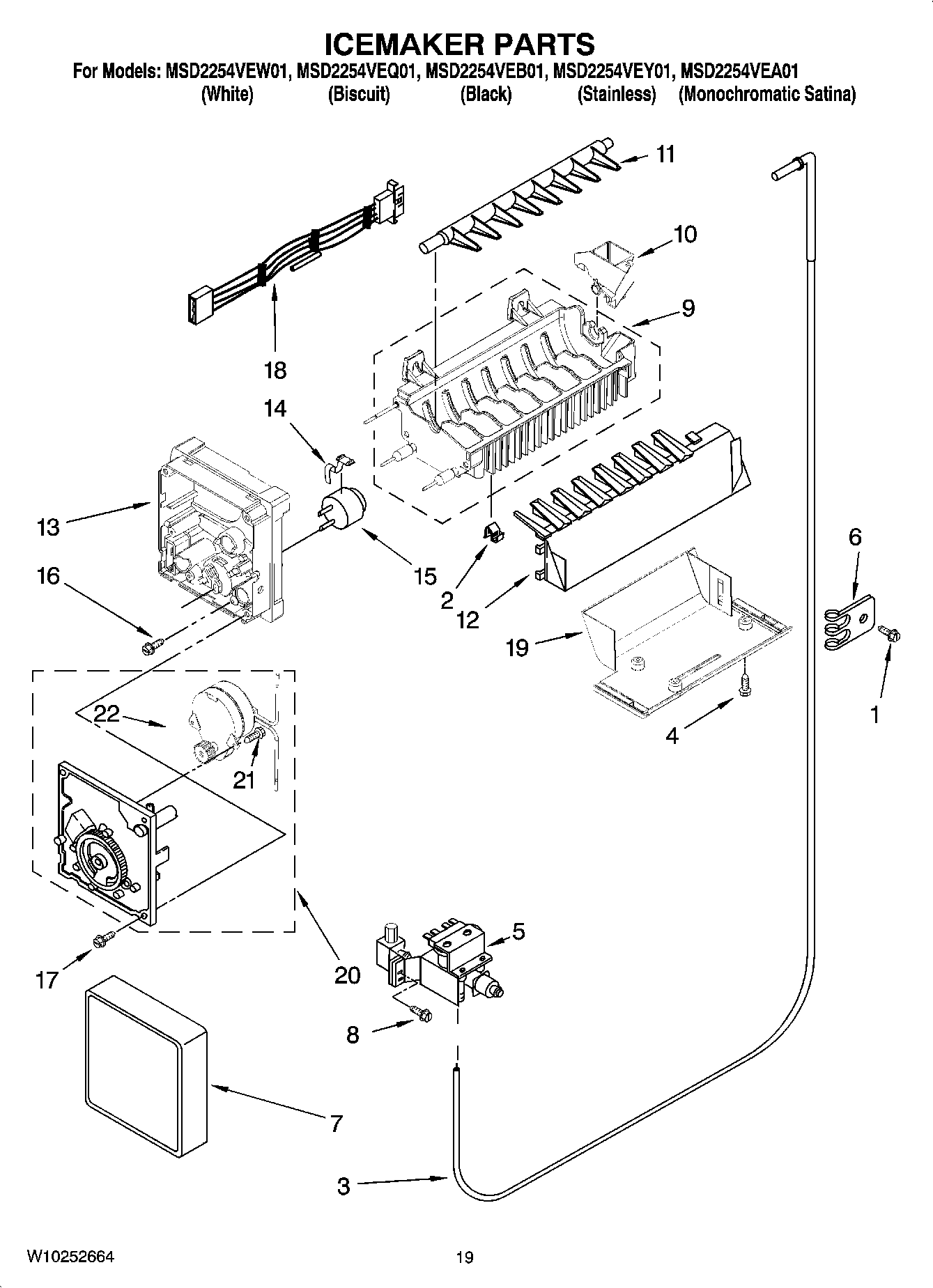

MSD2254VEY01 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
NI	PAINT, BULK (1 QT. GRAPHITE)
NI	MAY 503695
NI	MAY 505587
NI	MAY 542638
NI	MAY 542639
NI	Kit, Evaporator Repair (Aluminum Epoxy)
NI	MAY 833938
NI	Refinishing Material (Enamel, Black (1 Qt. Uncut))
NI	MAY 80051
NI	PAINT, PRESSURIZED SPRAY (12OZ. GRAPHITE)
NI	MAY 479502
NI	PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK)
NI	SEALER, GUM (4 FEET)
NI	PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
NI	PAINT, TOUCH-UP (1/2OZ. WHITE)
NI	PAINT, TOUCH-UP (1/2OZ. BLACK)
NI	PAINT, BULK (1 QT. WHITE (UNCUT))
NI	MAY 4392899
NI	PAINT, BULK (1 qt.) (Biscuit)
NI	PAINT, SPRAY (WHITE PRIMER)
NI	MAY 1117510
NI	MAY 4392901
1	MAY 489084
2	Clip
3	Fitting, Water Tube
4	MAY 489478
5	MAY 2188709
6	Clip, Tube
7	MAY 2174358
8	MAY 488649
9	Mold & Heater Assembly (Also Order 542638)
10	Cup-Water Fill
11	MAY 626753
12	MAY 2212318
13	MAY 2194712
14	MAY 2315522
15	Thermostat (Also Order 542369 Cement Alumilastic)
16	MAY 8533917
17	MAY 489276
18	MAY 2187484
19	Bracket, Mounting
20	Module Assembly (Includes Items 23 and 24)
21	MAY 489136
100	MAY W10190961
