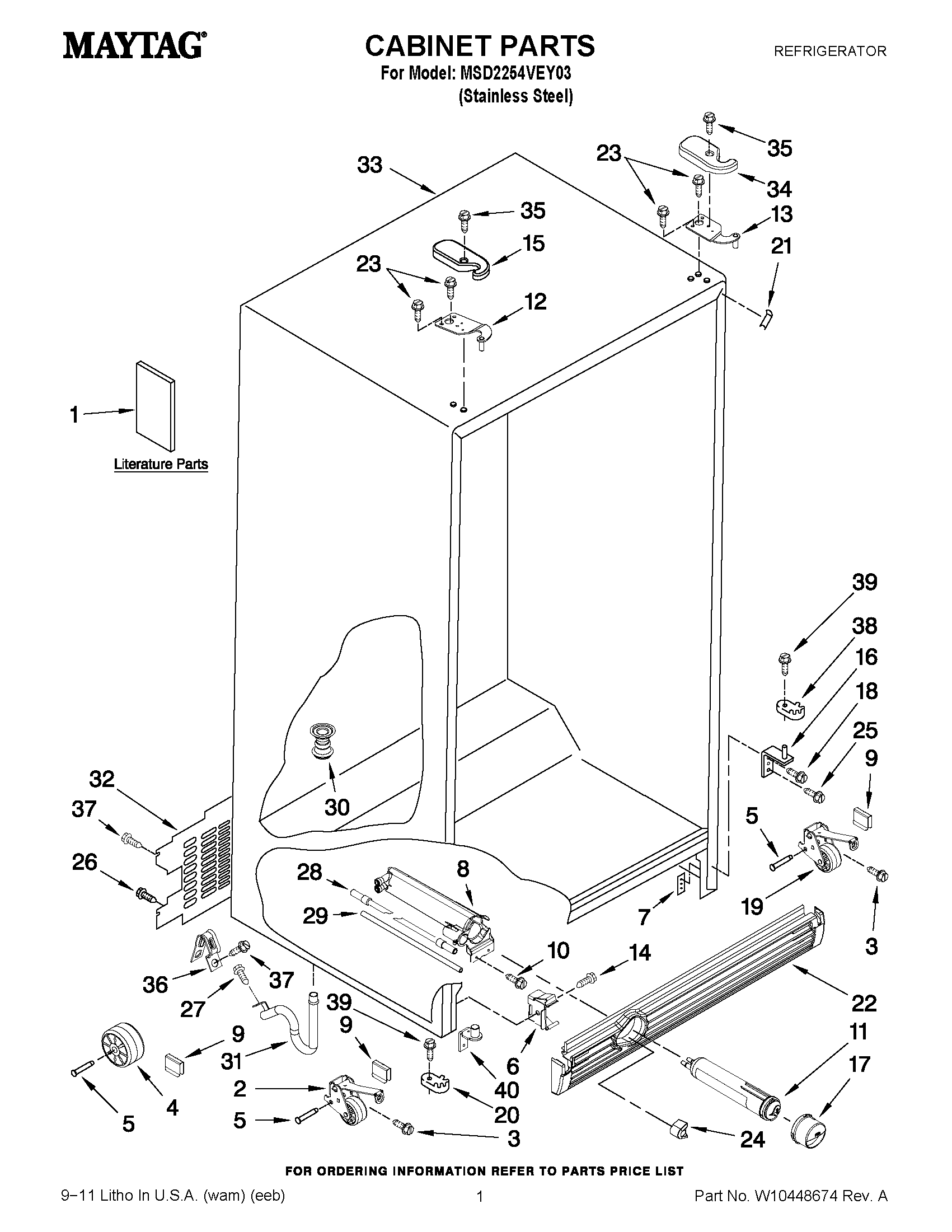

MSD2254VEY03 01 – CABINET PARTS

Products

Position	Product
1	OWNERâ€™S MANUAL
1	MAY W10205540
1	MAY W10175648
2	ROLLER, FRONT (LEFT)
3	MAY 2152958
4	Roller
5	AXLE, ROLLER
6	MAY 2155013
7	MAY 2304249
8	Housing, Water Filter
9	CLIP, ROLLER
10	MAY 489500
11	MAY 4396841
12	HINGE TOP FC
13	HINGE, TOP RC
14	MAY 488500
15	COVER, HINGE (REFRIGERATOR) (GREY)
16	HINGE BOTTOM (2)
17	CAP, WATER FILTER (GREY)
18	Screw (4)
19	ROLLER, FRONT (RIGHT)
20	CLOSER, FREEZER DOOR
21	FILLER, CORNER (GREY)
22	MAY W10184882
23	MAY 489497
24	BUTTON, WATER FILTER (GREY)
25	MAY 3400103
26	SCREW
27	Screw (3)
28	MAY W10281289
29	Tube, Filter Outlet
30	MAY 2304888
31	MAY W10153550
32	MAY 2188734
33	LINER (NOT A SERVICEABLE PART)
34	COVER, HINGE (FREEZER) (GREY)
35	MAY 8281227
36	MAY 549193
37	MAY 489084
38	MAY 2155311
39	MAY 489483
40	BOTTOM HINGE (FC)
