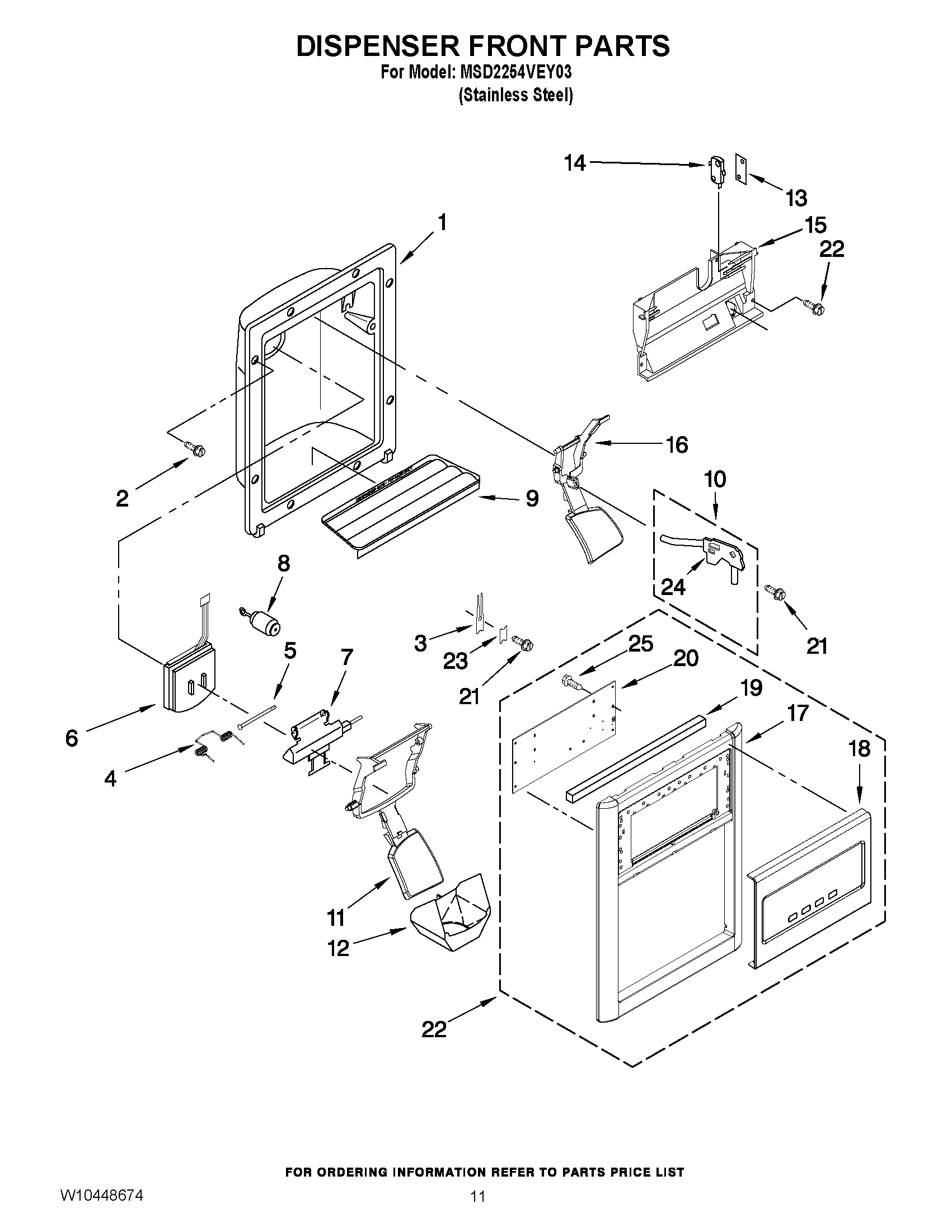

MSD2254VEY03 07 – DISPENSER FRONT PARTS
Written by
in
MSD2254VEY03 07 – DISPENSER FRONT PARTS
Products
Position
Product
2
Screw
3
MAY 2194719
4
MAY 2304772
5
MAY 2196195
6
MAY 2180353
7
MAY 2304355
8
MAY 2205686
9
Grille, Overflow (Nickel)
10
MAY 2304317
11
MAY 2203562AP
12
MAY 2180224
13
MAY 625834
14
Switch (4)
15
MAY W10206221
16
MAY 2203561AP
18
LINER (NOT A SERVICEABLE PART)
19
MAY 2305571
20
MAY 2321748
21
MAY 489000
22
MAY W10170392
23
MAY 2195051
24
MAY 2304673
25
Screw (2)
←
