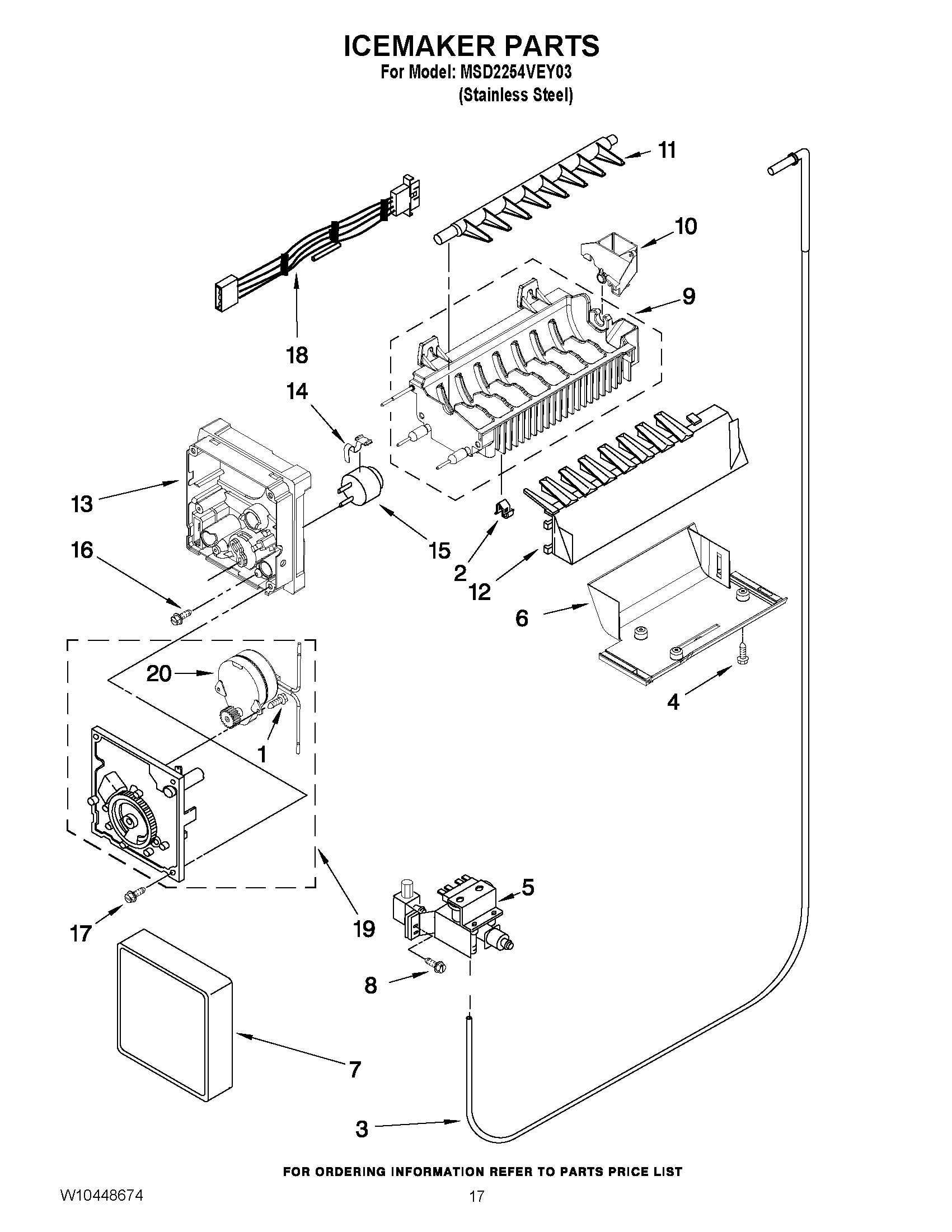

MSD2254VEY03 11 – ICEMAKER PARTS

Products

Position	Product
1	MAY 489136
2	Clip
3	Fitting, Water Tube
4	MAY 489478
5	MAY 2188709
6	Bracket, Mounting
7	COVER
8	MAY 488649
9	Mold & Heater Assembly (Also Order 542638)
10	MAY W10272168
11	MAY 626753
12	MAY W10272164
13	MAY 2194712
14	MAY 2315522
15	Thermostat (Also Order 542369 Cement Alumilastic)
16	MAY 8533917
17	MAY 489276
18	MAY W10309401
19	Module Assembly (Includes Items 23 and 24)
20	LINER (NOT A SERVICEABLE PART)
100	MAY W10190961
