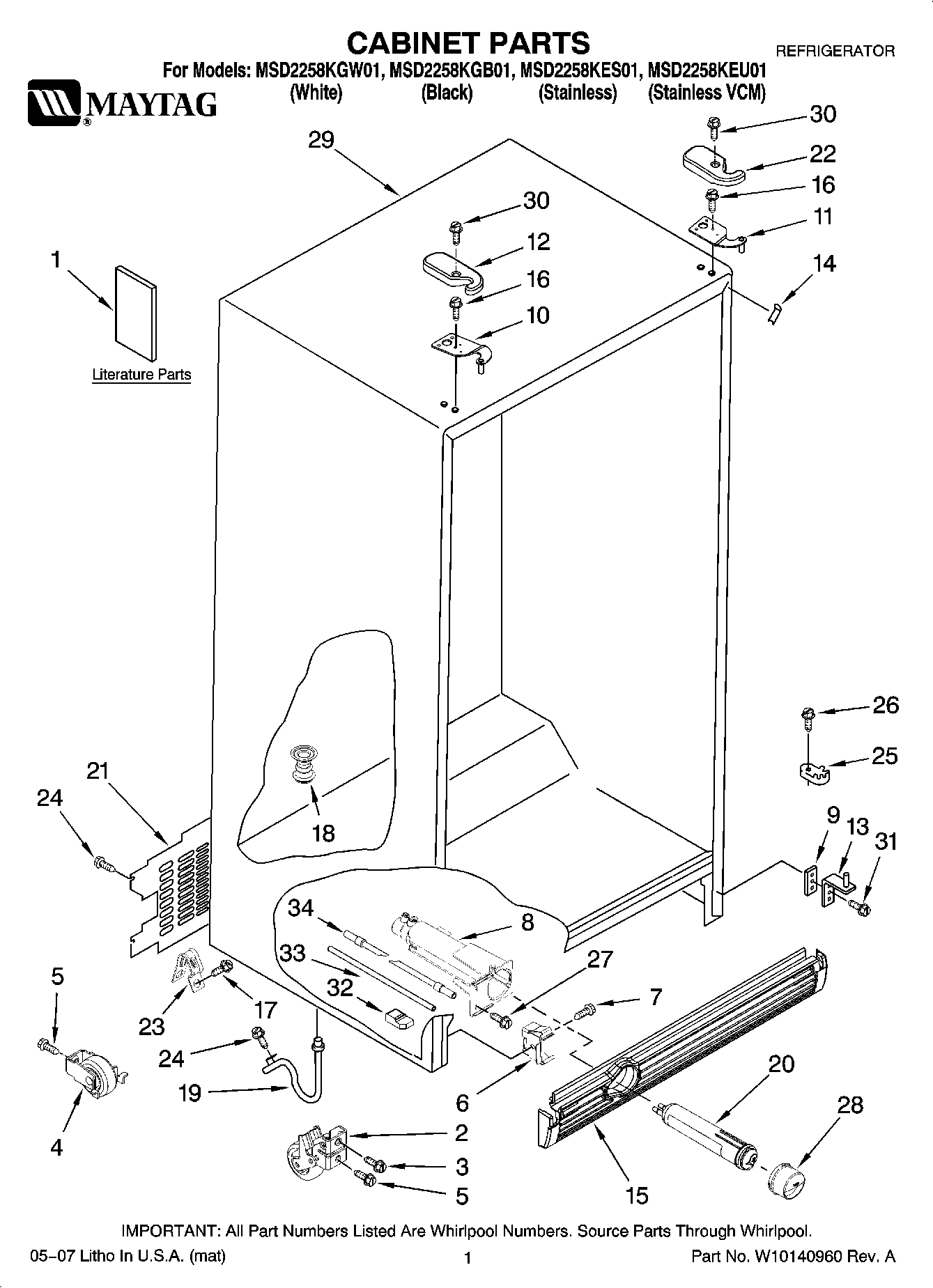

MSD2258KES01 01 – CABINET PARTS

Products

Position	Product
1	MAY 2220407
1	MAY 2305869
1	Instruction Sheet, Door Removal
1	MAY W10120265
1	MAY 2326267
2	MAY 2174748
3	MAY 3400517
4	MAY 2196236
5	MAY 489427
6	MAY 2155013
7	MAY 489478
8	MAY 2186443
9	Shim (2)
10	HINGE TOP, FC
11	HINGE TOP RC
12	HINGE COVER FC (BLACK)
12	HINGE COVER FC (WHITE)
13	MAY 2304322
14	MAY 2304846
14	MAY 2304848
15	Grille (Black)
15	MAY 2198467W
16	MAY 489497
17	Screw (3)
18	MAY 2304888
19	MAY 2304937
20	MAY 8212652
21	MAY 2188734
22	HINGE COVER RC (BLACK)
22	HINGE COVER RC (WHITE)
23	MAY 549193
24	MAY 489084
25	MAY 2155311
26	MAY 489483
27	MAY 489500
28	Cap, Water Filter (Black)
28	Cap, Water Filter (White)
30	MAY 8281227
31	Screw (4)
32	MAY 2186489
33	MAY 2304708
34	MAY 2319867
