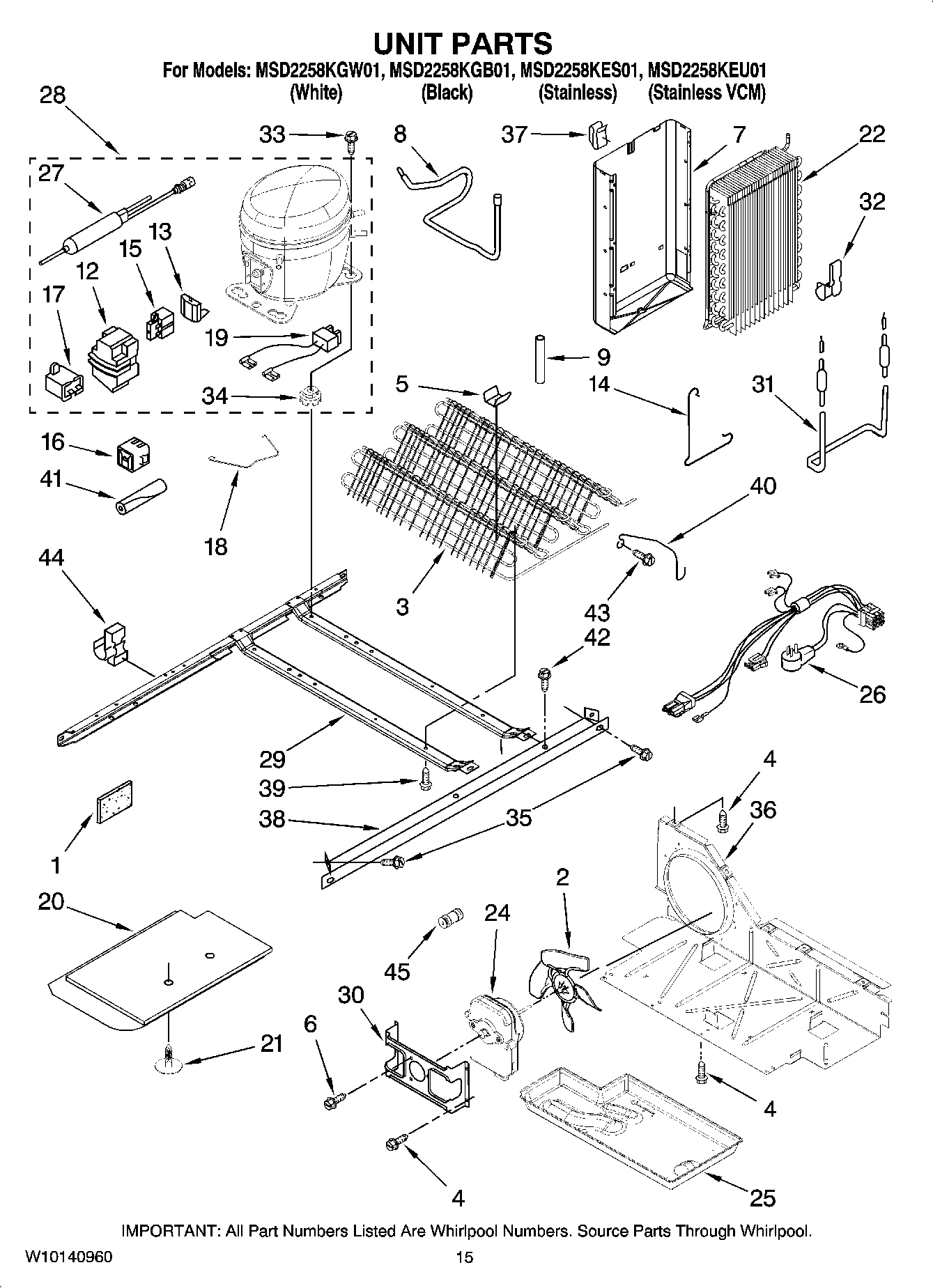

MSD2258KES01 09 – UNIT PARTS

Products

Position	Product
1	SEALER, INSULATION
2	MAY 2225834
3	Condenser Assembly (Also Order 7)
4	Screw (3)
5	MAY 2216914
6	MAY 8533993
7	MAY 2217195
8	Tube Suction
9	MAY W10132419
12	COVER ((SERVICE ONLY))
13	MAY 2187145
14	Clip
15	Start Relay (Service Only)
16	Start-Device, Combination (Start Relay and Overload) (Service)
17	Capacitator (Production)
17	Capacitor (Service)
18	MAY 2223314
19	Wire Assembly (Service Only)
20	UNIT COVER BOTTOM
21	MAY 489396
22	MAY 2188822
24	MOTOR, CONDENSOR
25	MAY 1105523
26	Unit, Harness
27	Drier
27	MAY 2319825
28	Compressor (Includes Items 11, 13, 20, & 21) (Also Order 876765 Tube Kit)
29	Frame, Unit Mounting
30	MAY 2181929
31	MAY 2188174
32	MAY 2304287
33	MAY 489373
34	Grommet (Production)
34	MAY 4387558
35	MAY 489340
36	MAY 2196202
37	MAY 2155547
38	MAY 2149718
39	MAY 8281232
40	MAY 2186496
41	Sleeve, Pressure Switch Hose
42	MAY 489427
43	MAY 489478
44	Clip, Wire
45	VALVE, ACCESS (1/4“)
45	Valve, Access (3/4“)
45	Valve, Access (5/16“)
45	VALVE, ACCESS (3/8“)
45	Valve, Access (1/2“)
45	12658531CQ Whirlpool Refrigerator DOR-FIP Board
45	Valve, Access (5/8“)
45	MAY 876764
45	CONNECTOR, WATER
