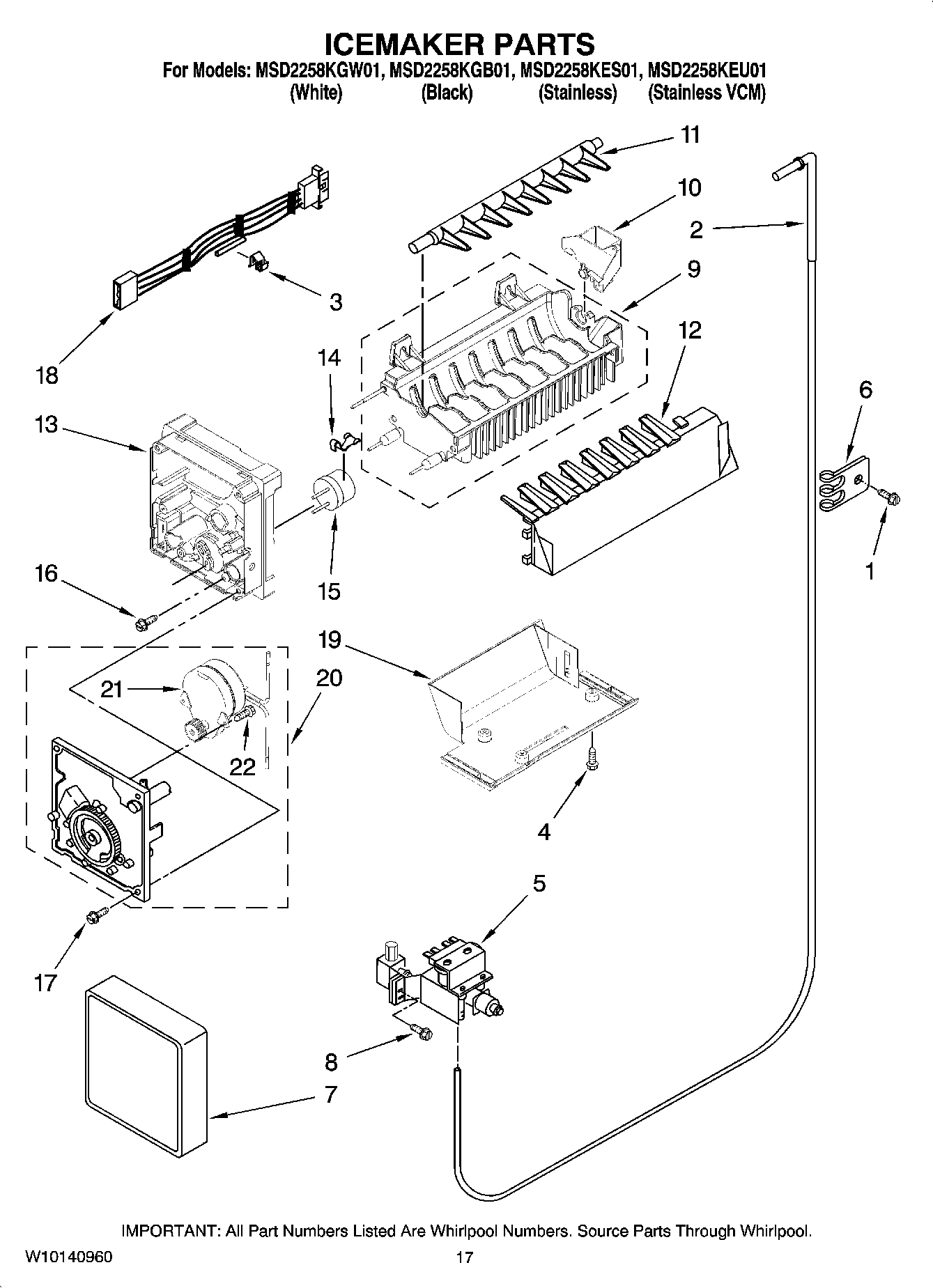

MSD2258KES01 10 – ICEMAKER PARTS

Products

Position	Product
1	MAY 489084
2	MAY 2256095
3	Clip
4	MAY 489478
5	MAY 2188709
6	Clip, Tube
7	MAY 2174358
8	MAY 488649
9	MAY 2212351
10	Cup, Fill
11	MAY 2212320
12	MAY 2212318
13	MAY 2194712
14	MAY 2315522
15	Thermostat (Also Order 542369 Cement Alumilastic)
16	MAY 8533917
17	MAY 489276
18	MAY 2187484
19	Bracket, Mounting
20	Module Assembly (Includes Item 24)
21	MAY 12724201
22	MAY 489136
100	MAY 2212352
