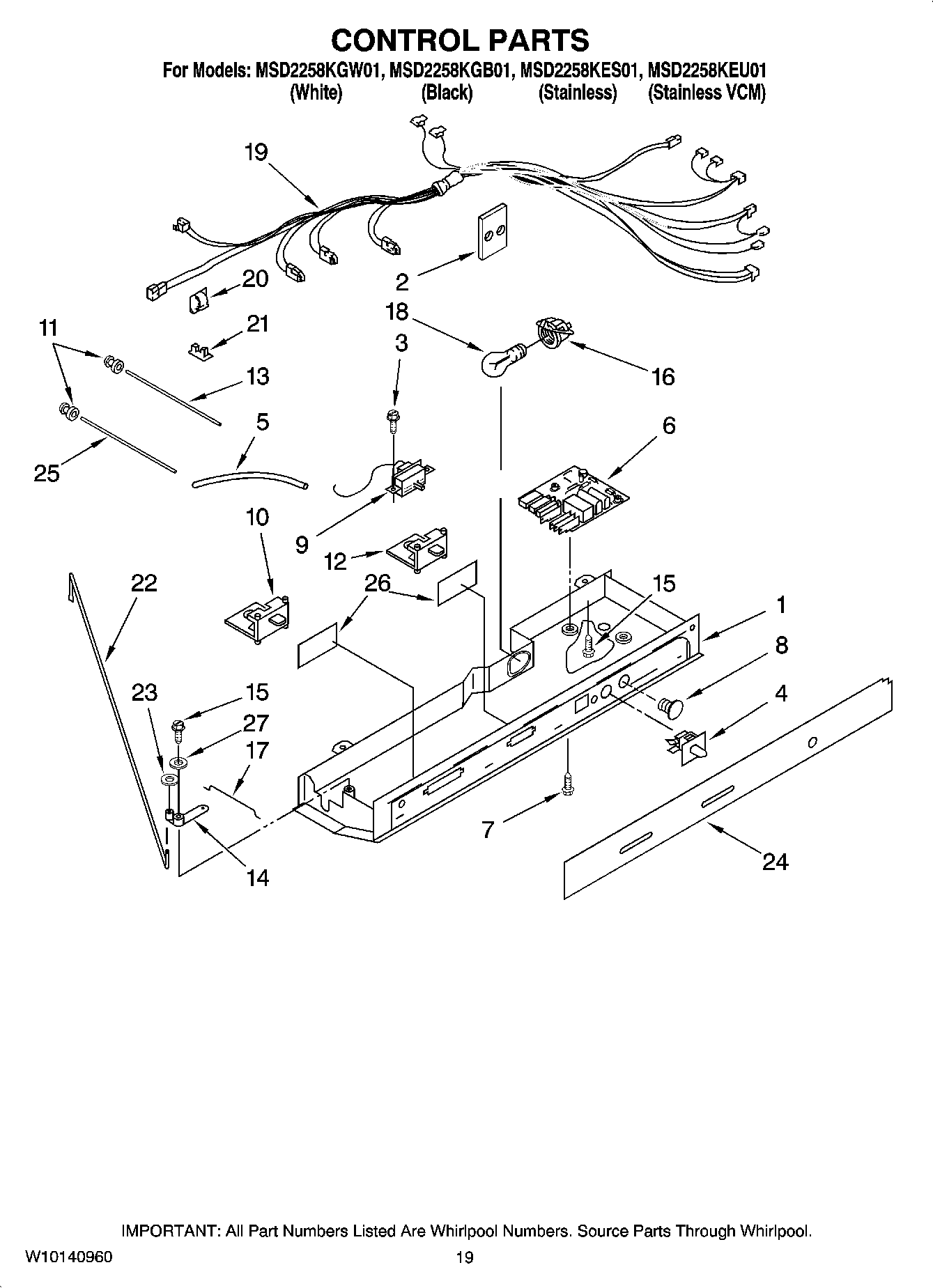

MSD2258KES01 11 – CONTROL PARTS

MSD2258KES01 11 – CONTROL PARTS

Written by

in

MSD2258KES01 11 – CONTROL PARTS

Products

PositionProduct
1MAY 2181738
2MAY 2172931
3Screw
4MAY 2149705
5TUBE-BARRIER, THERMOSTAT
6Control Board Assembly
7Screw
8MAY 940014
9Thermostat
10MAY 2181741
11Grommet, Light Bar (4)
12MAY 2161466
13MAY 2179920
14Pivot Arm
15MAY 627068
16Socket, Light
17CONNECTING ROD, SHORT
18MAY 2255743
19MAY 2187868
20MAY 1115374
21Clip-Wiring
22Connecting Rod
23Fastner, Push-On
24MAY 2326277
25LIGHT BAR FC
26MAY 2175513
27Spring Washer
