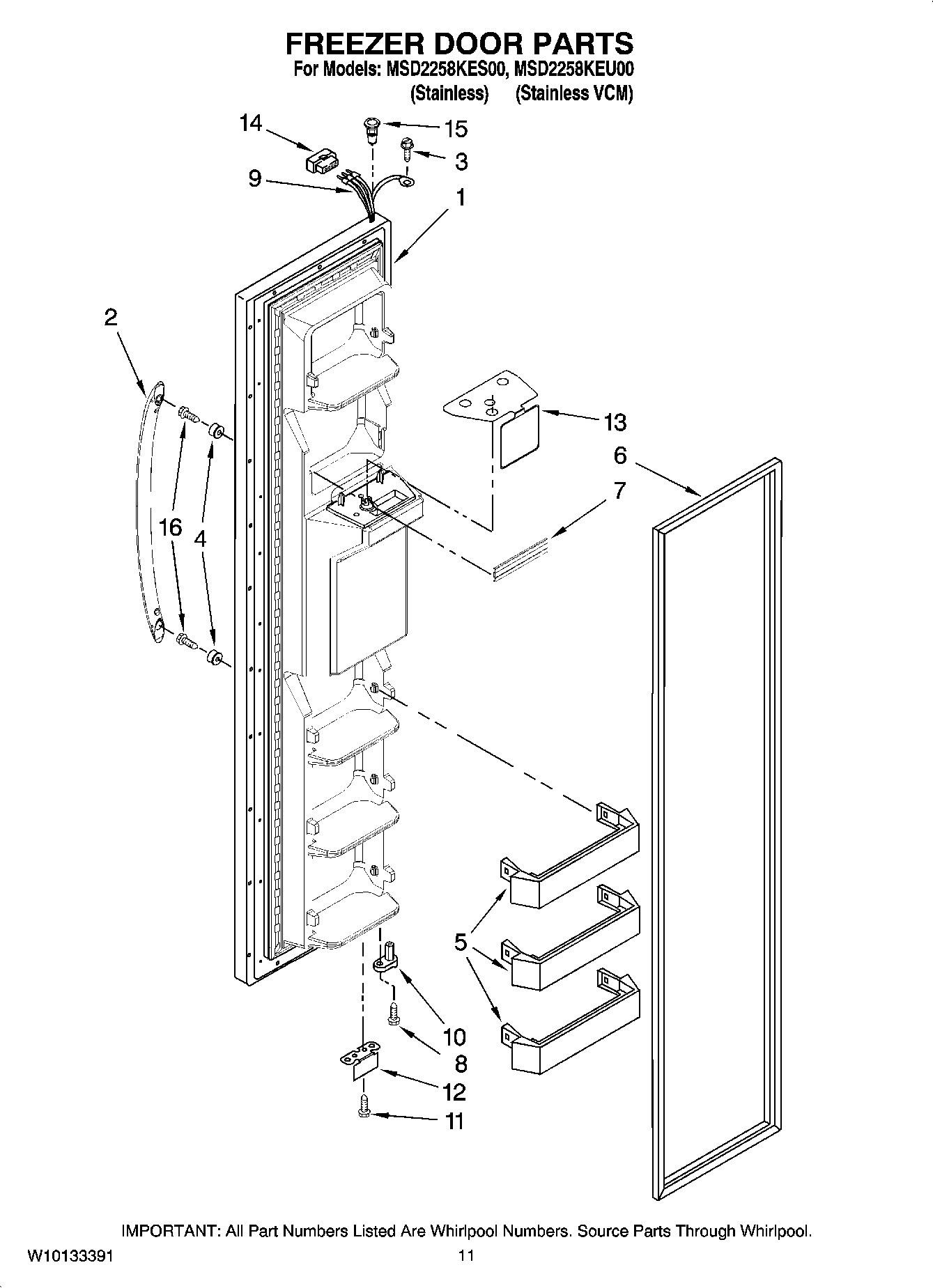

MSD2258KEU00 07 – FREEZER DOOR PARTS

Written by

Products

Position	Product
1	MAY W10120277
1	MAY W10120270
2	W11690159 Whirlpool Handle
3	MAY 488500
4	Stud
5	Trivet, FC
6	Door Gasket, Magnetic (Black)
7	MAY 2212375
8	MAY 3400012
9	MAY 2187725
10	MAY 2182179
11	MAY 489420
12	MAY 2206629B
13	MAY 2304896
14	Connector
15	Thimble-Top (For White, Black, Biscuit and Stainless VCM Models)
15	THIMBLE
16	Screw
