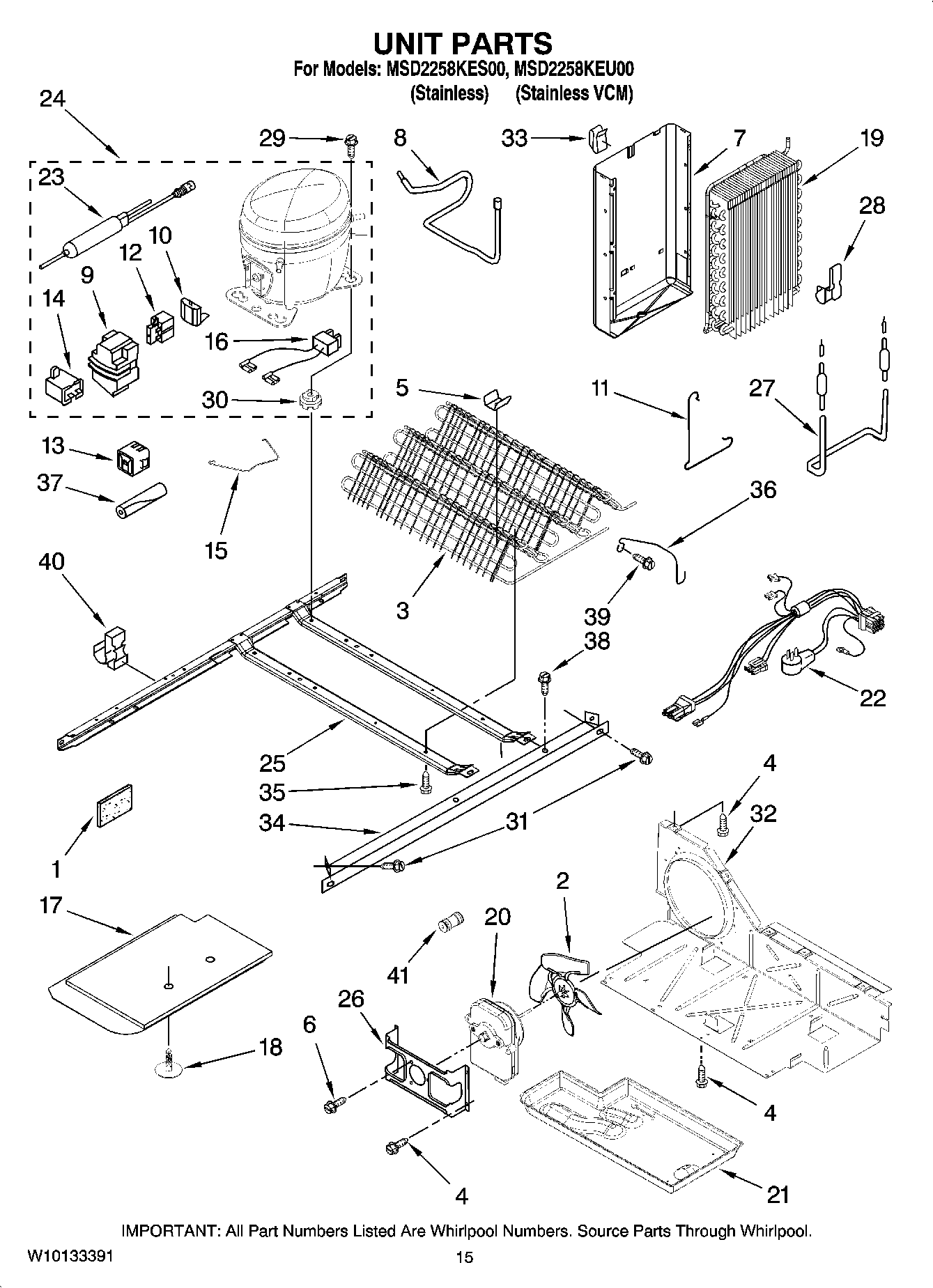

MSD2258KEU00 09 – UNIT PARTS

Products

Position	Product
1	SEALER, INSULATION
2	MAY 2225834
3	Condenser Assembly (Also Order 7)
4	Screw (3)
5	MAY 2216914
6	MAY 8533993
7	MAY 2217195
8	Tube Suction
9	COVER ((SERVICE ONLY))
10	MAY 2187145
11	Clip
12	Start Relay (Service Only)
13	Start-Device, Combination (Start Relay and Overload) (Service)
14	Capacitor (Service)
15	MAY 2223314
16	Wire Assembly (Service Only)
17	UNIT COVER BOTTOM
18	MAY 489396
19	MAY 2188822
20	MOTOR, CONDENSOR
21	MAY 1105523
22	Unit, Harness
23	MAY 2319825
23	Drier
24	Compressor (Includes Items 11, 13, 20, & 21) (Also Order 876765 Tube Kit)
25	Frame, Unit Mounting
26	MAY 2181929
27	MAY 2188174
28	MAY 2304287
29	MAY 489373
30	Grommet (Production)
30	MAY 4387558
31	MAY 489340
32	MAY 2196202
33	MAY 2155547
34	MAY 2149718
35	MAY 8281232
36	MAY 2186496
37	Sleeve, Pressure Switch Hose
38	MAY 489427
39	MAY 489478
40	Clip, Wire
41	Valve, Access (3/4``)
41	VALVE, ACCESS (3/8``)
41	12658531CQ Whirlpool Refrigerator DOR-FIP Board
41	VALVE, ACCESS (1/4``)
41	Valve, Access (5/16``)
41	CONNECTOR, WATER
41	Valve, Access (5/8``)
41	Valve, Access (1/2``)
41	MAY 876764
