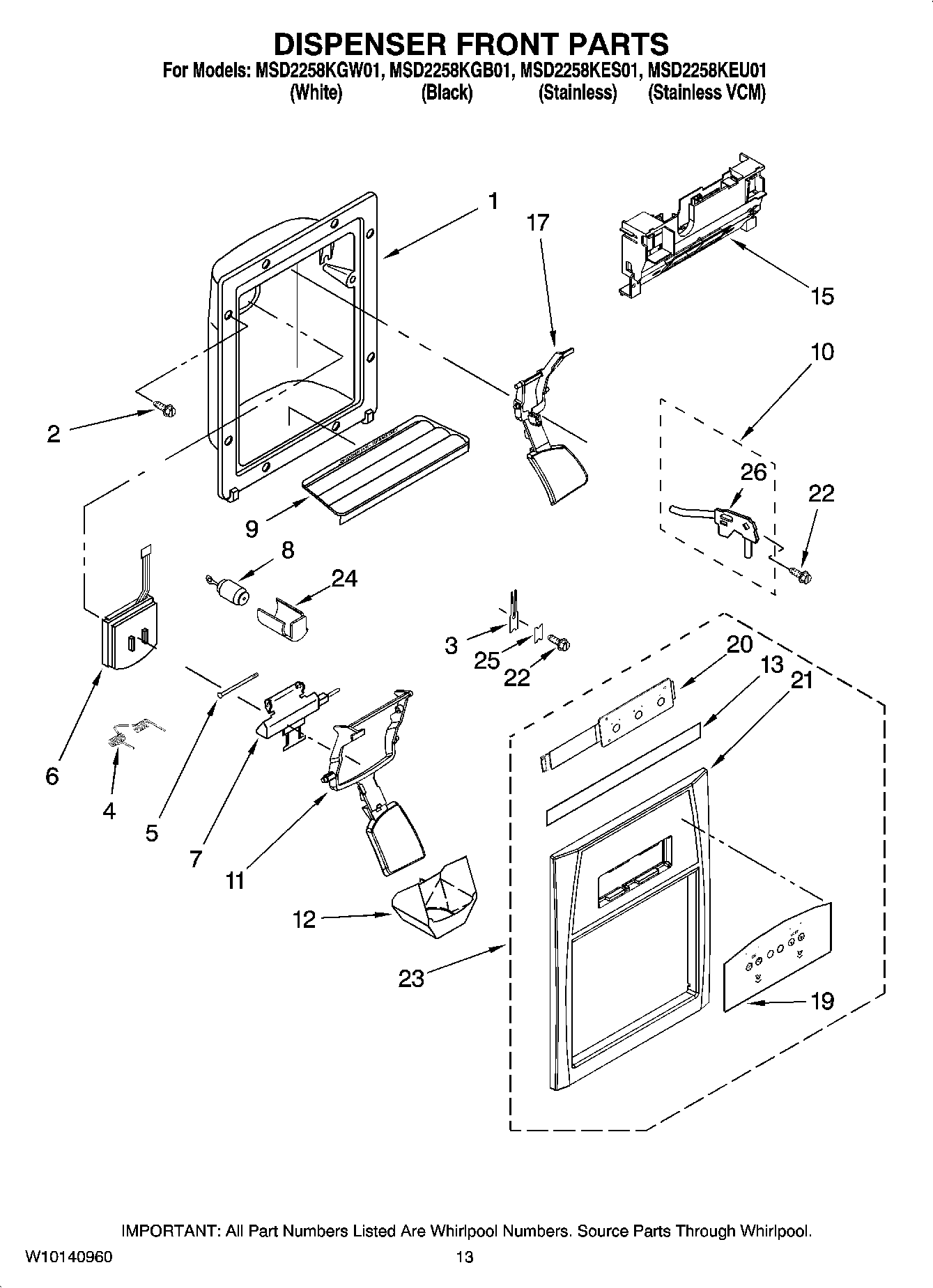

MSD2258KEU01 08 – DISPENSER FRONT PARTS

MSD2258KEU01 08 – DISPENSER FRONT PARTS

Written by

in

MSD2258KEU01 08 – DISPENSER FRONT PARTS

Products

PositionProduct
2Screw
3MAY 2194719
4MAY 2304772
5MAY 2196195
6MAY 2180353
7MAY 2304355
8MAY 2205686
9MAY 2206671W
9MAY 2206671B
10MAY 2304317
11Lever, Ice Dispenser (Black)
11Lever, Ice Dispenser (White)
12MAY 2180224
13MAY 2305571
15MAY 2323001
17Lever, Water Dispenser (Black)
17Lever, Water Dispenser (White)
22MAY 489000
23MAY W10120286
23MAY W10120285
24Sleeve, Delay Mechanism
25MAY 2195051
26MAY 2304673
