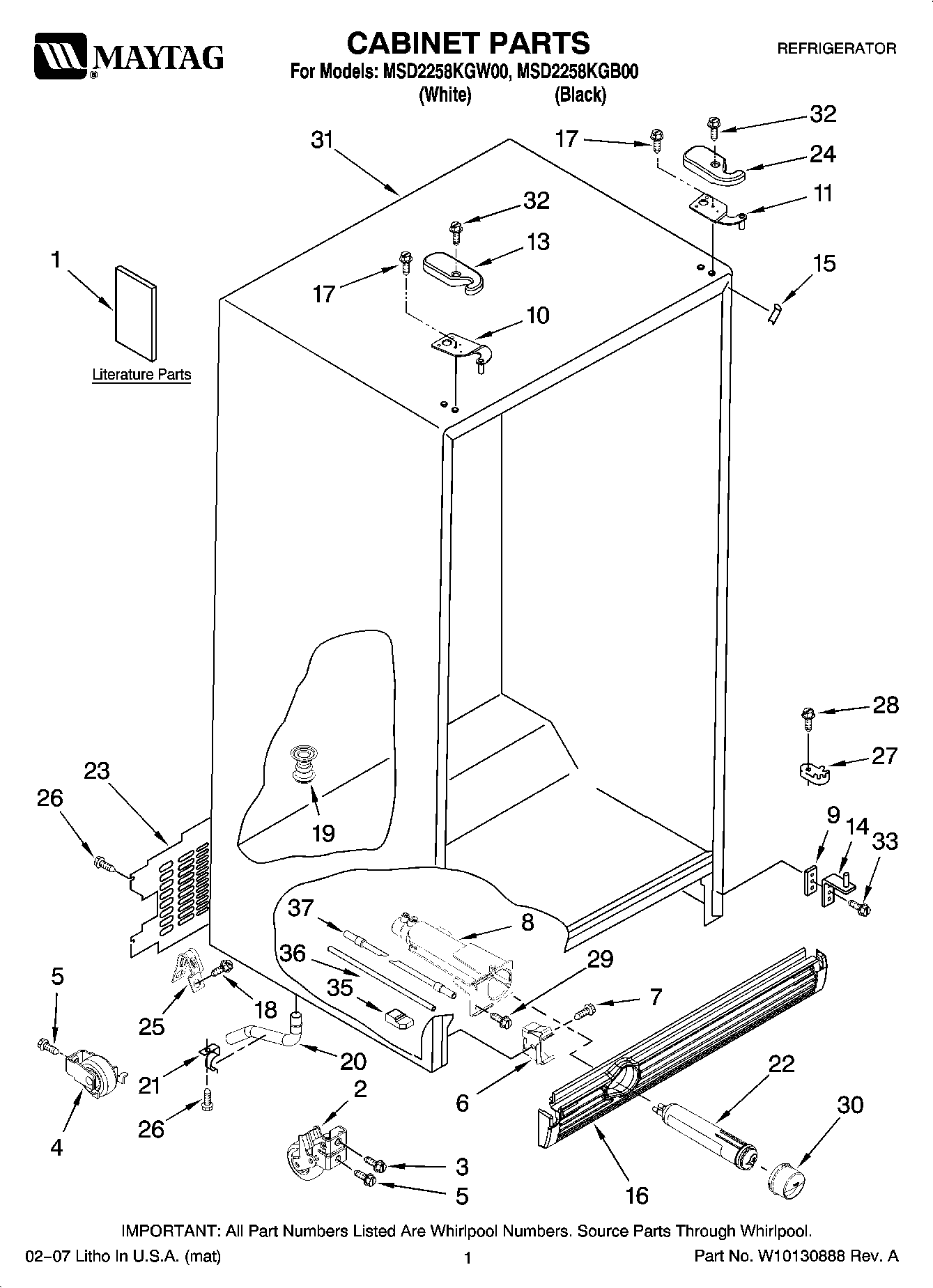

MSD2258KGB00 01 – CABINET PARTS

Products

Position	Product
1	MAY 2220407
1	Instruction Sheet, Door Removal
1	MAY 2305869
1	Use & Care Guide
1	MAY W10120265
2	MAY 2254628
3	MAY W10079910
4	MAY 2254625
5	MAY 489427
6	MAY 2155013
7	MAY 489478
8	MAY 2186443
9	Shim (2)
10	HINGE TOP, FC
11	HINGE TOP RC
13	HINGE COVER FC (WHITE)
13	Hinge Cover, FC (Apollo Gray)
13	HINGE COVER FC (BLACK)
14	MAY 2304322
15	MAY 2304848
15	MAY 2304846
16	Grille (Black)
16	MAY 2198467W
17	MAY 489497
18	Screw (3)
19	MAY 2304888
20	Extension Tube
21	MAY 1108439
22	MAY 8212652
23	MAY 2188734
24	HINGE COVER RC (WHITE)
24	HINGE COVER RC (BLACK)
25	MAY 549193
26	MAY 489084
27	MAY 2155311
28	MAY 489483
29	MAY 489500
30	Cap, Water Filter (Black)
30	Cap, Water Filter (White)
32	MAY 8281227
33	Screw (4)
35	MAY 2186489
36	Tube, Filter Outlet
37	MAY 2319867
