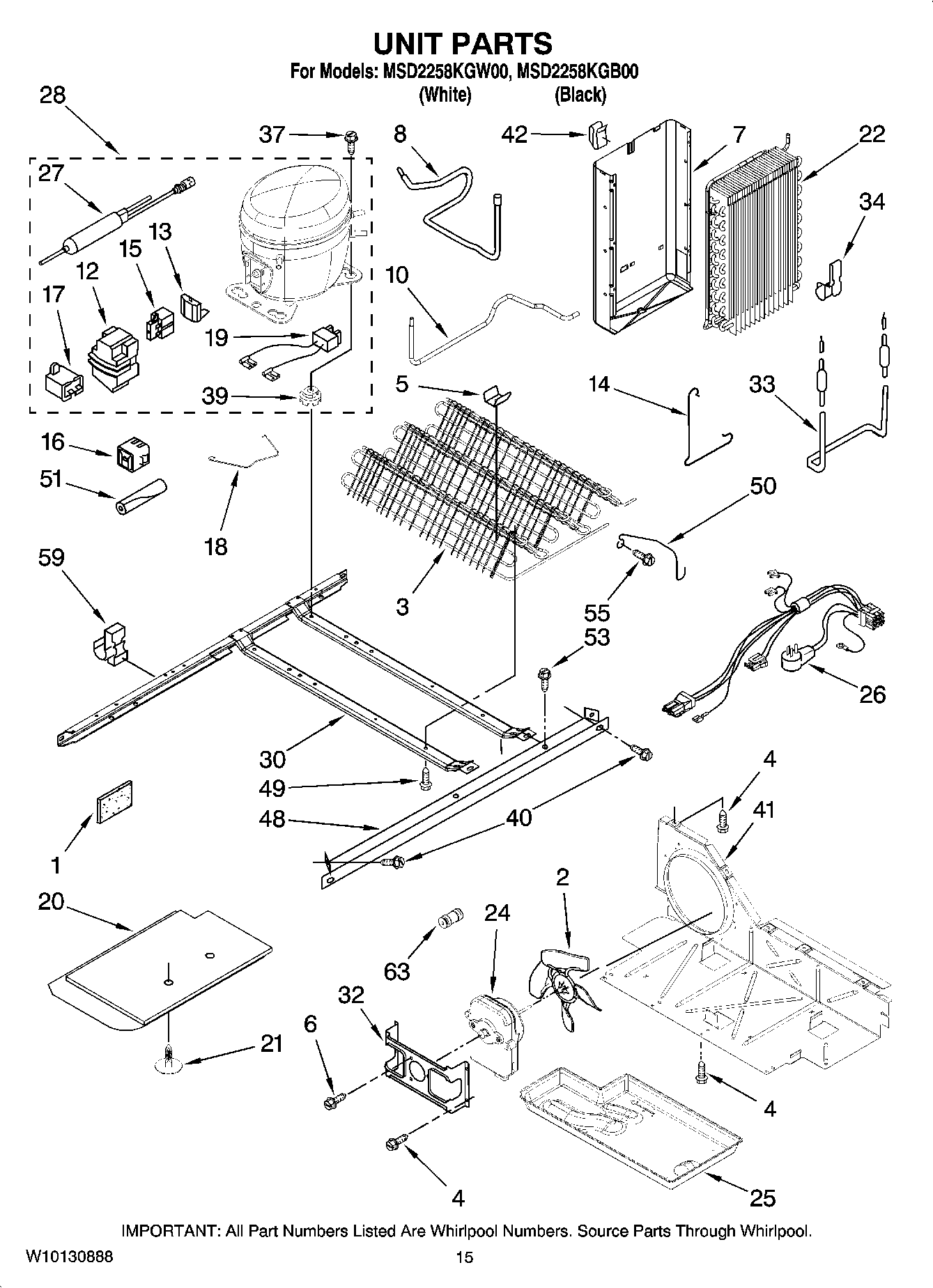

MSD2258KGB00 09 – UNIT PARTSadmin2025-04-26T13:14:42+00:00MSD2258KGB00 09 – UNIT PARTS
Products
| Position | Product |
|---|
| 1 | SEALER, INSULATION |
| 2 | MAY 2225834 |
| 3 | MAY 2304902 |
| 4 | Screw (3) |
| 5 | MAY 2216914 |
| 6 | MAY 8533993 |
| 7 | MAY 2217195 |
| 8 | Tube Suction |
| 10 | MAY 2261599 |
| 12 | COVER ((SERVICE ONLY)) |
| 13 | MAY 2187145 |
| 14 | Clip |
| 15 | Start Relay (Service Only) |
| 16 | MAY 2320152 |
| 17 | Capacitor (Service) |
| 18 | Strap, Bale |
| 19 | Wire Assembly (Service Only) |
| 20 | UNIT COVER BOTTOM |
| 21 | MAY 489396 |
| 22 | MAY 2188822 |
| 24 | MOTOR, CONDENSOR |
| 25 | MAY 1105523 |
| 26 | Unit, Harness |
| 27 | Drier |
| 27 | MAY 2319825 |
| 28 | MAY 2320135 |
| 30 | Frame, Unit Mounting |
| 32 | MAY 2181929 |
| 33 | MAY 2188174 |
| 34 | MAY 2304287 |
| 37 | MAY 489373 |
| 39 | Grommet (Production) |
| 39 | MAY 4387558 |
| 40 | MAY 489340 |
| 41 | MAY 2196202 |
| 42 | MAY 2155547 |
| 48 | MAY 2149718 |
| 49 | MAY 8281232 |
| 50 | MAY 2186496 |
| 51 | Sleeve, Pressure Switch Hose |
| 53 | MAY 489427 |
| 55 | MAY 489478 |
| 59 | Clip, Wire |
| 63 | MAY 876764 |
| 63 | Valve, Access (5/16``) |
| 63 | VALVE, ACCESS (3/8``) |
| 63 | Valve, Access (1/2``) |
| 63 | CONNECTOR, WATER |
| 63 | 12658531CQ Whirlpool Refrigerator DOR-FIP Board |
| 63 | Valve, Access (3/4``) |
| 63 | Valve, Access (5/8``) |
| 63 | VALVE, ACCESS (1/4``) |
