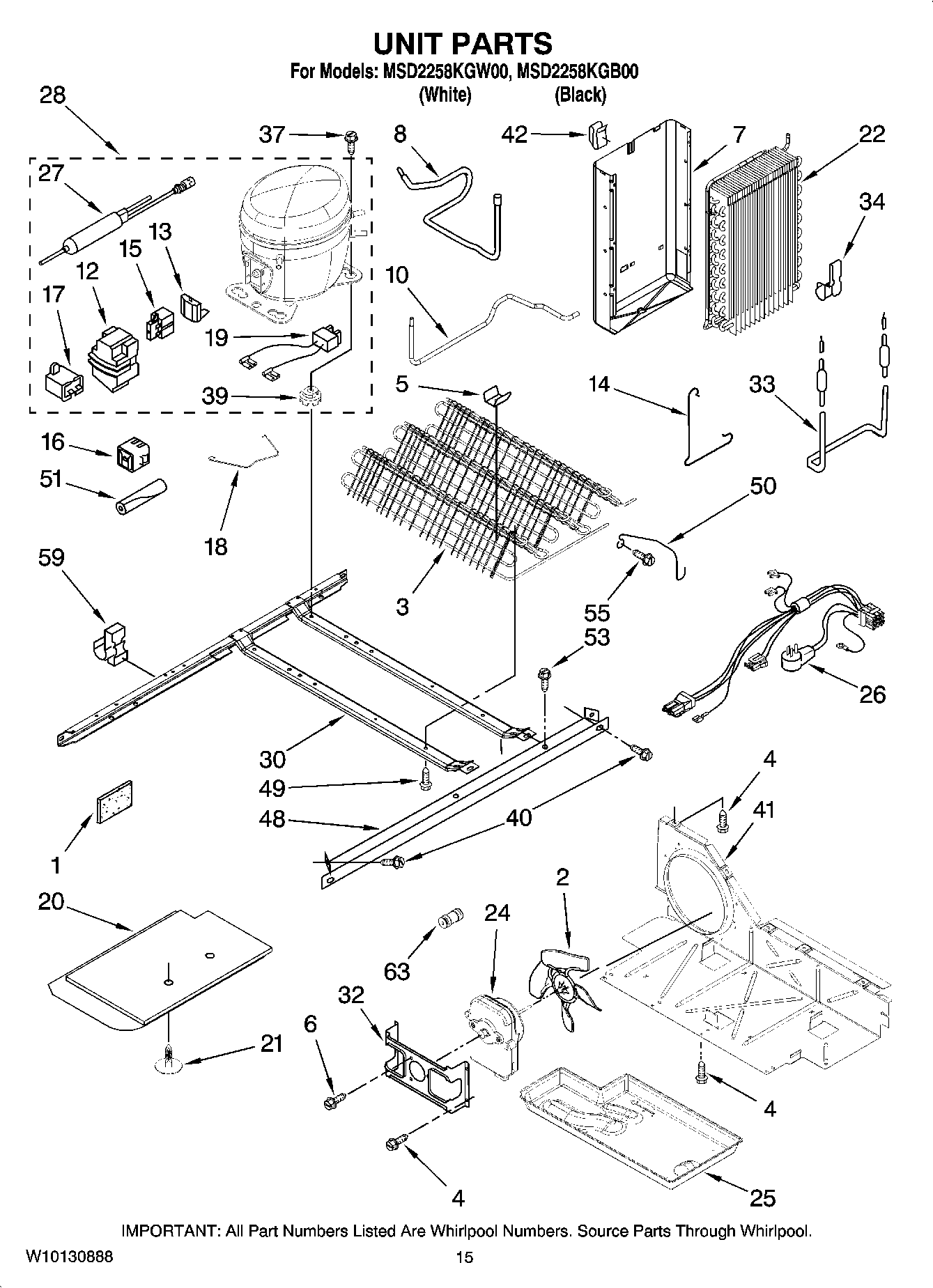

MSD2258KGW00 09 – UNIT PARTS

Products

Position	Product
1	SEALER, INSULATION
2	MAY 2225834
3	MAY 2304902
4	Screw (3)
5	MAY 2216914
6	MAY 8533993
7	MAY 2217195
8	Tube Suction
10	MAY 2261599
12	COVER ((SERVICE ONLY))
13	MAY 2187145
14	Clip
15	Start Relay (Service Only)
16	MAY 2320152
17	Capacitor (Service)
18	Strap, Bale
19	Wire Assembly (Service Only)
20	UNIT COVER BOTTOM
21	MAY 489396
22	MAY 2188822
24	MOTOR, CONDENSOR
25	MAY 1105523
26	Unit, Harness
27	Drier
27	MAY 2319825
28	MAY 2320135
30	Frame, Unit Mounting
32	MAY 2181929
33	MAY 2188174
34	MAY 2304287
37	MAY 489373
39	Grommet (Production)
39	MAY 4387558
40	MAY 489340
41	MAY 2196202
42	MAY 2155547
48	MAY 2149718
49	MAY 8281232
50	MAY 2186496
51	Sleeve, Pressure Switch Hose
53	MAY 489427
55	MAY 489478
59	Clip, Wire
63	MAY 876764
63	Valve, Access (5/16``)
63	VALVE, ACCESS (3/8``)
63	Valve, Access (1/2``)
63	CONNECTOR, WATER
63	12658531CQ Whirlpool Refrigerator DOR-FIP Board
63	Valve, Access (3/4``)
63	Valve, Access (5/8``)
63	VALVE, ACCESS (1/4``)
