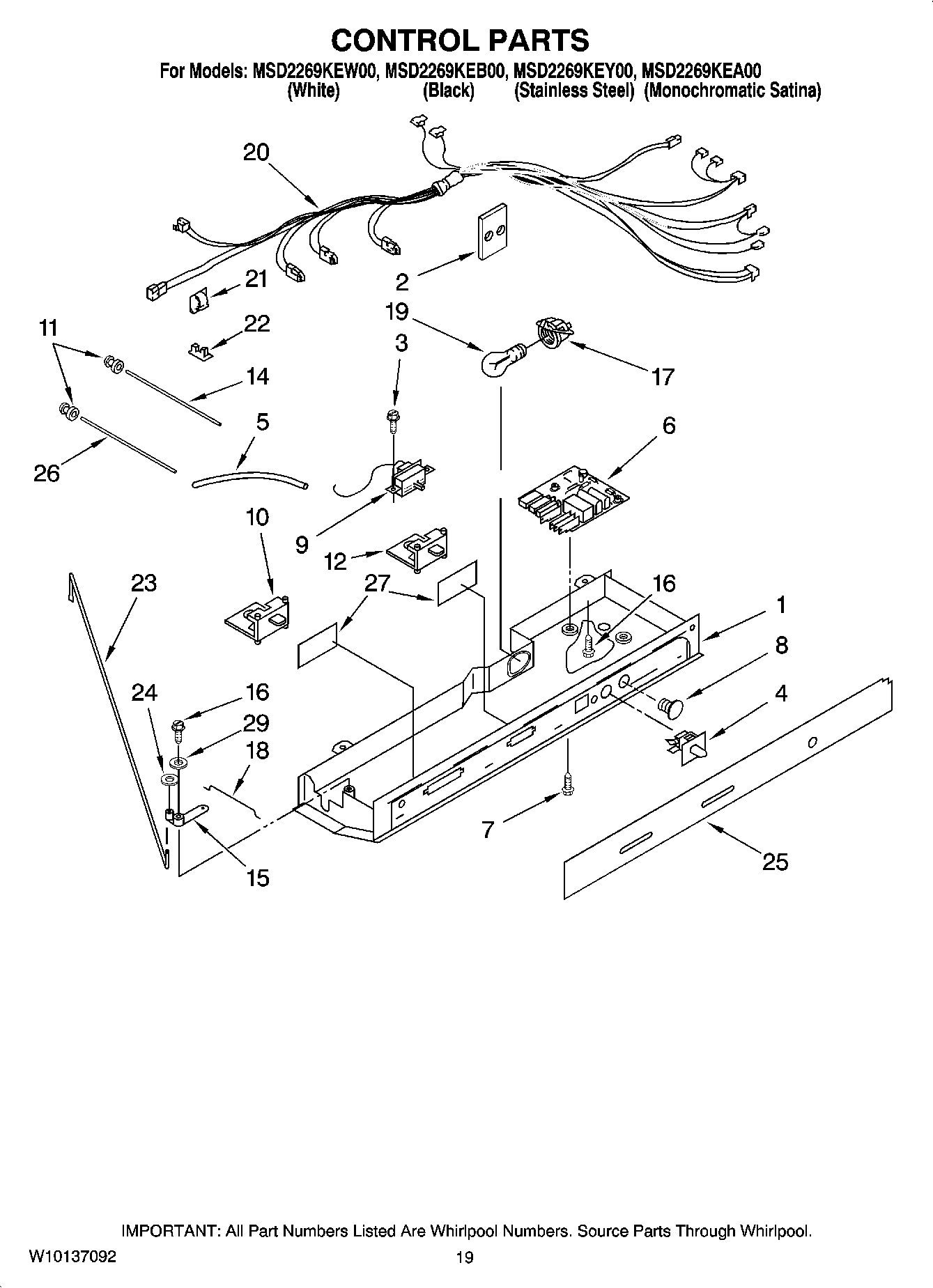

MSD2269KEA00 11 – CONTROL PARTS

MSD2269KEA00 11 – CONTROL PARTS

Written by

in

MSD2269KEA00 11 – CONTROL PARTS

Products

PositionProduct
1MAY 2181738
2MAY 2172931
3Screw
4MAY 2149705
5TUBE-BARRIER, THERMOSTAT
6Control Board Assembly
7Screw
8MAY 940014
9Thermostat
10MAY 2181741
11Grommet, Light Bar (4)
12MAY 2161466
14MAY 2179920
15Pivot Arm
16MAY 627068
17Socket, Light
18CONNECTING ROD, SHORT
19MAY 2255743
20MAY 2187868
21MAY 1115374
22Clip-Wiring
23Connecting Rod
24Fastner, Push-On
25MAY 2326277
26LIGHT BAR FC
27MAY 2175513
29Spring Washer
