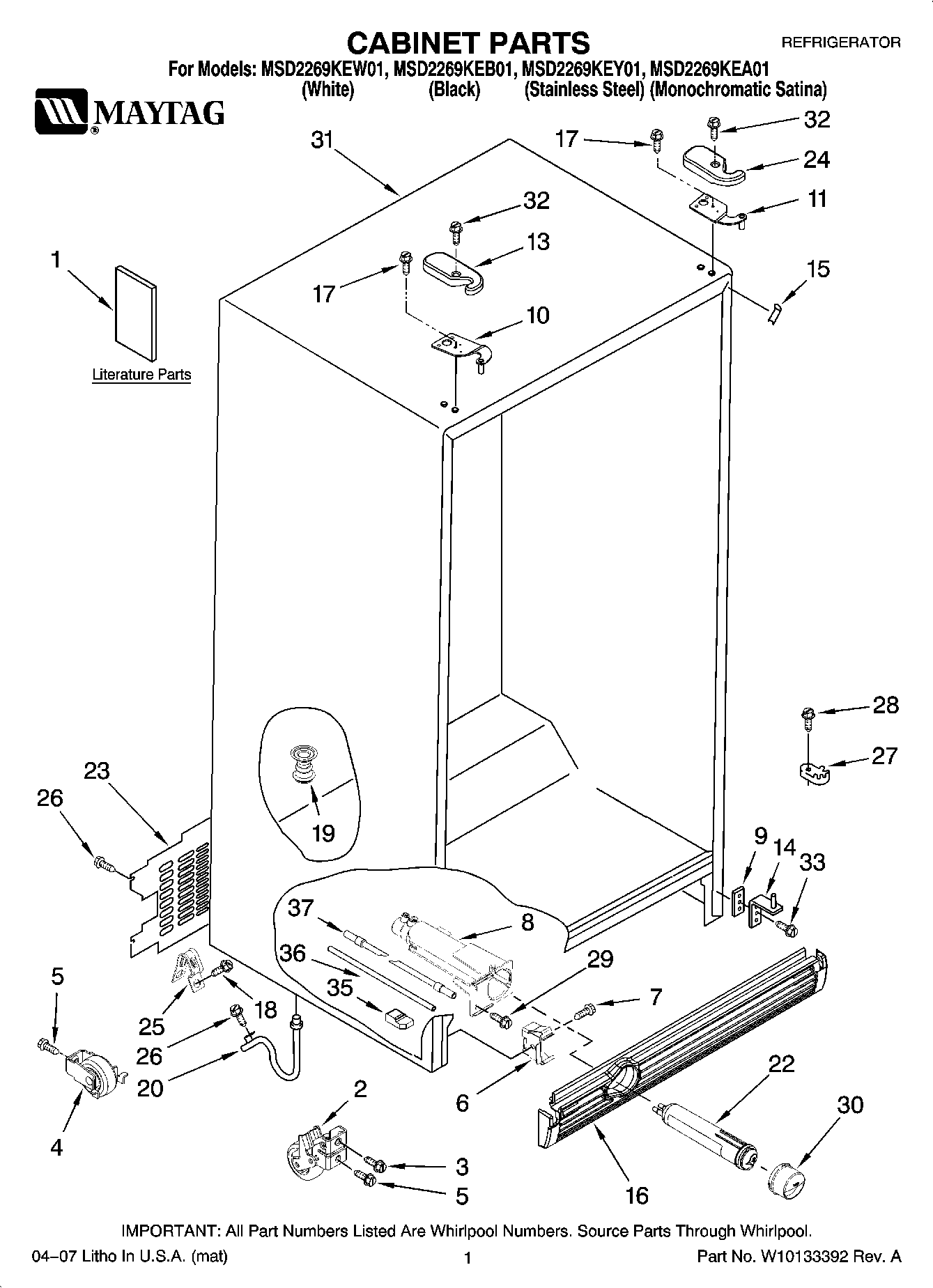

MSD2269KEA01 01 – CABINET PARTS

Products

Position	Product
1	Instruction Sheet, Door Removal
1	MAY 2305869
1	MAY 2220407
1	MAY W10130367
1	Use & Care Guide
2	MAY 2254628
3	MAY W10079910
4	MAY 2254625
5	MAY 489427
6	MAY 2155013
7	MAY 489478
8	MAY 2186443
9	Shim (2)
10	HINGE TOP, FC
11	HINGE TOP RC
13	Hinge Cover, FC (Apollo Gray)
13	HINGE COVER FC (BLACK)
13	HINGE COVER FC (WHITE)
14	MAY 2304322
15	MAY 2304848
15	MAY 2315169
15	MAY 2304846
16	MAY 2198467AP
16	Grille (Black)
16	MAY 2198467W
17	MAY 489497
18	Screw (3)
19	MAY 2304888
20	MAY 2304937
22	MAY 8212652
23	MAY 2188734
24	HINGE COVER RC (BLACK)
24	MAY 2203408AP
24	HINGE COVER RC (WHITE)
25	MAY 549193
26	MAY 489084
27	MAY 2155311
28	MAY 489483
29	MAY 489500
30	Cap, Water Filter (White)
30	Cap, Water Filter (Black)
30	MAY 2186494AP
32	MAY 8281227
33	Screw (4)
35	MAY 2186489
36	MAY 2304708
37	MAY 2319867
