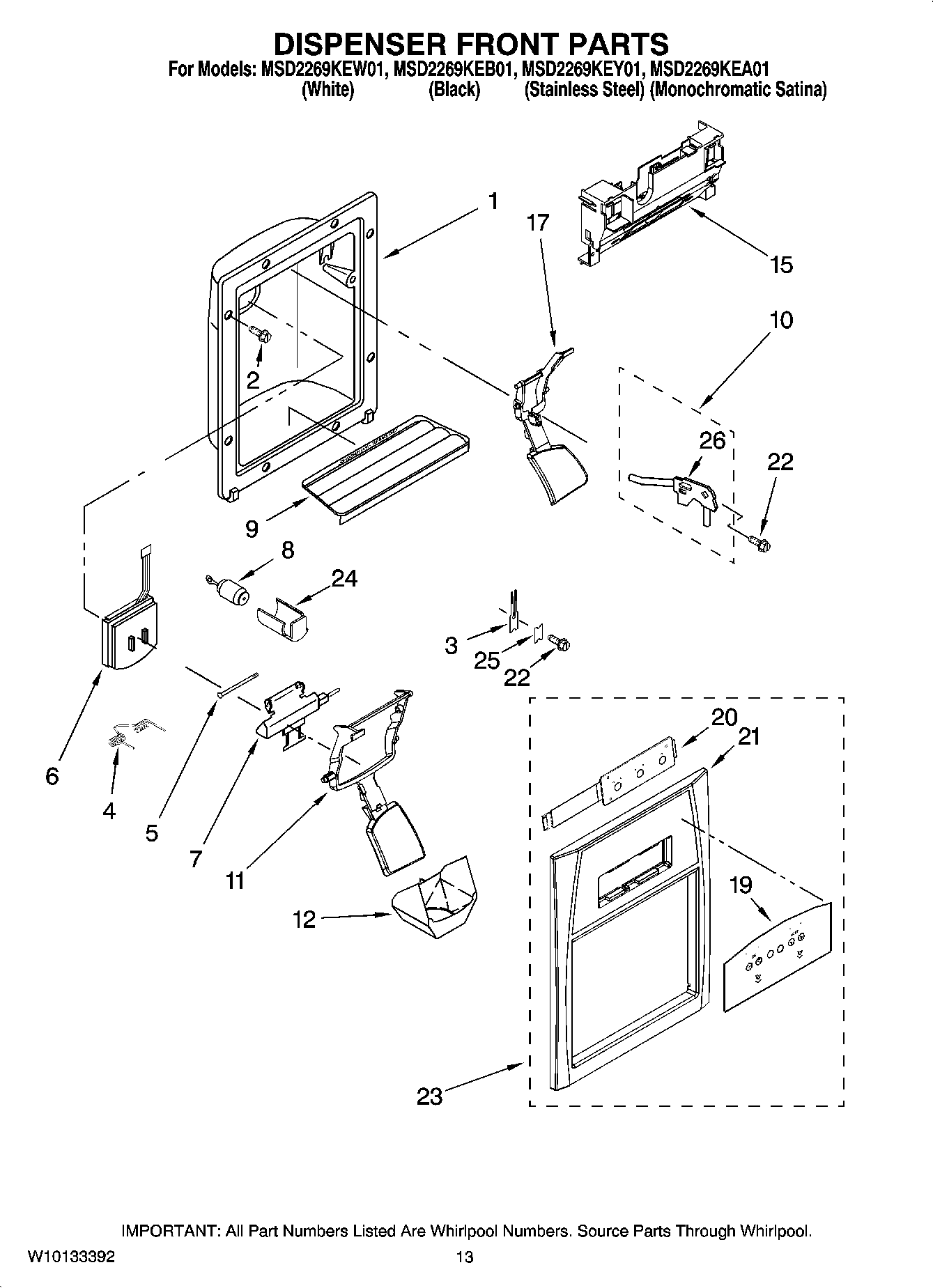

MSD2269KEA01 08 – DISPENSER FRONT PARTS

MSD2269KEA01 08 – DISPENSER FRONT PARTS

Written by

in

MSD2269KEA01 08 – DISPENSER FRONT PARTS

Products

PositionProduct
2Screw
3MAY 2194719
4MAY 2304772
5MAY 2196195
6MAY 2180353
7MAY 2304355
8MAY 2205686
9MAY 2207048W
9Grille, Overflow (Black)
9MAY 2207048AP
10MAY 2304317
11MAY 2203562AP
11Lever, Ice Dispenser (White)
11Lever, Ice Dispenser (Black)
12MAY 2180224
15MAY 2323001
17Lever, Water Dispenser (Black)
17MAY 2203561AP
17Lever, Water Dispenser (White)
22MAY 489000
23Front Cover Assembly (Includes Items 15, 16 & 17) (Universal Silver)
23Front Cover Assembly (Includes Items 15, 16 & 17) (Black)
23Front Cover Assembly (Includes Items 15, 16 & 17) (White)
24Sleeve, Delay Mechanism
25MAY 2195051
26MAY 2304673
