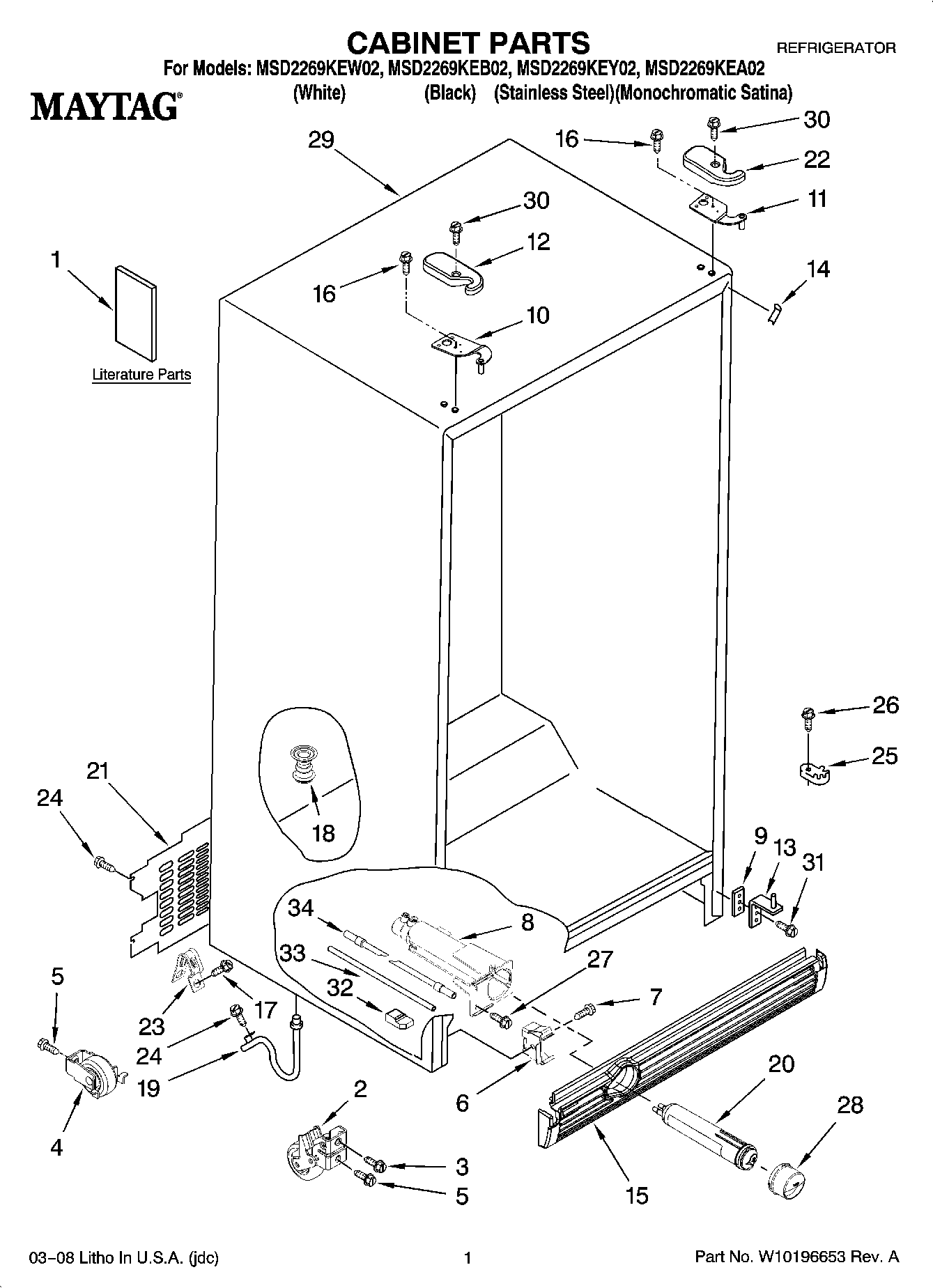

MSD2269KEA02 01 – CABINET PARTS

Products

Position	Product
1	MAY 2220407
1	MAY 2326267
1	Instruction Sheet, Door Removal
1	MAY W10142176
1	MAY W10182438
2	MAY 4386774
3	MAY 3400517
4	MAY 2196236
5	MAY 489427
6	MAY 2155013
7	MAY 489478
8	MAY 2186443
9	Shim (2)
10	HINGE TOP, FC
11	HINGE TOP RC
12	Hinge Cover, FC (Apollo Gray)
12	HINGE COVER FC (BLACK)
12	HINGE COVER FC (WHITE)
13	MAY 2304322
14	MAY 2304846
14	MAY 2304848
14	MAY 2315169
15	Grille (Black)
15	MAY 2198467AP
15	MAY 2198467W
16	MAY 489497
17	Screw (3)
18	MAY 2304888
19	MAY 2304937
20	MAY 8212652
21	MAY 2188734
22	MAY 2203408AP
22	HINGE COVER RC (WHITE)
22	HINGE COVER RC (BLACK)
23	MAY 549193
24	MAY 489084
25	MAY 2155311
26	MAY 489483
27	MAY 489500
28	Cap, Water Filter (White)
28	Cap, Water Filter (Black)
28	MAY 2186494AP
30	MAY 8281227
31	Screw (4)
32	MAY 2186489
33	MAY 2255153
34	MAY 2319867
