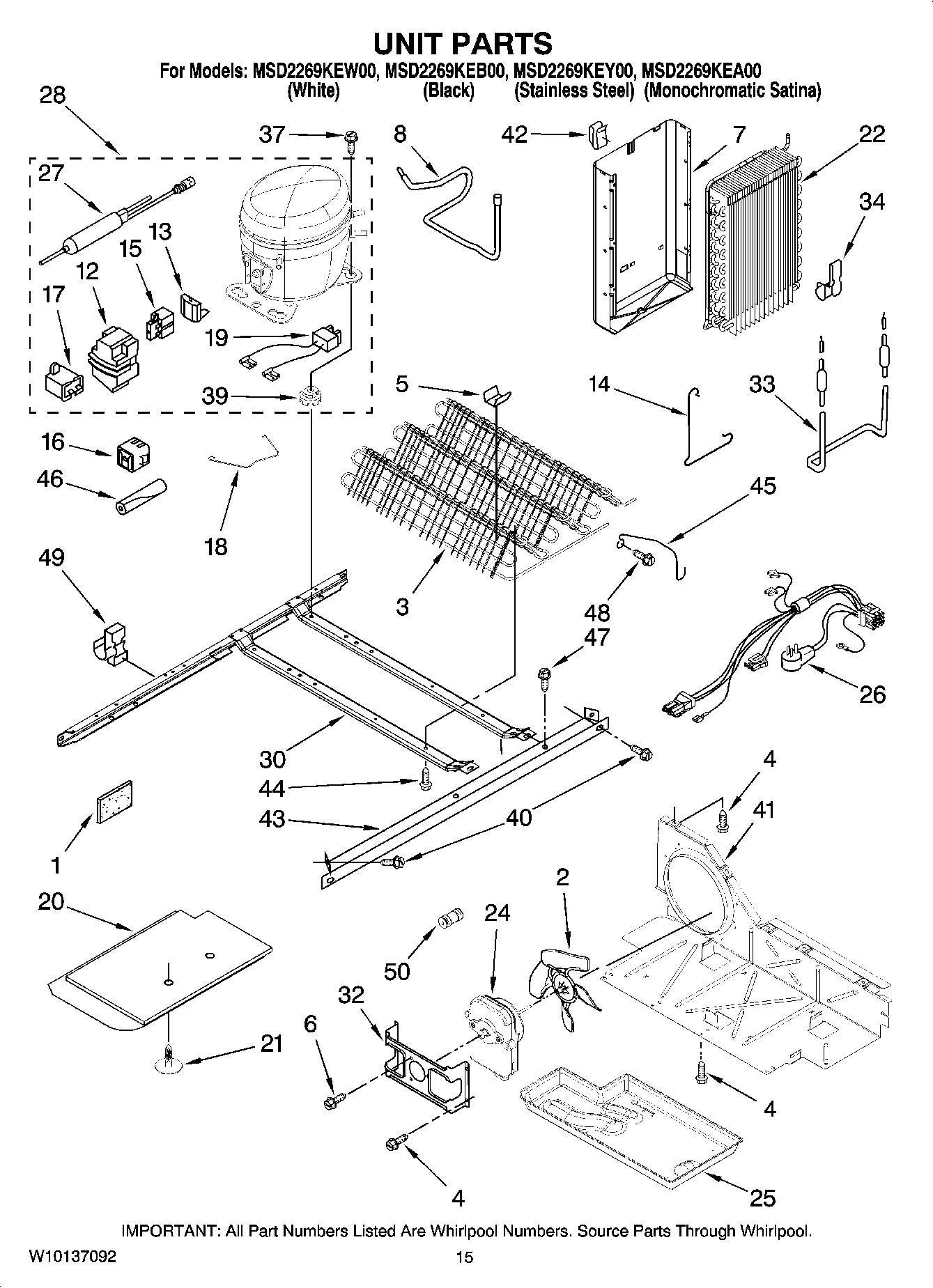

MSD2269KEB00 09 – UNIT PARTS

Products

Position	Product
1	SEALER, INSULATION
2	MAY 2225834
3	Condenser Assembly (Also Order 7)
4	Screw (3)
5	MAY 2216914
6	MAY 8533993
7	MAY 2217195
8	Tube Suction
12	COVER ((SERVICE ONLY))
13	MAY 2187145
14	Clip
15	Start Relay (Service Only)
16	Start-Device, Combination (Start Relay and Overload) (Service)
17	Capacitor (Service)
18	MAY 2223314
19	Wire Assembly (Service Only)
20	UNIT COVER BOTTOM
21	MAY 489396
22	MAY 2188822
24	MOTOR, CONDENSOR
25	MAY 1105523
26	Unit, Harness
27	MAY 2319825
27	Drier
28	Compressor (Includes Items 11, 13, 20, & 21) (Also Order 876765 Tube Kit)
30	Frame, Unit Mounting
32	MAY 2181929
33	MAY 2188174
34	MAY 2304287
37	MAY 489373
39	Grommet (Production)
39	MAY 4387558
40	MAY 489340
41	MAY 2196202
42	MAY 2155547
43	MAY 2149718
44	MAY 8281232
45	MAY 2186496
46	Sleeve, Pressure Switch Hose
47	MAY 489427
48	MAY 489478
49	Clip, Wire
50	Valve, Access (3/4“)
50	VALVE, ACCESS (3/8“)
50	12658531CQ Whirlpool Refrigerator DOR-FIP Board
50	VALVE, ACCESS (1/4“)
50	Valve, Access (5/16“)
50	CONNECTOR, WATER
50	Valve, Access (5/8“)
50	Valve, Access (1/2“)
50	MAY 876764
