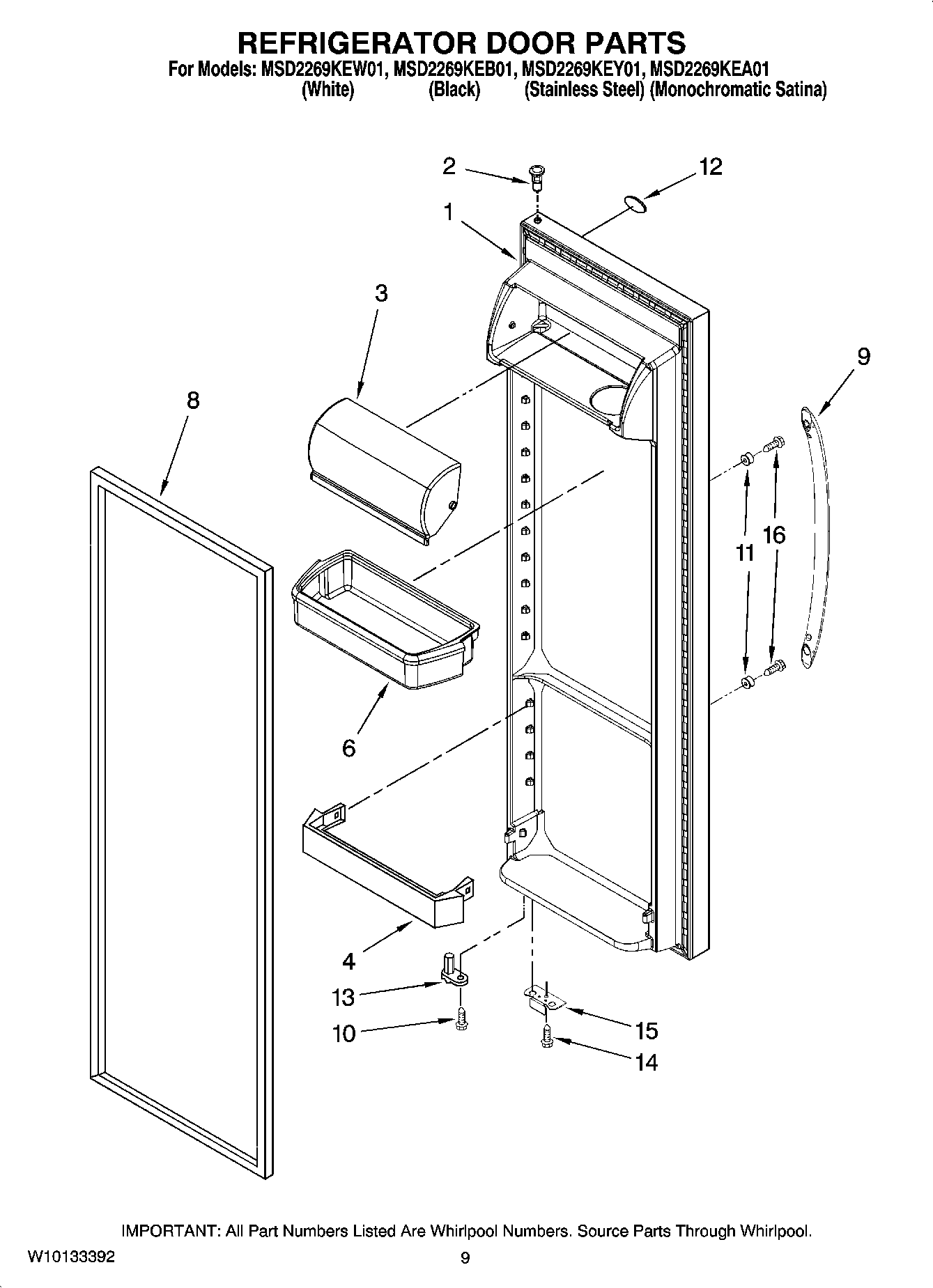

MSD2269KEB01 06 – REFRIGERATOR DOOR PARTS

MSD2269KEB01 06 – REFRIGERATOR DOOR PARTS

Written by

in

MSD2269KEB01 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1MAY W10120328
1MAY W10120329
1MAY W10120330
1MAY W10120331
2THIMBLE
3Door, Compartment
4Shelf Bin
6Shelf Bin (3)
8MAY 2221300
8Door Gasket, Magnetic (Black)
8MAY 2326336
9W11690159 Whirlpool Handle
913004701W Whirlpool Refrigerator Handle
10MAY 3400012
11Stud
12MAY 13035001
13DOOR CLOSER
14MAY 489420
15Bracket, Door Stop (Zinc)
15Bracket, Door Stop (Black)
16Screw
