MSD2269KEB02 07 – FREEZER DOOR PARTS – Aparts

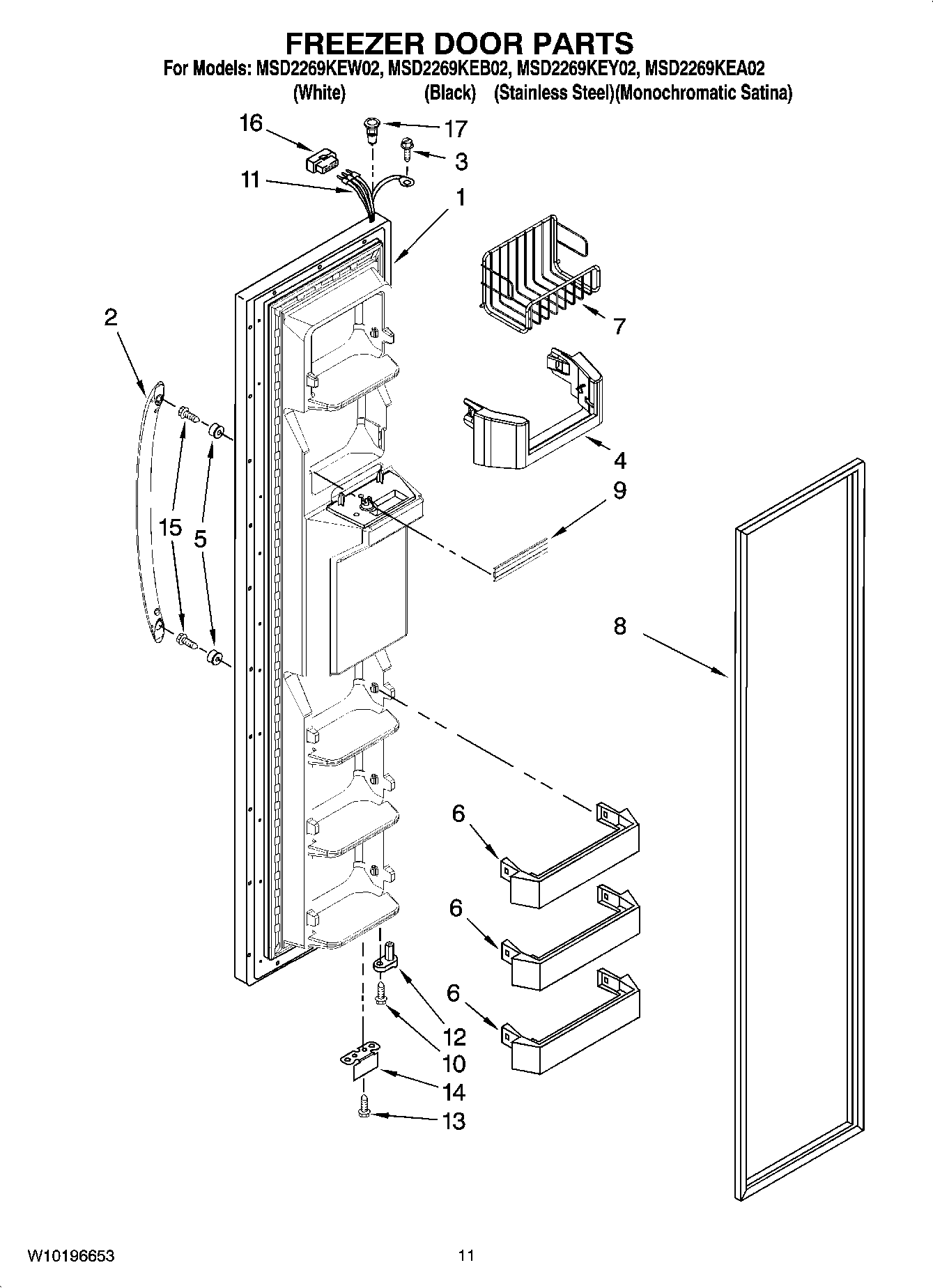

MSD2269KEB02 07 – FREEZER DOOR PARTS

Products

Position	Product
1	MAY W10131235
1	MAY W10131234
1	MAY W10131233
1	MAY W10131232
2	HANDLE, DOOR (WHITE)
2	MAY 13004701B
2	Handle, Assy (Stainless Steel)
3	MAY 488500
4	Trivet, Tilt Out
5	Stud
6	Trivet, FC
7	Basket, Tilt Out
8	MAY 2326337
8	Door Gasket, Magnetic (Black)
8	MAY 2221301
9	MAY 2212375
10	MAY 3400012
11	MAY 2187725
12	MAY 2182179
13	MAY 489420
14	Bracket, Door Stop (Black)
14	Bracket, Door Stop (Zinc)
15	Screw
16	Connector
17	THIMBLE, TOP
