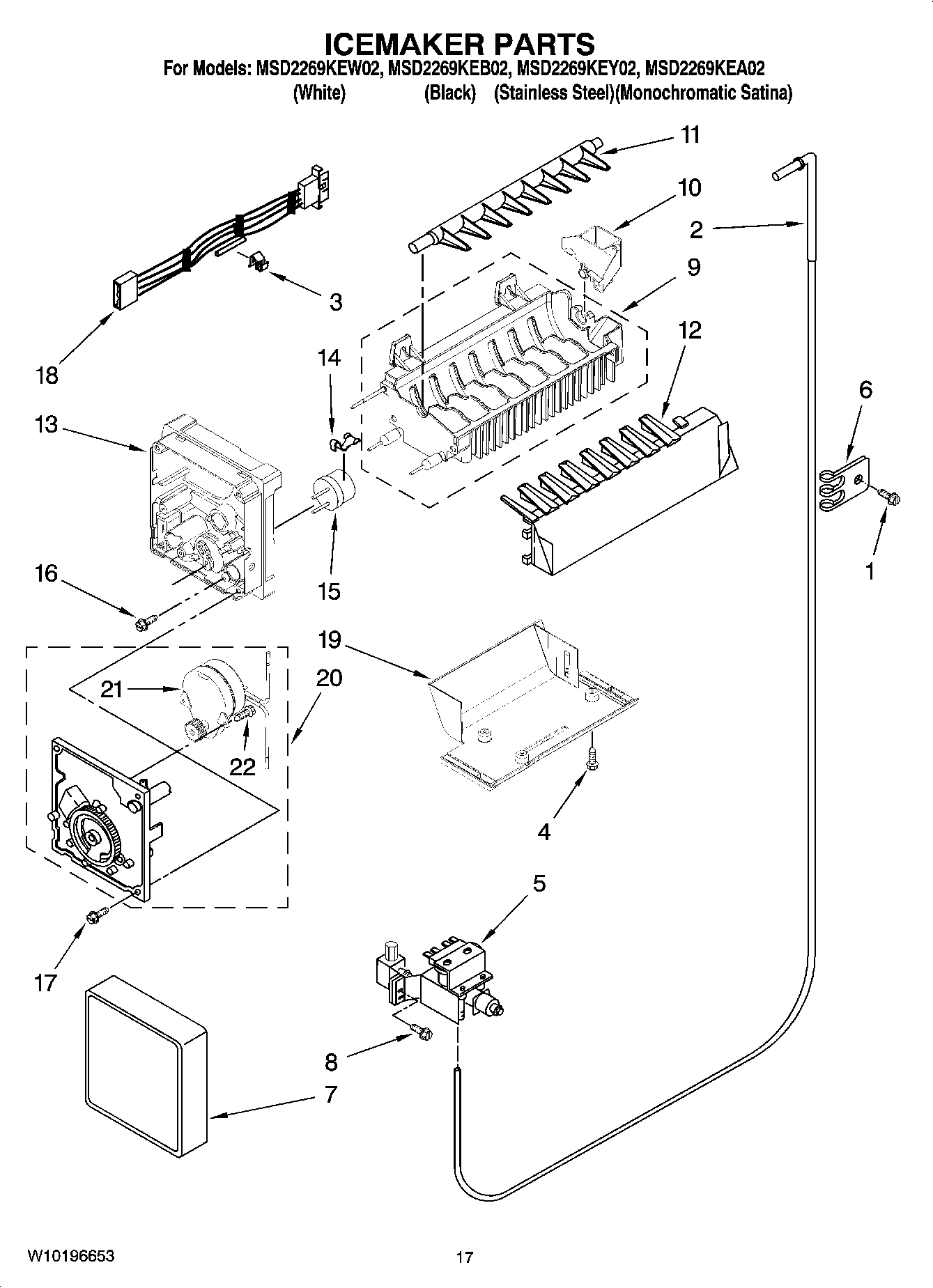

MSD2269KEB02 10 – ICEMAKER PARTS

Products

Position	Product
1	MAY 489084
2	Fitting, Water Tube
3	Clip
4	MAY 489478
5	MAY 2188709
6	Clip, Tube
7	MAY 2174358
8	MAY 488649
9	Mold & Heater Assembly (Also Order 542638)
10	Cup-Water Fill
11	MAY 626753
12	MAY 2212318
13	MAY 2194712
14	MAY 2315522
15	Thermostat (Also Order 542369 Cement Alumilastic)
16	MAY 8533917
17	MAY 489276
18	MAY 2187484
19	Bracket, Mounting
20	MAY 8201515
22	MAY 489136
100	MAY W10122503
