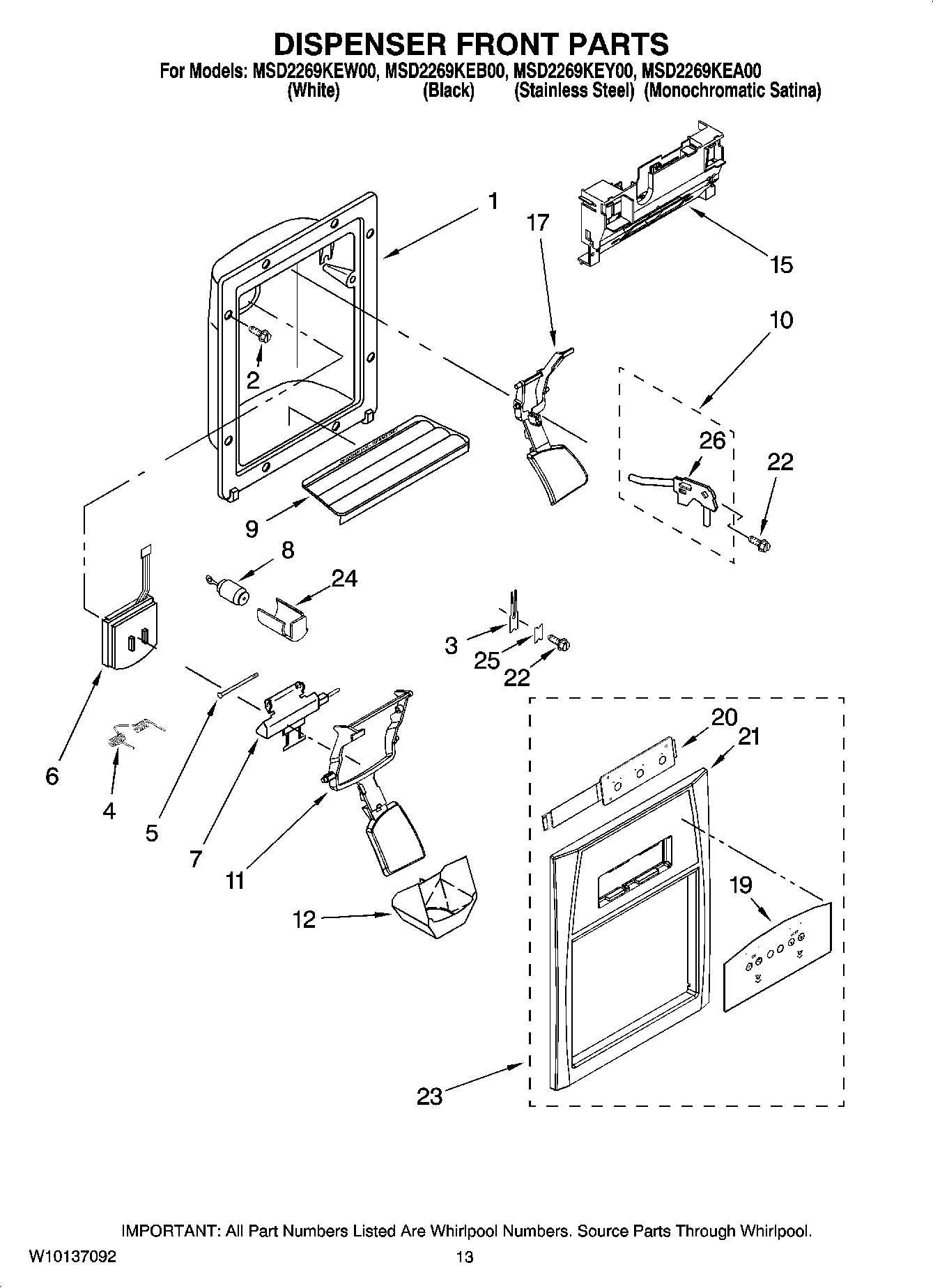

MSD2269KEY00 08 – DISPENSER FRONT PARTS

Products

Position	Product
2	Screw
3	MAY 2194719
4	MAY 2304772
5	MAY 2196195
6	MAY 2180353
7	MAY 2304355
8	MAY 2205686
9	MAY 2207048W
9	Grille, Overflow (Black)
9	MAY 2207048AP
10	MAY 2304317
11	MAY 2203562AP
11	Lever, Ice Dispenser (White)
11	Lever, Ice Dispenser (Black)
12	MAY 2180224
15	MAY 2323001
17	Lever, Water Dispenser (Black)
17	MAY 2203561AP
17	Lever, Water Dispenser (White)
22	MAY 489000
23	Front Cover Assembly (Includes Items 15, 16 & 17) (Universal Silver)
23	Front Cover Assembly (Includes Items 15, 16 & 17) (Black)
23	Front Cover Assembly (Includes Items 15, 16 & 17) (White)
24	Sleeve, Delay Mechanism
25	MAY 2195051
26	MAY 2304673
