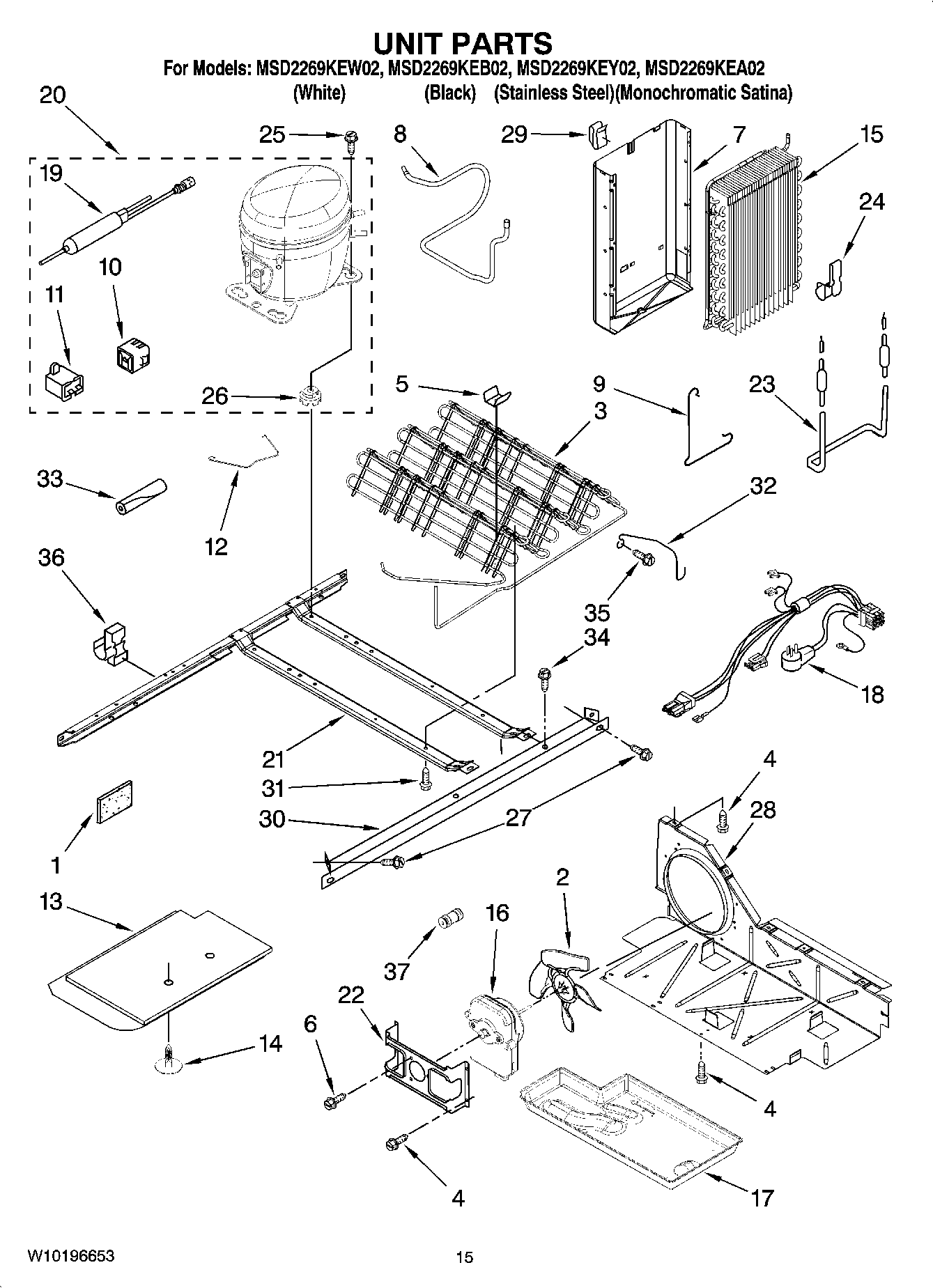

MSD2269KEY02 09 – UNIT PARTSadmin2025-04-26T11:34:44+00:00MSD2269KEY02 09 – UNIT PARTS
Products
| Position | Product |
|---|
| MAY 876764 |
| VALVE, ACCESS (1/4``) |
| Valve, Access (5/16``) |
| VALVE, ACCESS (3/8``) |
| Valve, Access (1/2``) |
| Valve, Access (5/8``) |
| Valve, Access (3/4``) |
| 1 | SEALER, INSULATION |
| 2 | MAY 2225834 |
| 3 | Condenser Assembly (Also Order 7) |
| 4 | Screw (3) |
| 5 | MAY 2216914 |
| 6 | MAY 8533993 |
| 7 | MAY 2217195 |
| 8 | Tube Suction |
| 9 | Clip |
| 10 | Start-Device, Combination (Start Relay and Overload) (Service) |
| 11 | Capacitator (Production) |
| 12 | MAY 2223314 |
| 13 | UNIT COVER BOTTOM |
| 14 | MAY 489396 |
| 15 | MAY 2188822 |
| 16 | MOTOR, CONDENSOR |
| 17 | MAY 1105523 |
| 18 | Unit, Harness |
| 19 | Drier |
| 19 | Drier |
| 20 | Compressor (Includes Items 11, 13, 20, & 21) (Also Order 876765 Tube Kit) |
| 21 | Frame, Unit Mounting |
| 22 | MAY 2181929 |
| 23 | MAY 2323197 |
| 24 | MAY 2304287 |
| 25 | MAY 489373 |
| 26 | Grommet (Production) |
| 26 | MAY 4387558 |
| 27 | MAY 489340 |
| 28 | MAY 2196202 |
| 29 | MAY 2155547 |
| 30 | MAY 2149718 |
| 31 | MAY 8281232 |
| 32 | MAY 2186496 |
| 33 | Sleeve, Pressure Switch Hose |
| 34 | MAY 489427 |
| 35 | MAY 489478 |
| 36 | Clip, Wire |
| 37 | Connector, Water |
