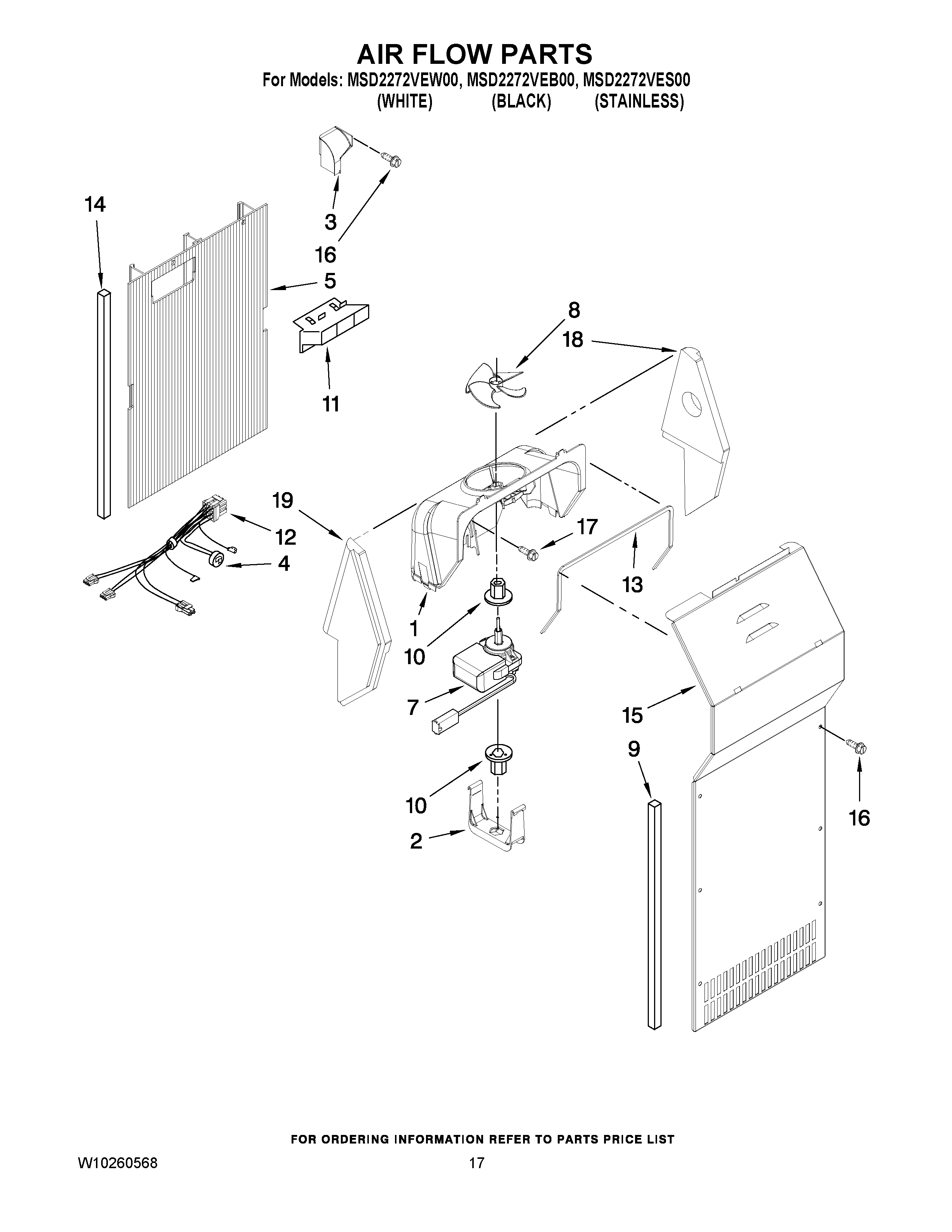

MSD2272VES00 10 – AIR FLOW PARTS

Products

PositionProduct
1SCROLL, FAN
2MAY 2155590
3MAY 2161229
4MAY 2321799
5MAY 2203591
7MAY W10131845
8Blade, Fan (Evaporator)
9Gasket
10GROMMET, MOTOR
11MAY 2182146
12Harness, Fan Evaporator (Includes 4)
13GASKET, SCROLL ASSEMBLY
14MAY 2203876
15Cover, Evaporator (Includes 9)
16MAY 8281159
17MAY 489478
18SUPPORT, FAN SCROLL (RIGHT HAND)
19SUPPORT, FAN SCROLL (LEFT HAND)
