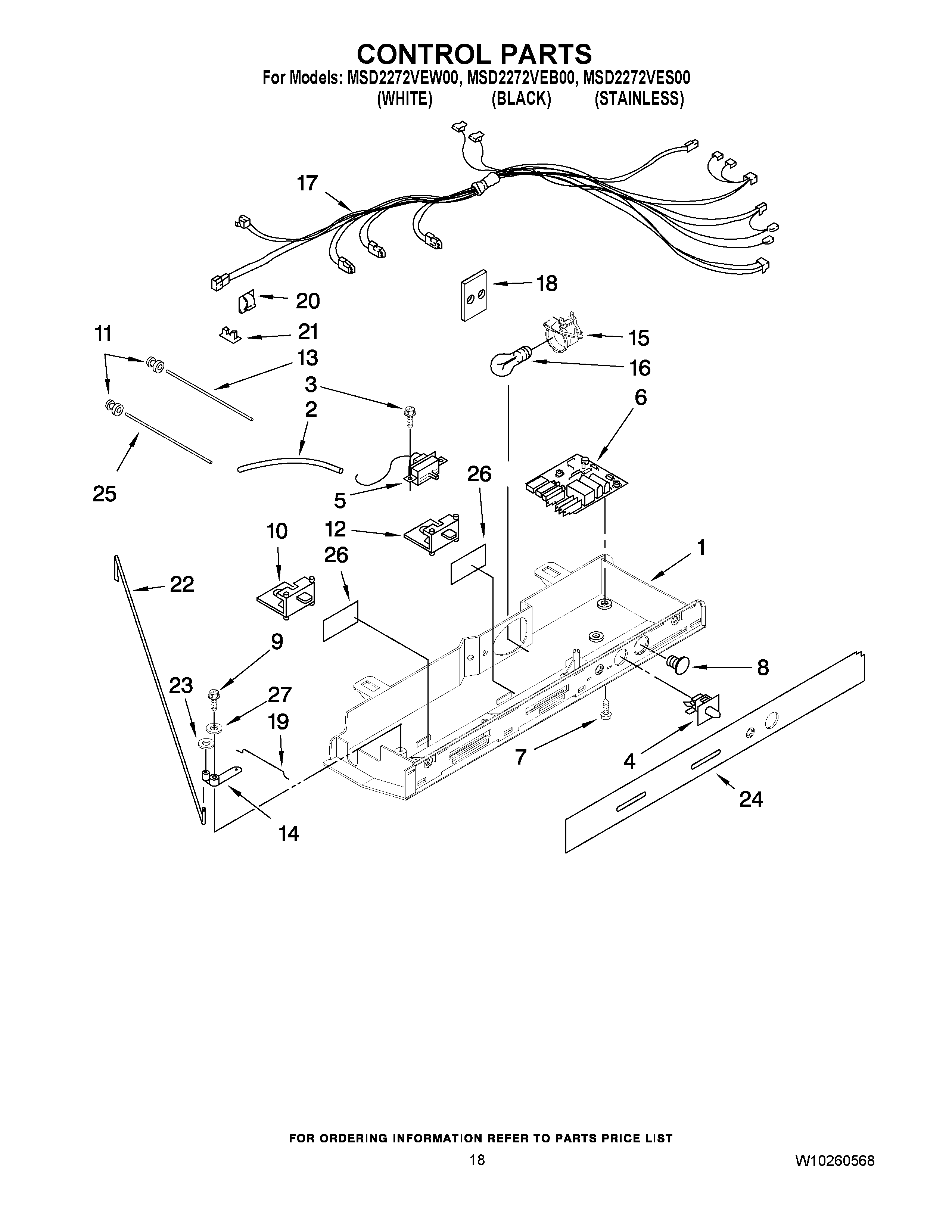

MSD2272VES00 11 – CONTROL PARTS

Products

PositionProduct
1MAY 2311721
2TUBE-BARRIER, THERMOSTAT
3Screw (2)
4MAY 2149705
5Thermostat
6Control Board Assembly
7Screw
8MAY 940014
9MAY 627068
10MAY 2181741
11Grommet, Light Bar (4)
12MAY 2161466
13MAY 2179920
14Pivot Arm
15Socket, Light
16MAY 527949
17MAY 2311632
18MAY 2172931
19CONNECTING ROD, SHORT
20MAY 1115374
21Clip-Wiring
22Connecting Rod
23Fastner, Push-On
24Escutcheon, Control Box
25LIGHT BAR FC
26MAY 2175513
27Spring Washer
