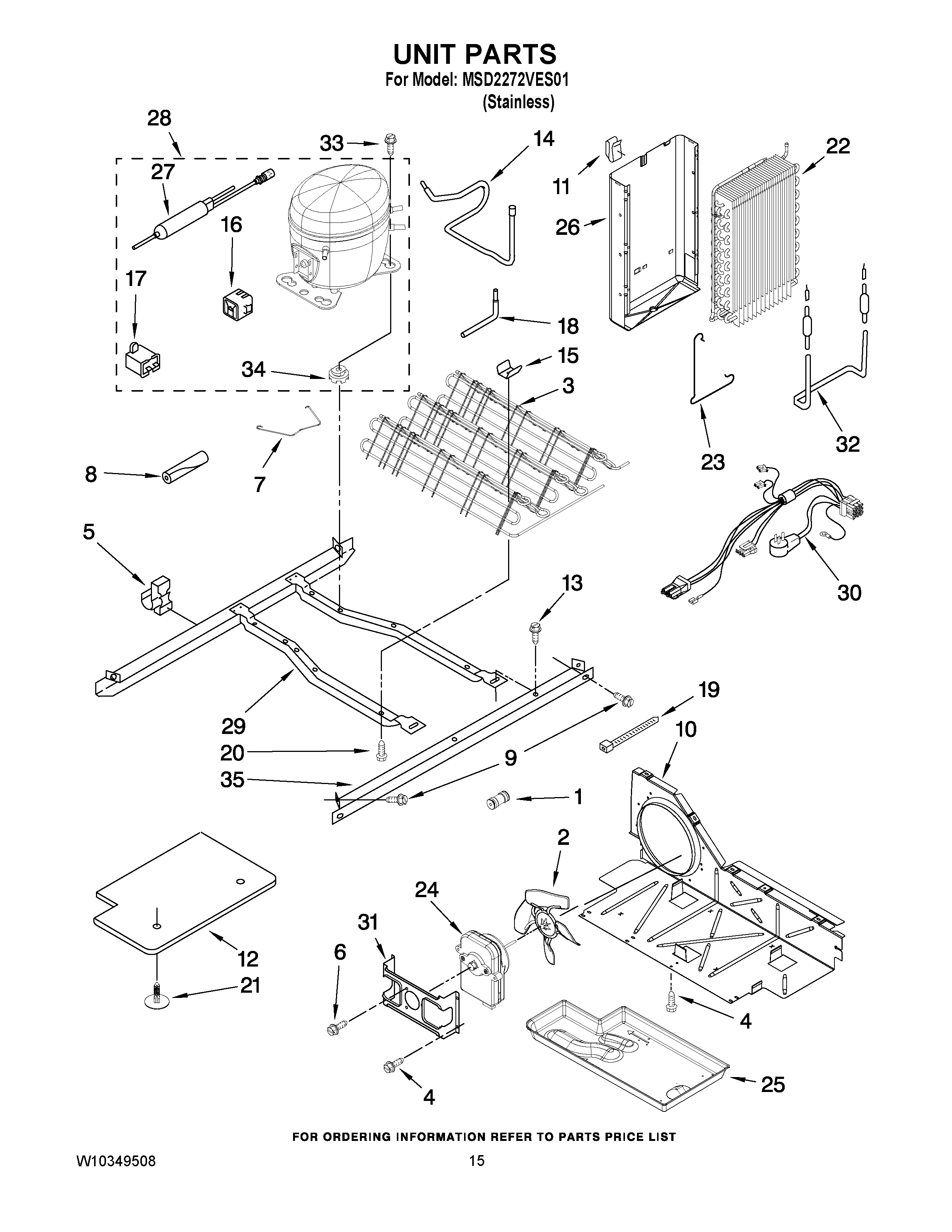

MSD2272VES01 09 – UNIT PARTS

Products

Position	Product
NI	Valve, Access (1/2``)
NI	MAY 876764
NI	VALVE, ACCESS (1/4``)
NI	Valve, Access (5/16``)
NI	VALVE, ACCESS (3/8``)
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (5/8``)
NI	Valve, Access (3/4``)
1	CONNECTOR, WATER
2	MAY 2225834
3	MAY W10222349
4	Screw (3)
5	Clip, Wire
6	MAY 8533993
7	BALE STRAP
8	Sleeve, Pressure Switch Hose
9	MAY 489340
10	MAY W10332806
11	MAY 2155547
12	UNIT COVER BOTTOM
13	MAY 489427
14	MAY 2220642
15	MAY 2311725
16	Start-Device, Combination (Start Relay and Overload) (Production)
17	CAPACITOR
17	CAPACITOR
18	MAY 2325479
19	MAY 2263990
20	MAY 8281232
21	MAY 489396
22	MAY 2188822
23	Clip
24	MAY W10204250
25	MAY 1105523
26	ASSEMBLY, HEAT SHIELD AND DRAIN PAN
27	Drier
27	Drier
28	Compressor (Includes Items 13, 14, 23, & 30)
29	Frame, Unit Mounting
30	HARNESS, UNIT
31	MAY 2181929
32	MAY 2188174
33	MAY 489373
34	Grommet (Production)
34	MAY 2183042
35	MAY W10196323
