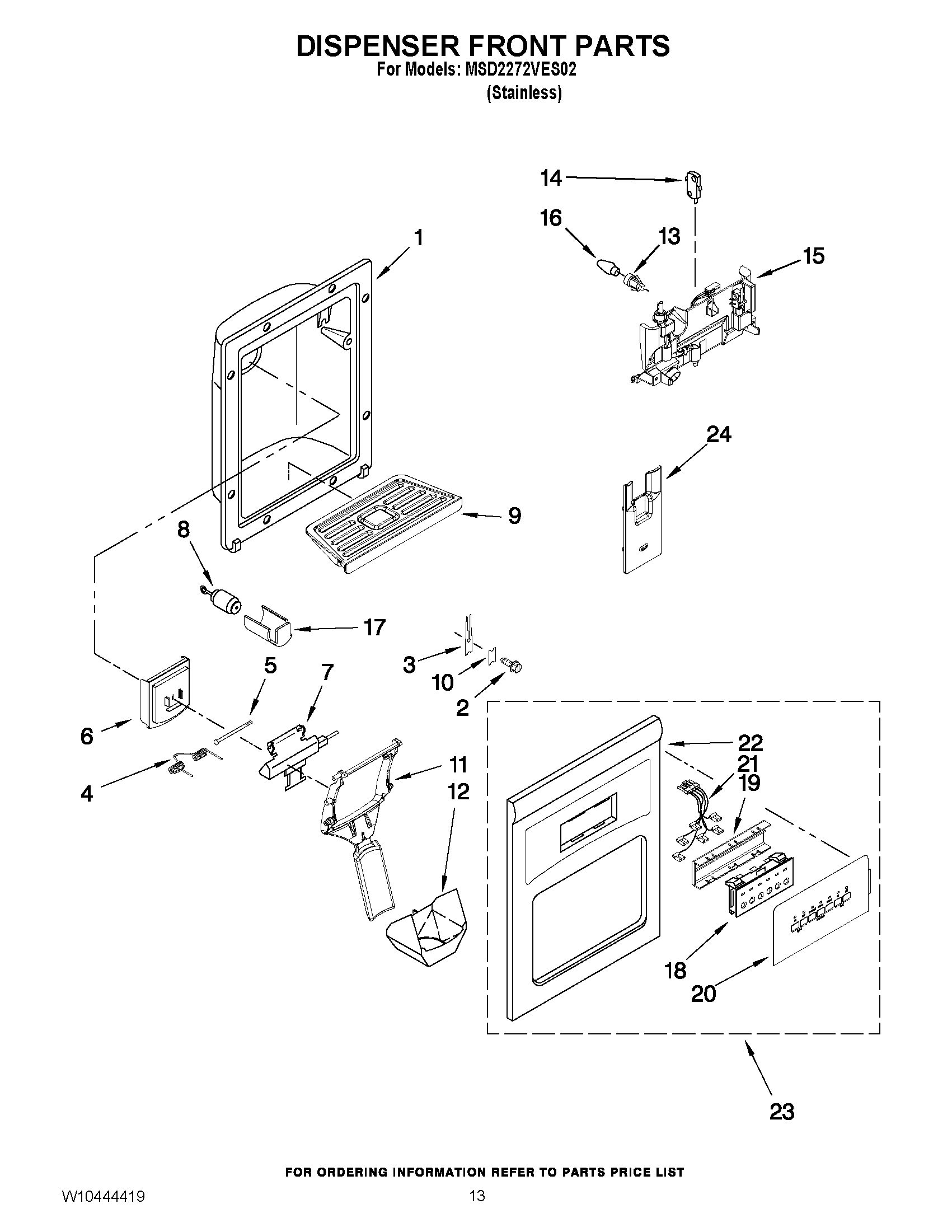

MSD2272VES02 08 – DISPENSER FRONT PARTS

MSD2272VES02 08 – DISPENSER FRONT PARTS

Written by

in

MSD2272VES02 08 – DISPENSER FRONT PARTS

Products

Position	Product
2	MAY 489000
3	MAY 2194719
4	MAY 2304772
5	MAY 2196195
6	MAY 2328019
7	MAY W10144021
8	MAY 2205686
9	Tray Assembly (Black)
10	MAY W10184800
12	MAY W10144020
13	MAY 2180200
14	MAY W10144092
15	MAY W10144016
16	MAY 3406124
17	MAY W10173403
18	MAY W10181070
19	MAY W10180310
22	LINER (NOT A SERVICEABLE PART)
23	MAY W10190585
24	MAY W10191041
