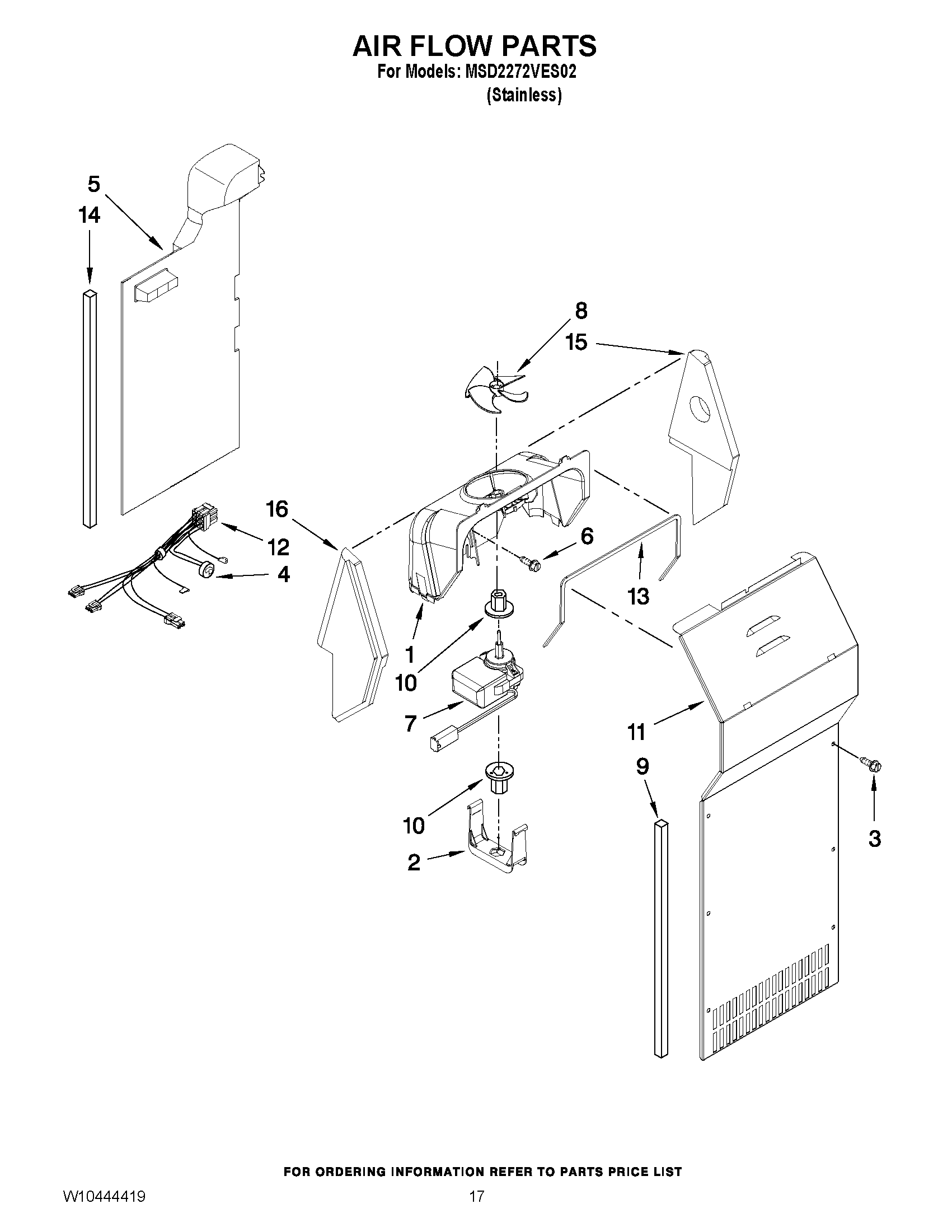

MSD2272VES02 10 – AIR FLOW PARTS

Products

Position	Product
1	SCROLL, FAN
2	MAY 2155590
3	MAY 8281159
4	MAY W10225581
5	MAY W10166220
6	MAY 489478
7	MAY W10131845
8	Blade, Fan (Evaporator)
9	Gasket
10	GROMMET, MOTOR
11	Cover, Evaporator (Includes 9)
12	HARNESS, FAN EVAPORATOR (INCLUDES No.4)
13	GASKET, SCROLL ASSEMBLY
14	MAY W10252476
15	SUPPORT, FAN SCROLL (RIGHT HAND)
16	SUPPORT, FAN SCROLL (LEFT HAND)
