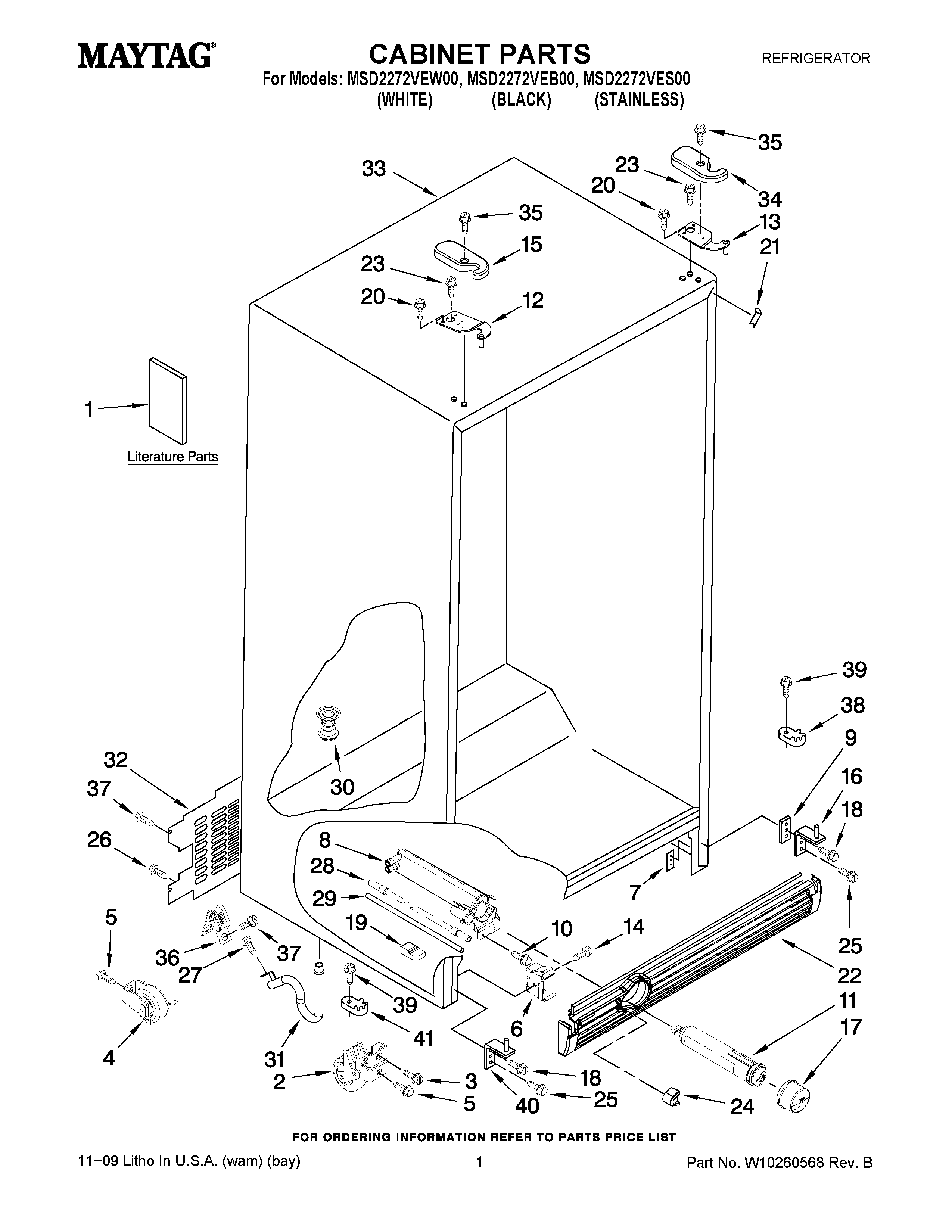

MSD2272VEW00 01 – CABINET PARTS

MSD2272VEW00 01 – CABINET PARTS

Written by

in

MSD2272VEW00 01 – CABINET PARTS

Products

Position	Product
1	MAY W10180407
1	MAY W10214490
1	MAY W10161537
1	MAY 628370
1	MAY W10236116
2	MAY 2174748
3	MAY 3400517
4	MAY 2196236
5	MAY 489427
6	MAY 2155013
7	MAY 2304249
8	Housing, Water Filter
9	Shim (2)
10	MAY 489500
11	MAY 4396841
12	HINGE TOP, FC
13	HINGE TOP RC
14	MAY 488500
15	Hinge Cover (RC) (White)
15	Hinge Cover (RC) (Black)
16	MAY 2217075
17	MAY 2260502B
17	MAY 2260502W
18	Screw (4)
19	Block, Housing Support
20	MAY 3400858
21	Corner Filler (2) (White)
21	MAY 2201017
22	MAY W10197250
22	MAY W10197249
23	MAY 489497
24	Button, Filter (Black)
24	MAY 2260503W
25	MAY 3400103
26	SCREW
27	Screw (3)
28	MAY 2319867
29	Tube, Filter Outlet
30	MAY 2304888
31	MAY 2304937
32	MAY 2188734
33	LINER (NOT A SERVICEABLE PART)
34	Hinge Cover (FC) (Black)
34	Hinge Cover (FC) (White)
35	MAY 8281227
36	MAY 549193
37	MAY 489084
38	MAY 2155311
39	MAY 489483
40	Hinge Bottom (FC)
41	CLOSER, FREEZER DOOR
