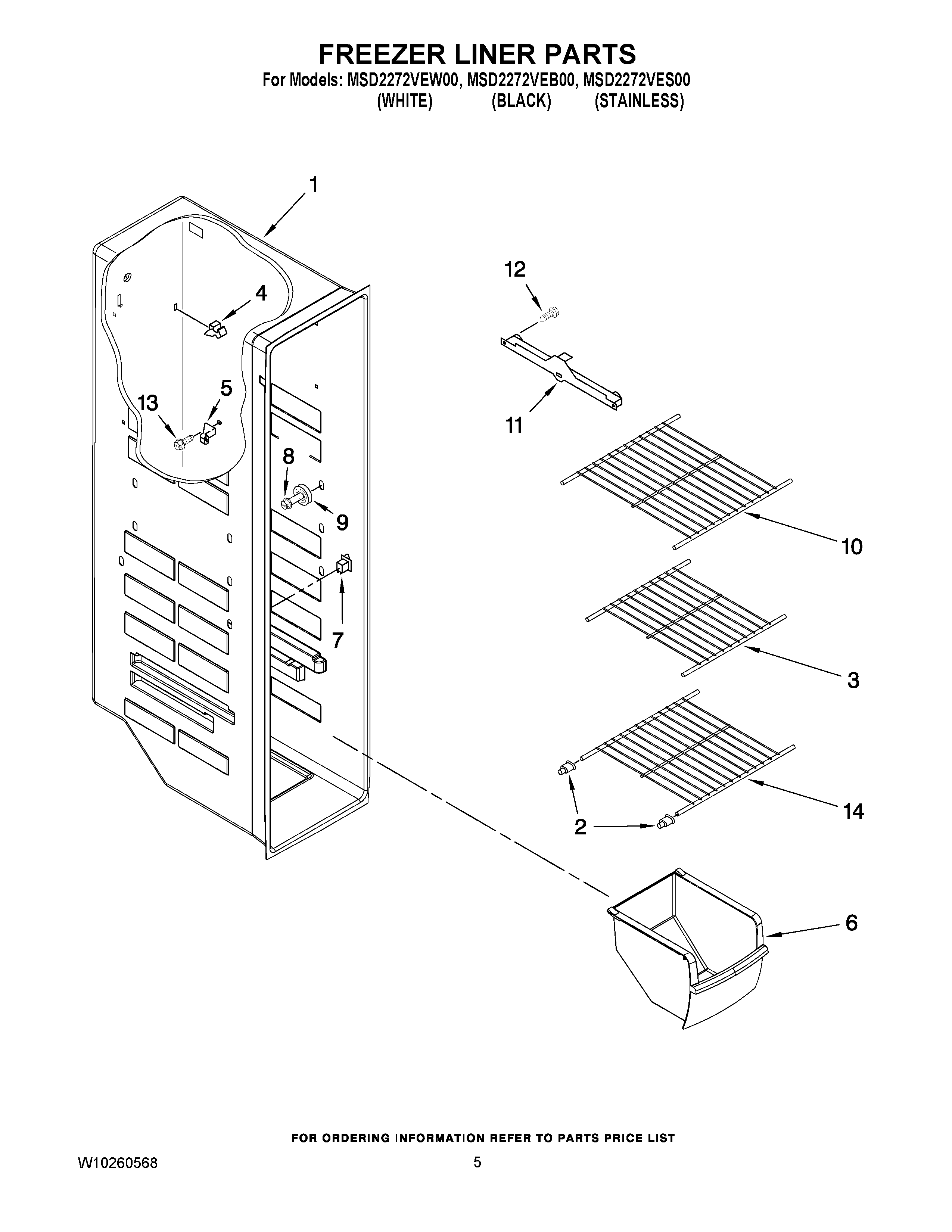

MSD2272VEW00 04 – FREEZER LINER PARTS

MSD2272VEW00 04 – FREEZER LINER PARTS

Written by

in

MSD2272VEW00 04 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	Cup, Shelf Mount
3	Shelf, Wire
4	Clip, Air Duct (2)
5	Support, Stud (4)
6	MAY 2309758
7	Switch, Rocker Arm
8	MAY 8281158
9	MAY 2196483
10	MAY 2309632
11	Slide, Container (Left Side)
11	Slide, Container (Right Side)
12	MAY 489100
13	MAY 3400893
14	Shelf, Wire
