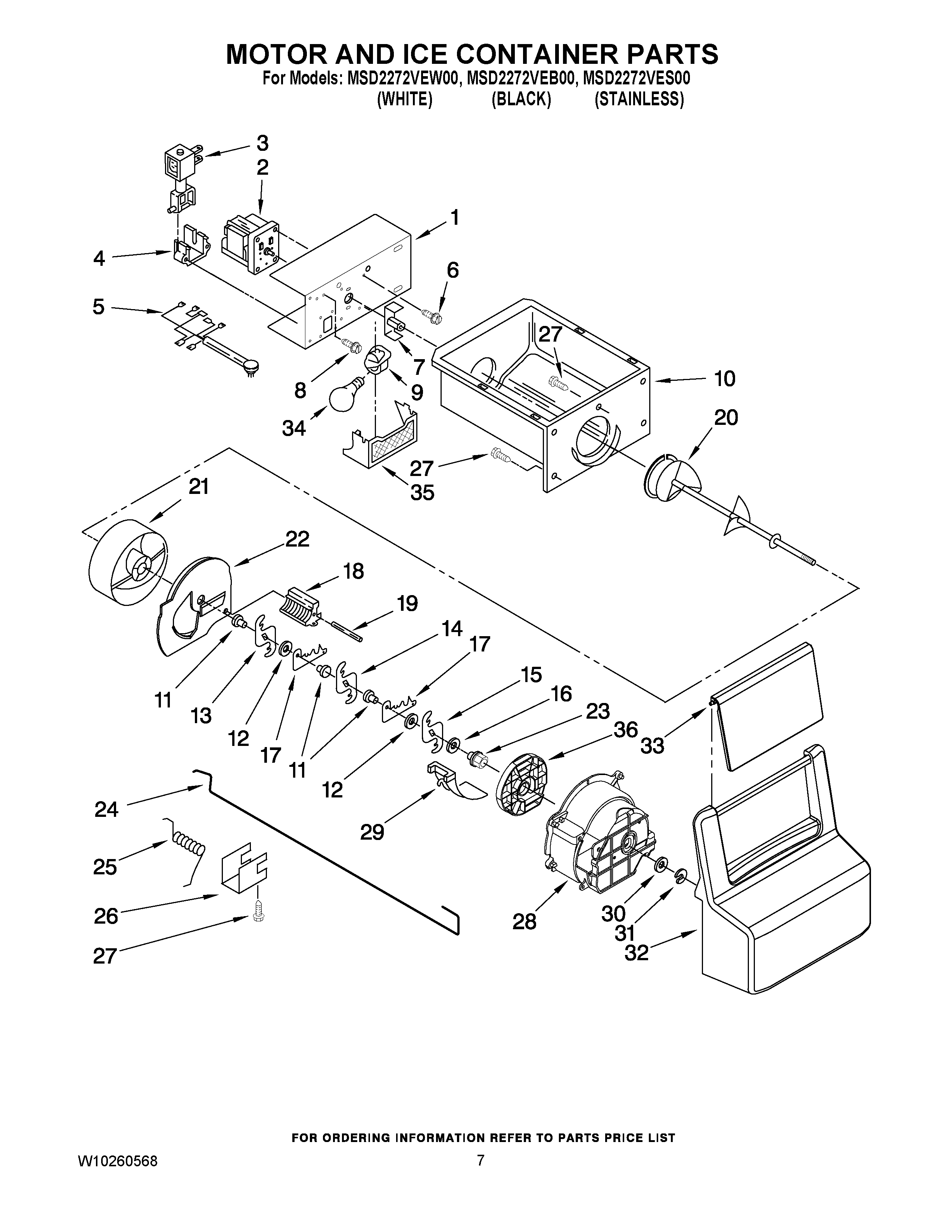

MSD2272VEW00 05 – MOTOR AND ICE CONTAINER PARTS
Written by
in
MSD2272VEW00 05 – MOTOR AND ICE CONTAINER PARTS
Products
Position
Product
1
MAY 2254588
2
MAY W10181208
3
Soleniod Assembly
4
Guide, Soleniod
5
MAY 2325303
6
Screw 8-32 x 5/16
7
MAY W10169511
8
MAY 489478
9
Socket, Light
10
MAY W10138193
11
MAY W10189661
12
MAY W10189658
13
MAY 2257022
14
MAY 2257023
15
MAY 2257024
16
MAY W10189660
17
MAY W10181990
18
MAY W10189708
19
MAY 489229
20
MAY 2196295
21
MAY 2305377
22
MAY 2171682
23
MAY 1119018
24
MAY 2155231
25
MAY 1119020
26
MAY 1119021
27
MAY 488886
28
MAY W10185018
29
MAY 1119017
30
MAY 489234
31
MAY 489236
32
MAY W10189274
33
DOOR, ICE
34
MAY 527949
35
MAY 2171706
36
SPACER – CRUSHER HOUSING
100
MAY W10138196
←
