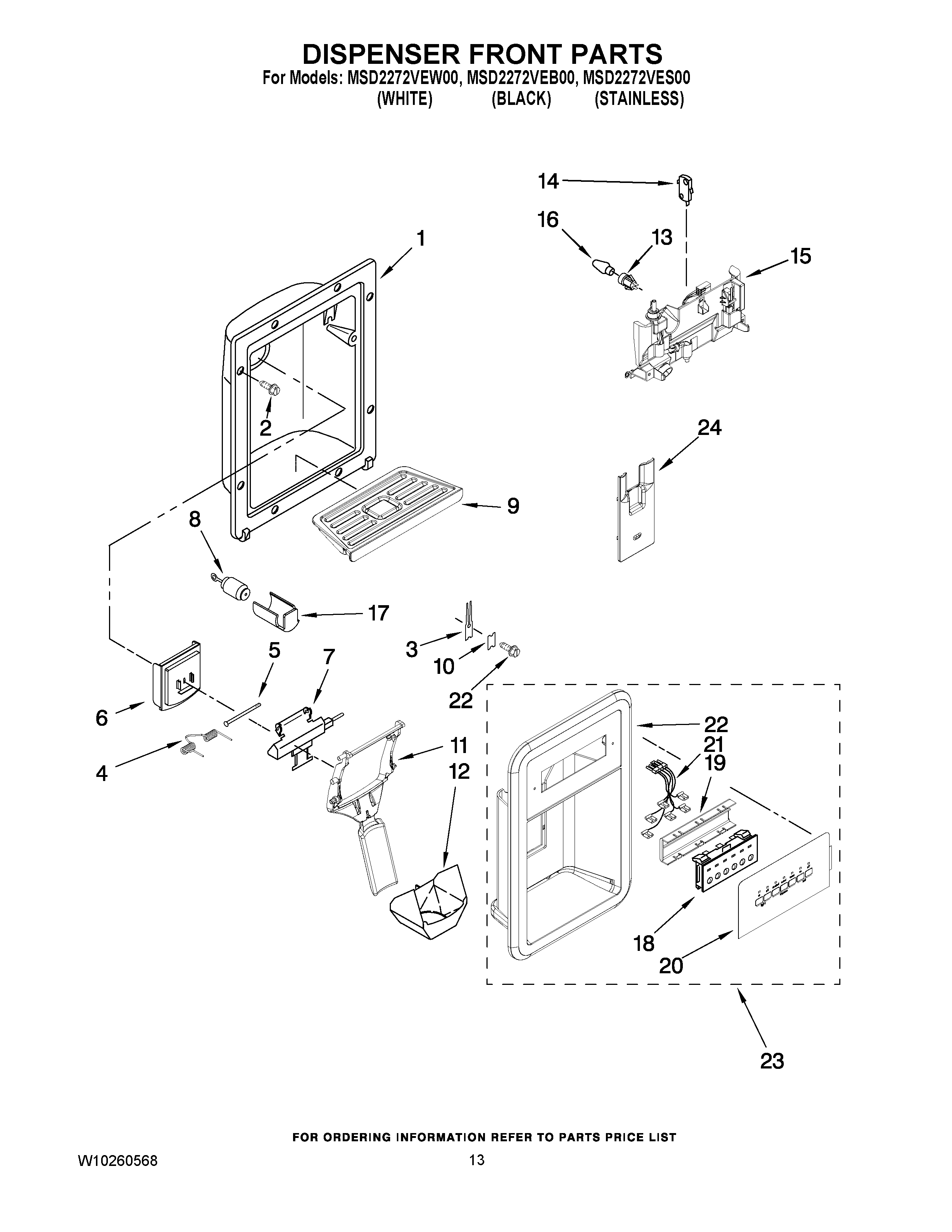

MSD2272VEW00 08 – DISPENSER FRONT PARTS
Written by
in
MSD2272VEW00 08 – DISPENSER FRONT PARTS
Products
Position
Product
2
SCREW
3
MAY 2194719
4
MAY 2304772
5
MAY 2196195
6
MAY 2328019
7
MAY W10144021
8
MAY 2205686
9
Tray Assembly (White)
9
Tray Assembly (Black)
10
MAY 2195051
11
MAY W10144019
11
MAY W10184800
12
MAY W10144020
13
MAY 2180200
14
MAY W10144092
15
MAY W10144016
16
MAY 3406124
17
MAY W10173403
18
MAY W10181070
19
MAY W10180310
22
LINER (NOT A SERVICEABLE PART)
23
MAY W10173402
23
MAY W10190585
24
MAY W10173408
24
MAY W10191041
←
