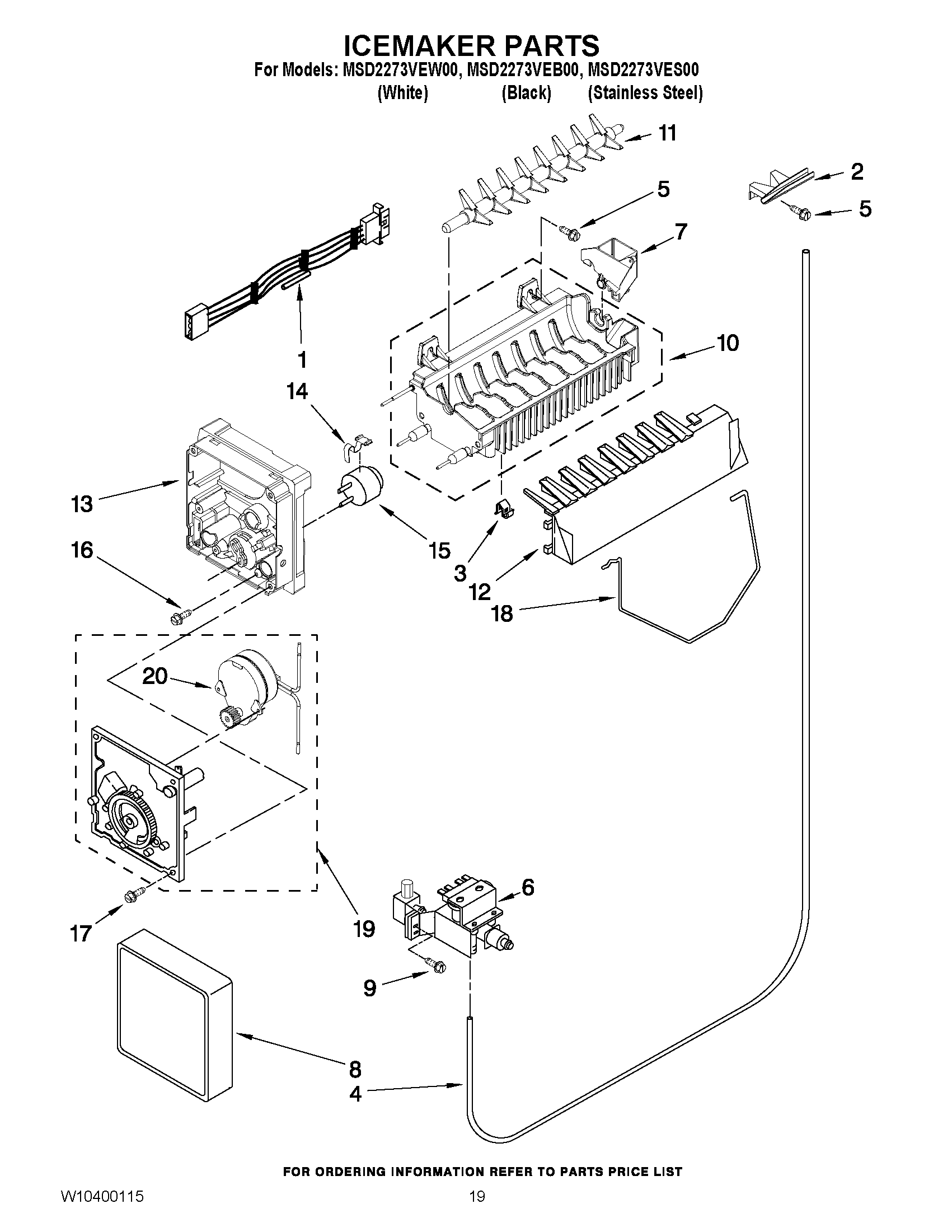

MSD2273VEB00 12 – ICEMAKER PARTS

Products

Position	Product
1	ASSEMBLY, ICE MAKER WIRE
2	MAY 2209774
3	Clip
4	MAY 2304859
5	Screw
6	MAY W10179146
7	MAY W10122561
8	COVER
9	MAY 488649
10	MAY W10136591
11	MAY W10318914
12	ICE STRIPPER
13	Support & Motor Assembly
14	MAY 2315522
15	THERMOSTAT (ALSO ORDER 542369 CEMENT)
16	MAY 8533917
17	MAY 489478
18	MAY 2304354
19	Module Assembly (Includes Items 23 and 24)
20	LINER (NOT A SERVICEABLE PART)
100	MAY W10300022
