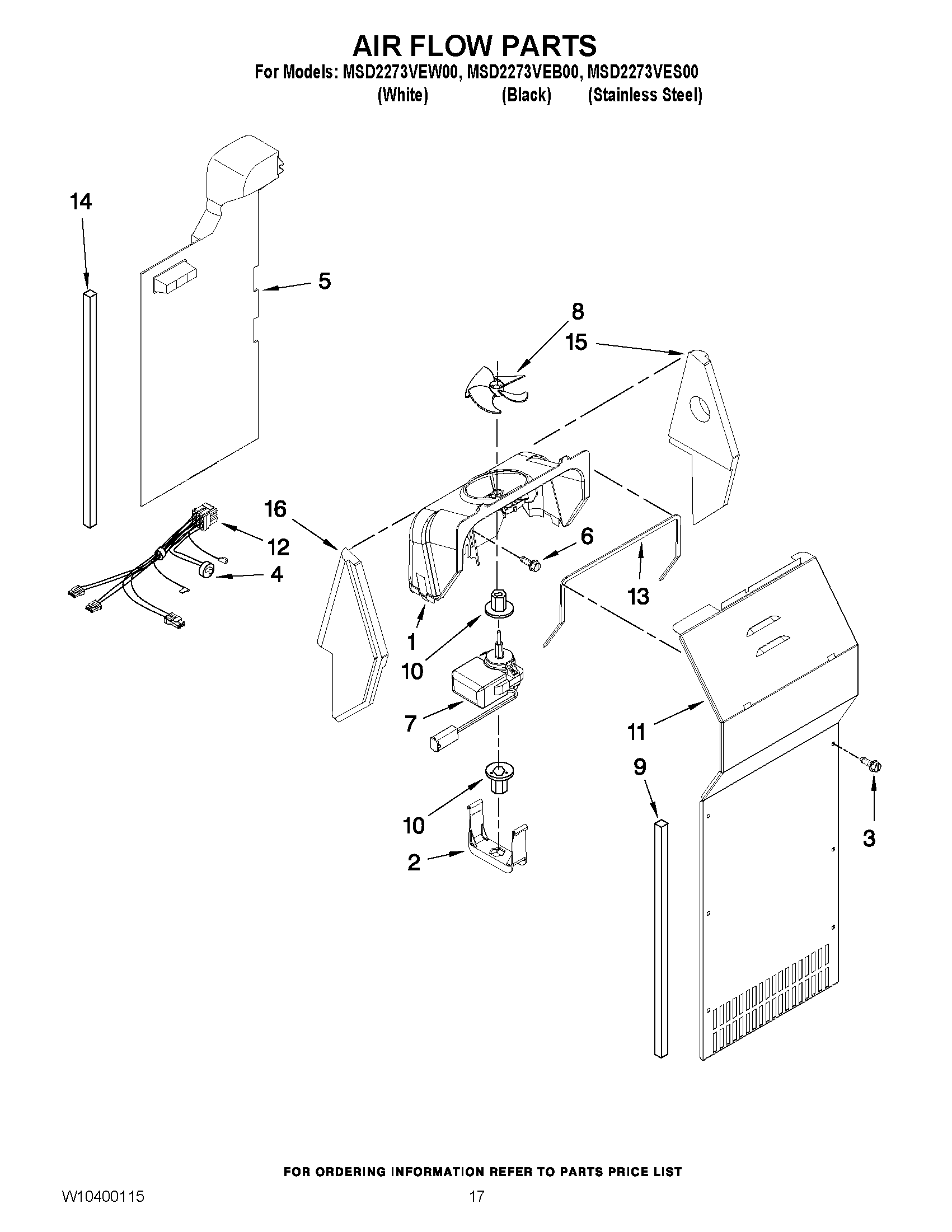

MSD2273VES00 10 – AIR FLOW PARTS

Products

PositionProduct
1SCROLL, FAN
2MAY 2155590
3MAY 8281159
4MAY W10225581
5MAY W10166220
6MAY 489478
7MAY W10131845
8Blade, Fan (Evaporator)
9Gasket
10GROMMET, MOTOR
11Cover, Evaporator (Includes 9)
12HARNESS, FAN EVAPORATOR (INCLUDES No.4)
13GASKET, SCROLL ASSEMBLY
14MAY W10252476
15SUPPORT, FAN SCROLL (RIGHT HAND)
16SUPPORT, FAN SCROLL (LEFT HAND)
