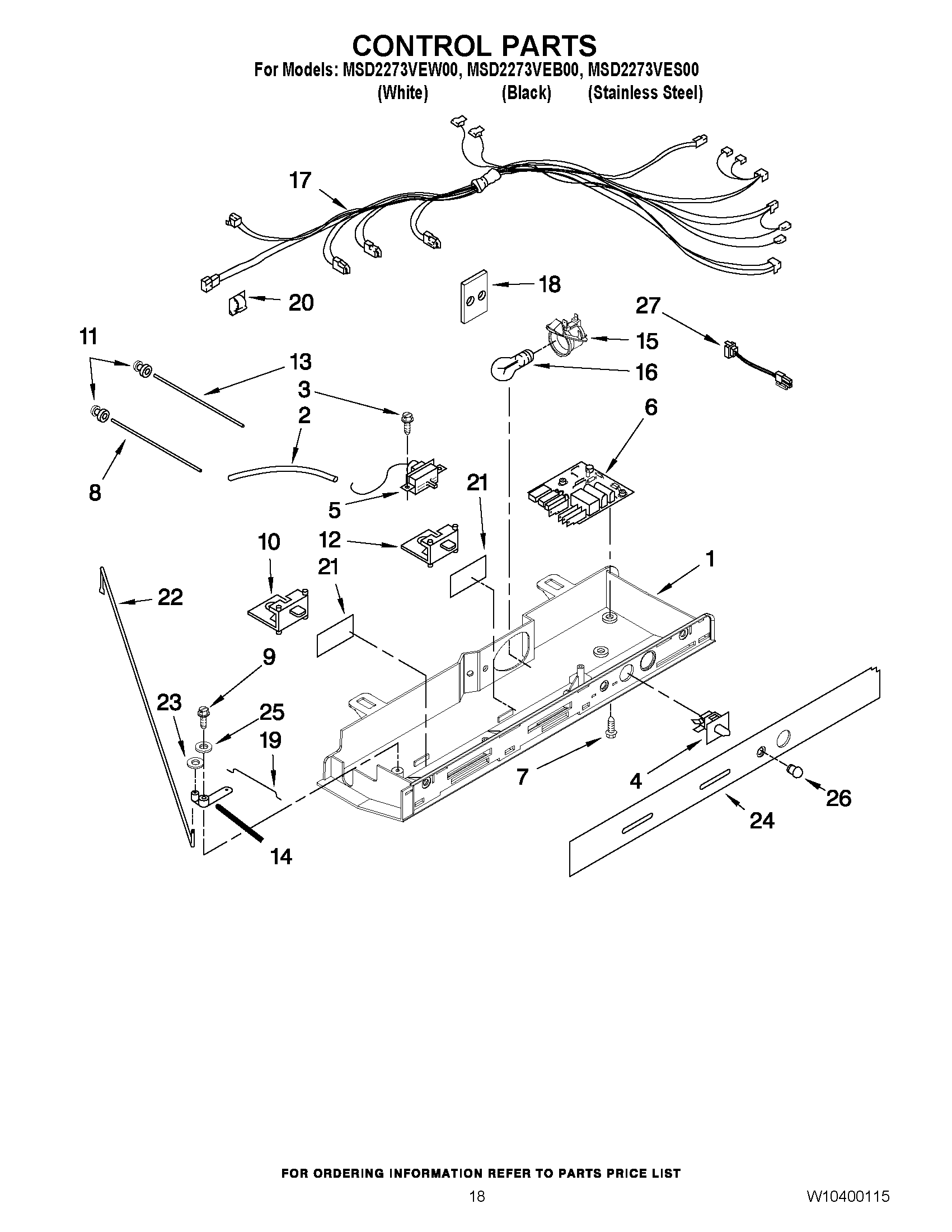

MSD2273VES00 11 – CONTROL PARTS

Products

Position	Product
1	MAY 2311721
2	TUBE-BARRIER, THERMOSTAT
3	Screw (2)
4	MAY 2149705
5	Thermostat
6	CONTROL BOARD ASSEMBLY - DEFROST
7	Screw
8	LIGHT BAR FC
9	MAY 627068
10	MAY 2181741
11	Grommet, Light Bar (4)
12	MAY 2161466
13	MAY 2179920
14	Pivot Arm
15	Socket, Light
16	MAY 527949
17	MAY 2311632
18	MAY 2172931
19	CONNECTING ROD, SHORT
20	MAY 1115374
21	MAY 2175513
22	Connecting Rod
23	Fastner, Push-On
24	MAY W10242640
25	Spring Washer
26	LENS, LIGHT
27	LED LIGHT ASSEMBLY
