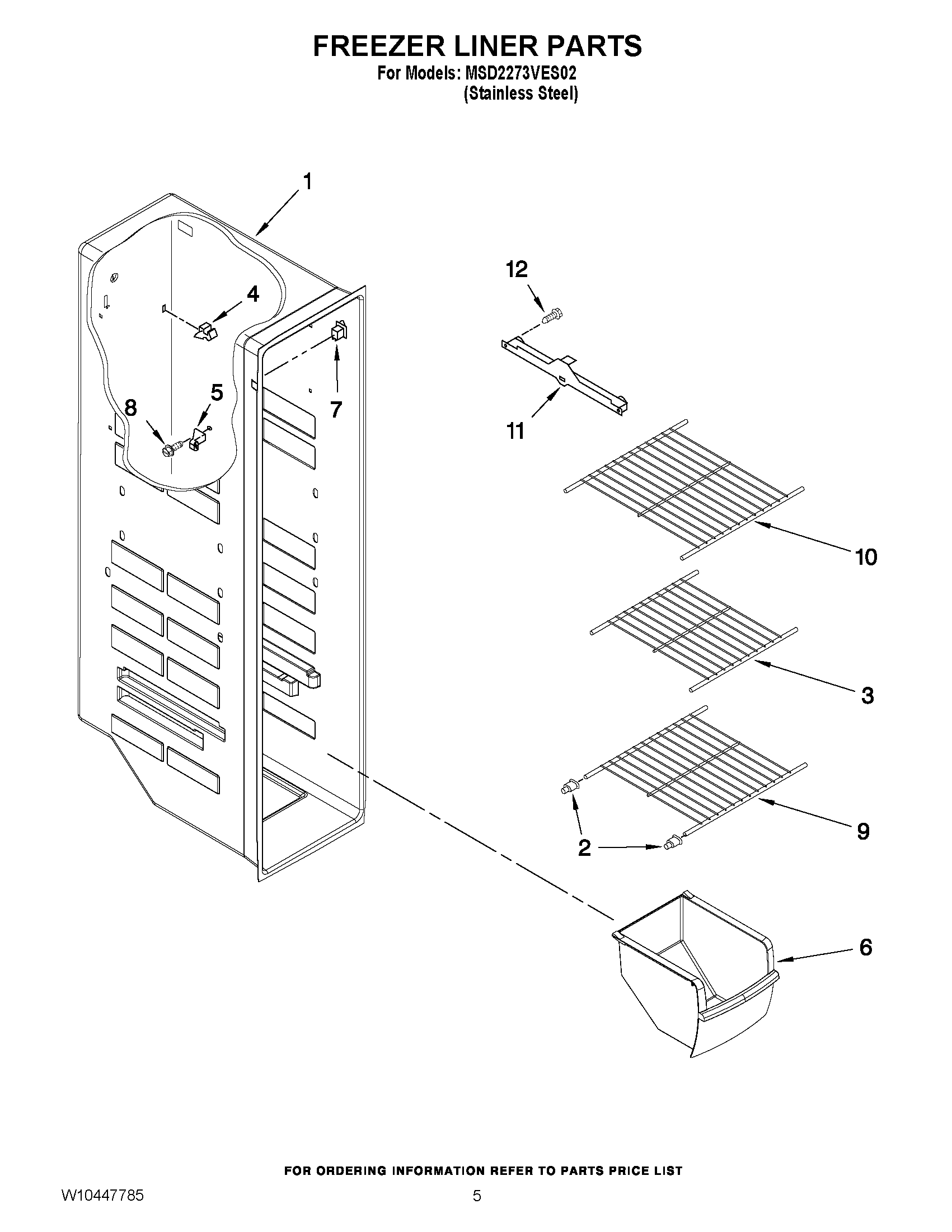

MSD2273VES02 04 – FREEZER LINER PARTS

MSD2273VES02 04 – FREEZER LINER PARTS

Written by

in

MSD2273VES02 04 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2Cup, Shelf Mount
3MAY W10318952
4MAY 2315163
5Support, Stud (4)
6MAY 2309758
7Switch, Rocker Arm
8MAY 3400893
9MAY W10318953
10MAY W10318951
11Slide, Container (Left Side)
11Slide, Container (Right Side)
12MAY 489100
