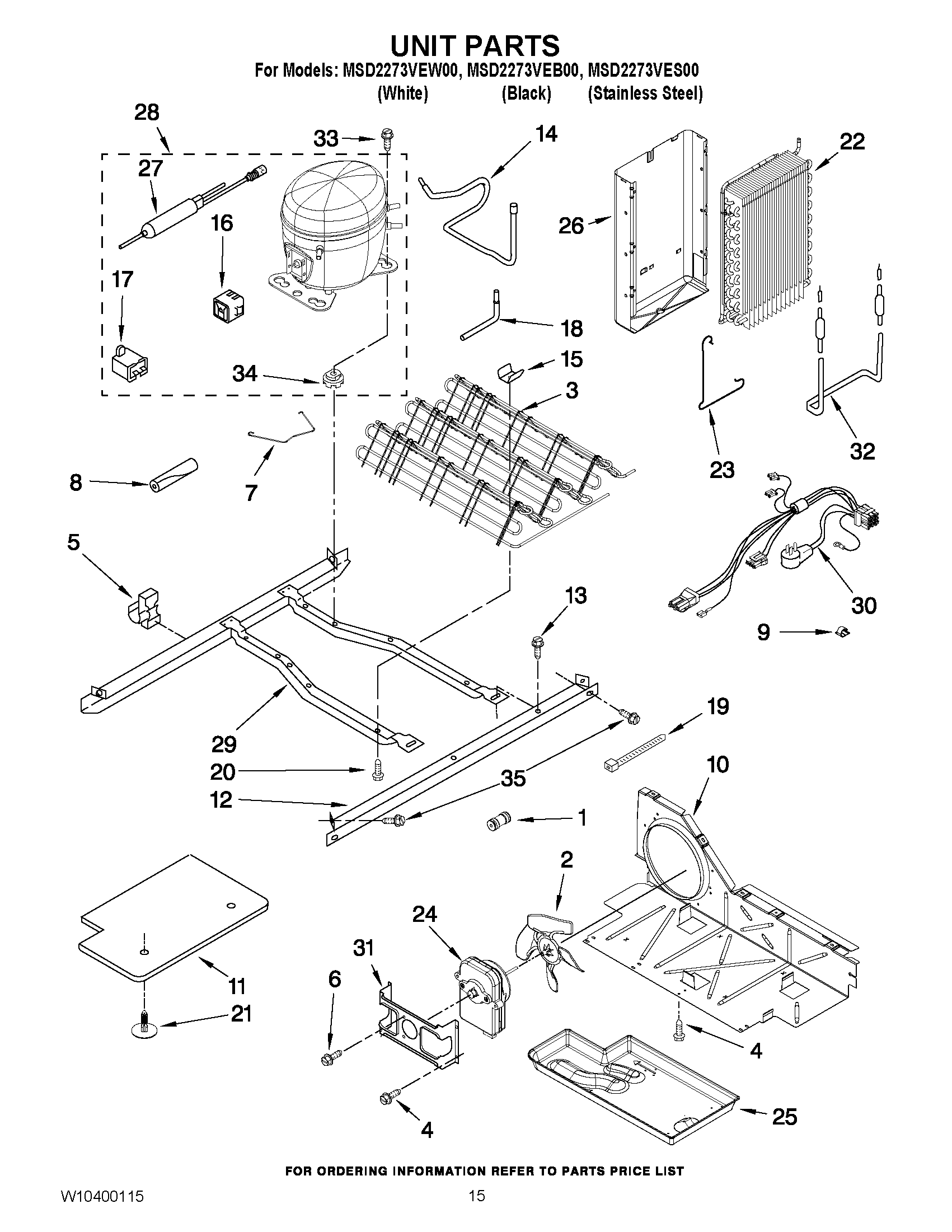

MSD2273VEW00 09 – UNIT PARTSadmin2025-04-26T13:08:59+00:00MSD2273VEW00 09 – UNIT PARTS
Products
| Position | Product |
|---|
| NI | Valve, Access (1/2``) |
| NI | MAY 876764 |
| NI | VALVE, ACCESS (1/4``) |
| NI | Valve, Access (5/16``) |
| NI | VALVE, ACCESS (3/8``) |
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | Valve, Access (5/8``) |
| NI | Valve, Access (3/4``) |
| 1 | CONNECTOR, WATER |
| 2 | Fan, Blade |
| 3 | MAY W10222349 |
| 4 | Screw (3) |
| 5 | Clip, Wire |
| 6 | MAY 8533993 |
| 7 | MAY W10174384 |
| 8 | Sleeve, Pressure Switch Hose |
| 9 | MAY 1115374 |
| 10 | MAY W10332806 |
| 11 | UNIT COVER BOTTOM |
| 12 | RAIL, UNIT MOUNTING |
| 14 | MAY 2220642 |
| 15 | MAY 2311725 |
| 16 | Start-Device, Combination (Start Relay and Overload) (Production) |
| 17 | CAPACITOR |
| 17 | CAPACITOR |
| 18 | MAY 2325479 |
| 19 | MAY 2263990 |
| 20 | MAY 8281232 |
| 21 | MAY 489396 |
| 22 | MAY 2188822 |
| 23 | Clip |
| 24 | MOTOR, CONDENSOR |
| 25 | MAY 1105523 |
| 26 | ASSEMBLY, HEAT SHIELD AND DRAIN PAN |
| 27 | Drier |
| 27 | Drier |
| 28 | Compressor (Includes Items 13, 14, 23, & 30) |
| 29 | Frame, Unit Mounting |
| 30 | MAY W10309395 |
| 31 | MAY 2181929 |
| 32 | MAY 2188174 |
| 33 | MAY 489373 |
| 34 | MAY 2183042 |
| 34 | Grommet (Production) |
| 35 | MAY 489427 |
