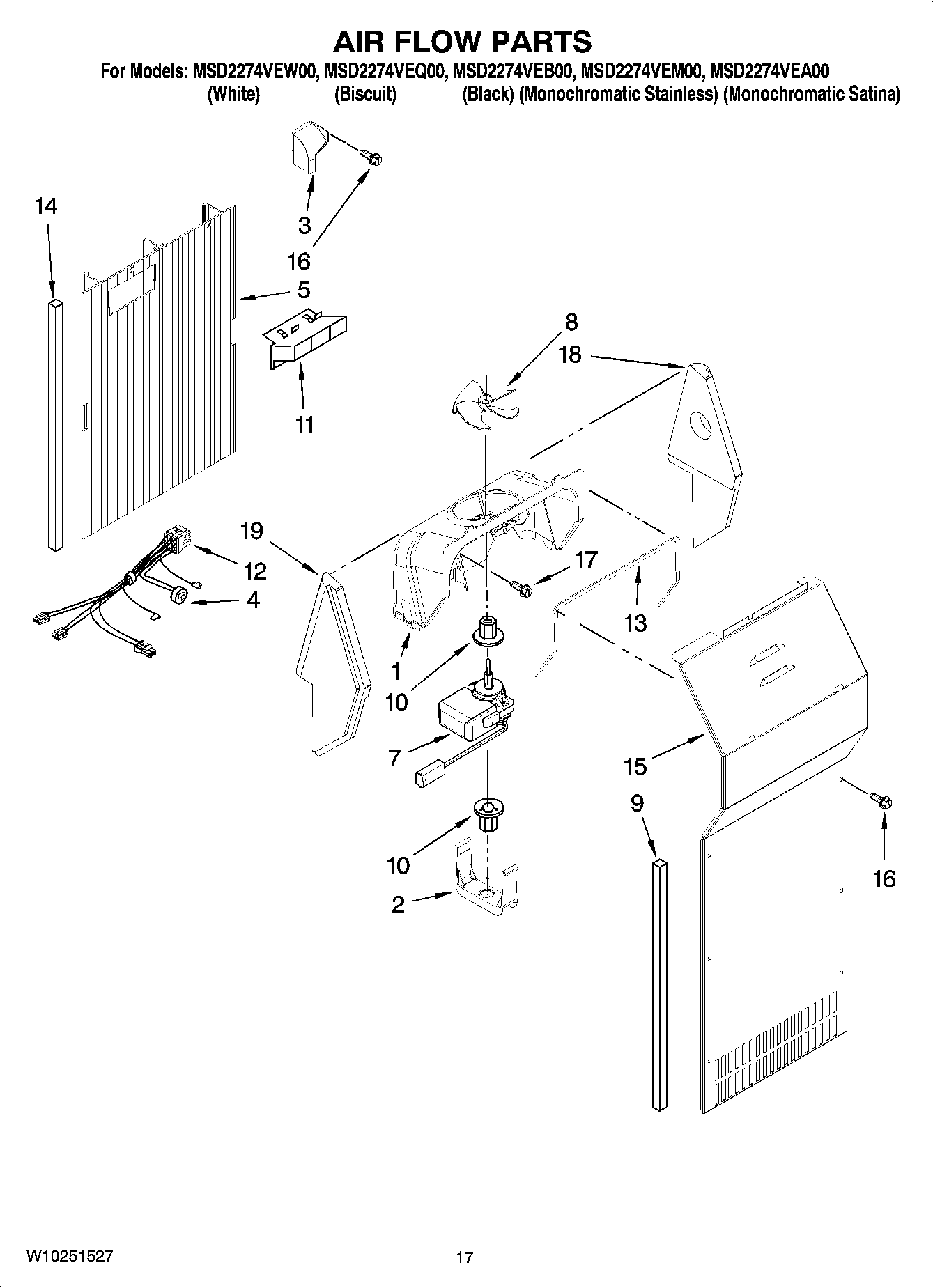

MSD2274VEB00 10 – AIR FLOW PARTS

Products

Position	Product
1	SCROLL, FAN
2	MAY 2155590
3	MAY 2161229
4	MAY 2321799
5	MAY 2203591
7	MAY 2315549
8	Blade, Fan (Evaporator)
9	Gasket
10	GROMMET, MOTOR
11	MAY 2182146
12	Harness, Fan Evaporator (Includes 4)
13	GASKET, SCROLL ASSEMBLY
14	MAY 2203875
15	Cover, Evaporator (Includes 9)
16	MAY 8281159
17	MAY 489478
18	SUPPORT, FAN SCROLL (RIGHT HAND)
19	SUPPORT, FAN SCROLL (LEFT HAND)
